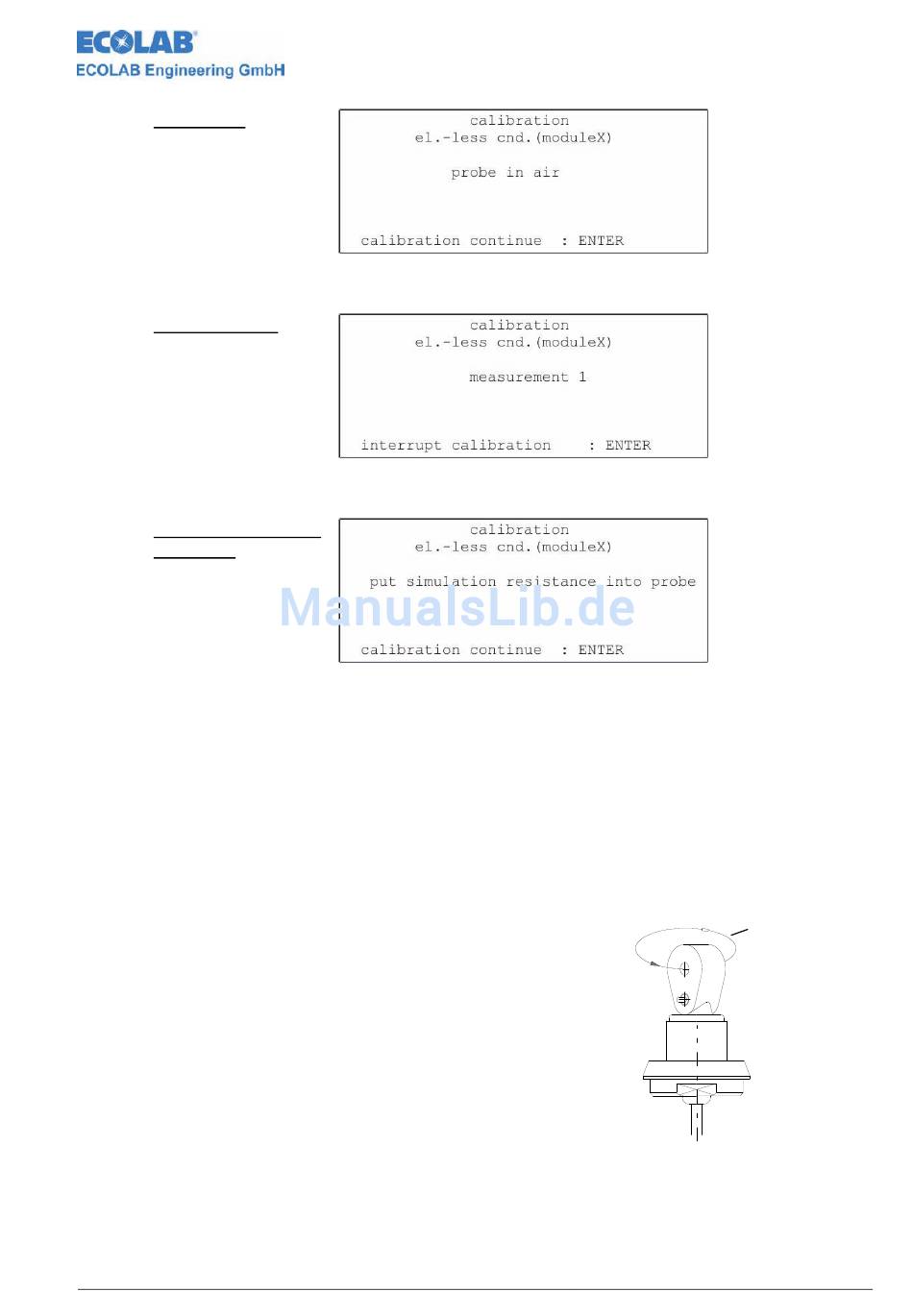

Probe in air
The measuring probe must now be placed outside of a conductive environment. Once this
has been ensured, the calibration can be continued through selecting ENTER.
Measurement 1
Measurement 1 takes place automatically and continues until the measurement range is
stable.
Introduce simulation
resistance
The measuring range dependent simulation resistance can now be put into the measuring
probe.
The value of the resistance depends on the measuring range:
Measuring range
0 .. 2 mS
0 .. 2 mS
0 .. 20 mS
0 .. 200 mS
0 .. 2 000 mS
The calibration can now be continued through selecting ENTER.
The loop resistance is to be introduced as follows:
417101800_Anhang01_LF_induktiv.doc
Conductivity Measuring Module (electrodeless)
Resistance
3 570.00 Ω
shielded probe
3 450.00 Ω
345.00 Ω
34.50 Ω
3.45 Ω
- 51 -
Loop resistance
Abb. 4.1
