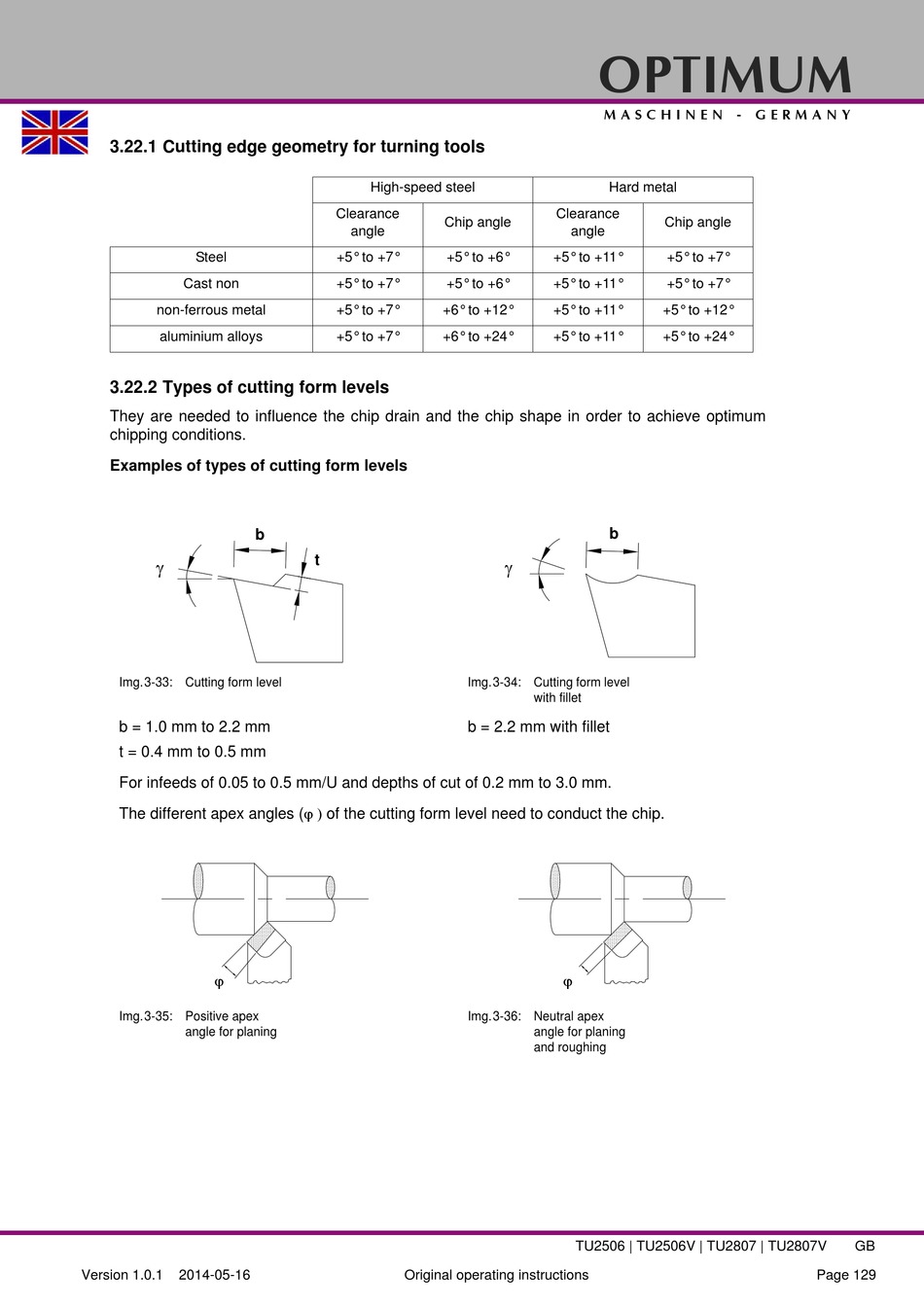

3.22.1 Cutting edge geometry for turning tools

Steel
Cast non
non-ferrous metal
aluminium alloys

3.22.2 Types of cutting form levels

They are needed to influence the chip drain and the chip shape in order to achieve optimum
chipping conditions.
Examples of types of cutting form levels
b

Img.3-33: Cutting form level
b = 1.0 mm to 2.2 mm
t = 0.4 mm to 0.5 mm
For infeeds of 0.05 to 0.5 mm/U and depths of cut of 0.2 mm to 3.0 mm.
The different apex angles ( of the cutting form level need to conduct the chip.

Img.3-35: Positive apex
angle for planing
Version 1.0.1 2014-05-16
High-speed steel
Clearance
Chip angle
angle
+5° to +7° +5° to +6°
+5° to +7° +5° to +6°
+5° to +7° +6° to +12°
+5° to +7° +6° to +24°
t
Img.3-34: Cutting form level
b = 2.2 mm with fillet
Img.3-36: Neutral apex
Original operating instructions
OPTIMUM
M A S C H I N E N - G E R M A N Y
Hard metal
Clearance
Chip angle
angle
+5° to +11° +5° to +7°
+5° to +11° +5° to +7°
+5° to +11° +5° to +12°
+5° to +11° +5° to +24°
b

with fillet

angle for planing
and roughing
