3.5

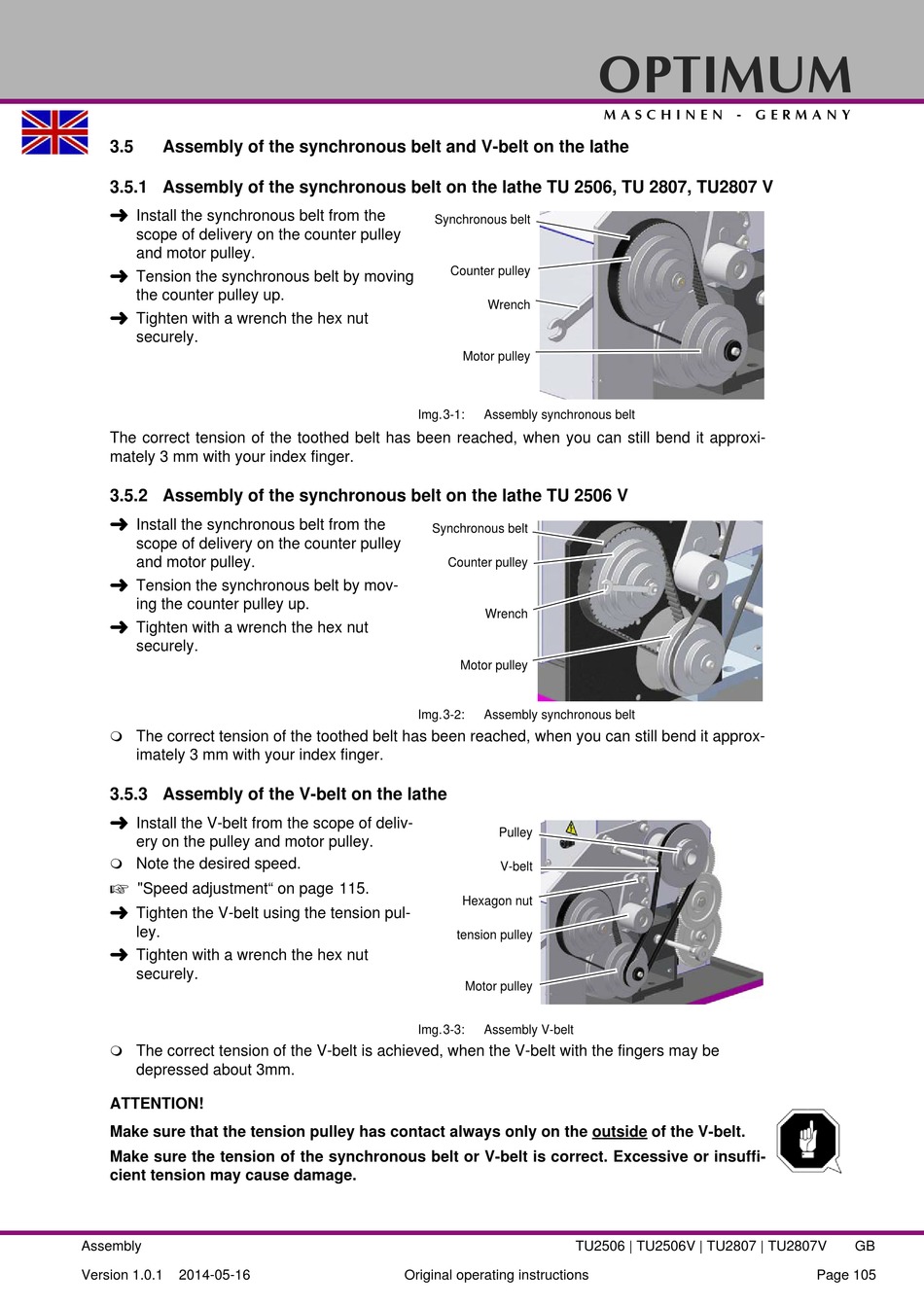

Assembly of the synchronous belt and V-belt on the lathe

3.5.1 Assembly of the synchronous belt on the lathe TU 2506, TU 2807, TU2807 V


Install the synchronous belt from the
scope of delivery on the counter pulley
and motor pulley.

Tension the synchronous belt by moving
the counter pulley up.

Tighten with a wrench the hex nut
securely.
The correct tension of the toothed belt has been reached, when you can still bend it approxi-
mately 3 mm with your index finger.

3.5.2 Assembly of the synchronous belt on the lathe TU 2506 V


Install the synchronous belt from the
scope of delivery on the counter pulley
and motor pulley.

Tension the synchronous belt by mov-
ing the counter pulley up.

Tighten with a wrench the hex nut
securely.

The correct tension of the toothed belt has been reached, when you can still bend it approx-
imately 3 mm with your index finger.

3.5.3 Assembly of the V-belt on the lathe


Install the V-belt from the scope of deliv-
ery on the pulley and motor pulley.

Note the desired speed.

"Speed adjustment" on page 115.

Tighten the V-belt using the tension pul-
ley.

Tighten with a wrench the hex nut
securely.

The correct tension of the V-belt is achieved, when the V-belt with the fingers may be
depressed about 3mm.
ATTENTION!
Make sure that the tension pulley has contact always only on the outside of the V-belt.
Make sure the tension of the synchronous belt or V-belt is correct. Excessive or insuffi-
cient tension may cause damage.
Assembly
Version 1.0.1 2014-05-16
Synchronous belt
Counter pulley
Wrench
Motor pulley
Img.3-1: Assembly synchronous belt
Synchronous belt
Counter pulley
Wrench
Motor pulley
Img.3-2: Assembly synchronous belt
Pulley
V-belt
Hexagon nut
tension pulley
Motor pulley
Img.3-3: Assembly V-belt
