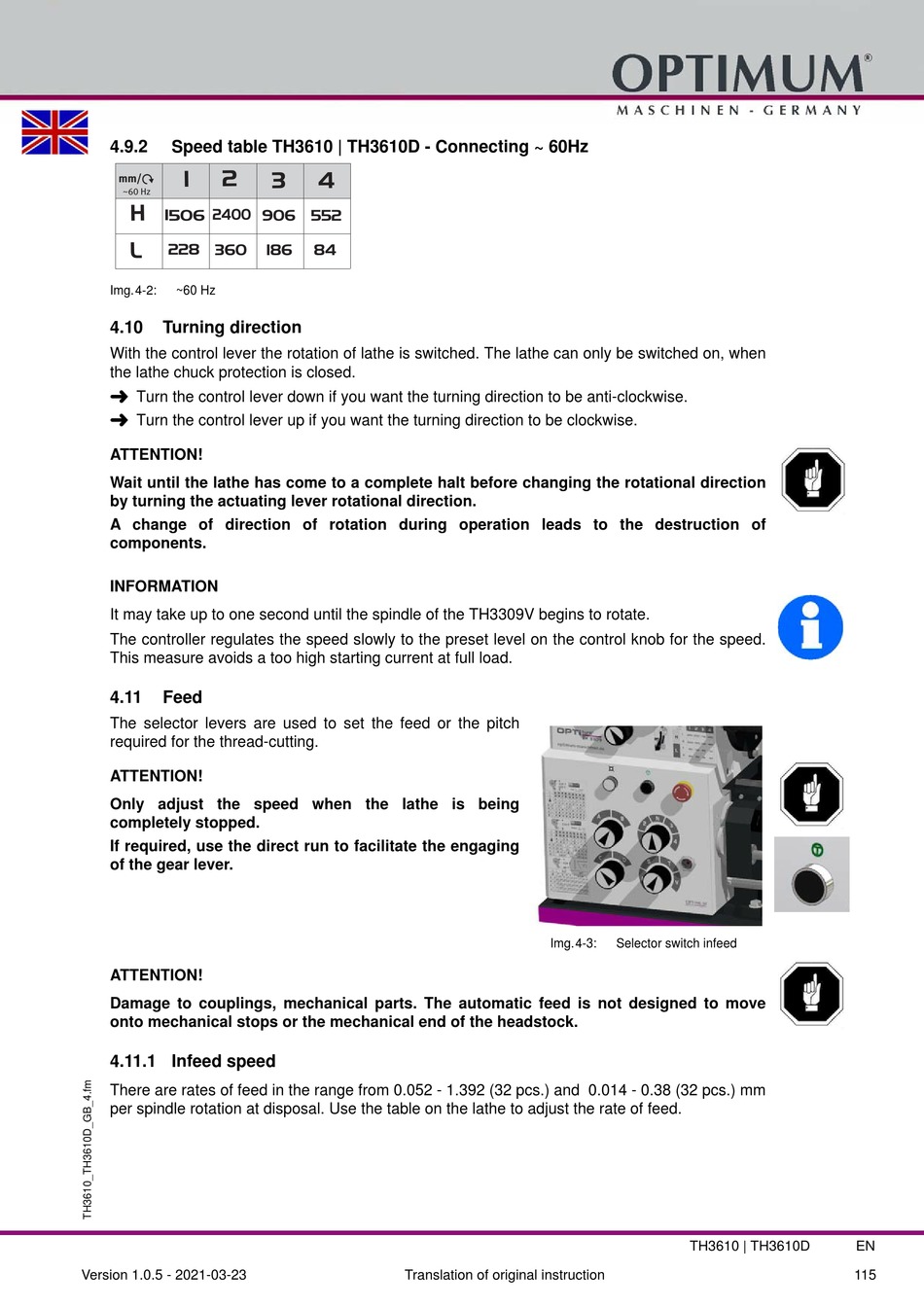

Speed Table Th3610 | Th3610D - Connecting ~ 60Hz; Turning Direction; Feed; Infeed Speed - Optimum optiturn TH 3610 Betriebsanleitung

4.9.2

Speed table TH3610 | TH3610D - Connecting ~ 60Hz

Img.4-2: ~60 Hz
4.10

Turning direction

With the control lever the rotation of lathe is switched. The lathe can only be switched on, when
the lathe chuck protection is closed.

Turn the control lever down if you want the turning direction to be anti-clockwise.

Turn the control lever up if you want the turning direction to be clockwise.
ATTENTION!
Wait until the lathe has come to a complete halt before changing the rotational direction
by turning the actuating lever rotational direction.
A change of direction of rotation during operation leads to the destruction of
components.
INFORMATION
It may take up to one second until the spindle of the TH3309V begins to rotate.
The controller regulates the speed slowly to the preset level on the control knob for the speed.
This measure avoids a too high starting current at full load.
4.11

Feed

The selector levers are used to set the feed or the pitch
required for the thread-cutting.
ATTENTION!
Only adjust the speed when the lathe is being
completely stopped.
If required, use the direct run to facilitate the engaging
of the gear lever.
ATTENTION!
Damage to couplings, mechanical parts. The automatic feed is not designed to move
onto mechanical stops or the mechanical end of the headstock.

4.11.1 Infeed speed

There are rates of feed in the range from 0.052 - 1.392 (32 pcs.) and 0.014 - 0.38 (32 pcs.) mm
per spindle rotation at disposal. Use the table on the lathe to adjust the rate of feed.
Version 1.0.5 - 2021-03-23
Img.4-3:
Translation of original instruction
Selector switch infeed
TH3610 | TH3610D EN
115
