EMERGENCY-STOP button

The EMERGENCY-STOP
switches the lathe off.
Knocking on the emergency stop device
triggers an emergency stop.
After actuating the switch, turn it to the
right, in order to restart the lathe.

1.9.1 Lockable main switch (only TU 2506V, TU2807V)

In the position "0", the lockable main
switch can be secured against accidental
or non-authorized switching-on by means
of a padlock.
When the main switch is switched off, the
power supply to the machine is com-
pletely interrupted.

1.9.2 Protective cover with safety switch

The headstock of the lathe is equipped
with a fixed, separating protective cover.
The locked position is monitored by
means of an electrical limit switch.
INFORMATION
It is not possible to start the machine until
the protective cover is closed.
GB TU2506 | TU2506V | TU2807 | TU2807V
Page 90
button
EMERGENCY-
STOP button
TU 2506,
TU 2807
EMERGENCY-
STOP button
TU 2506 V,
TU 2807 V
Main switch
integrated
Position switch
Protective cover
Original operating instructions

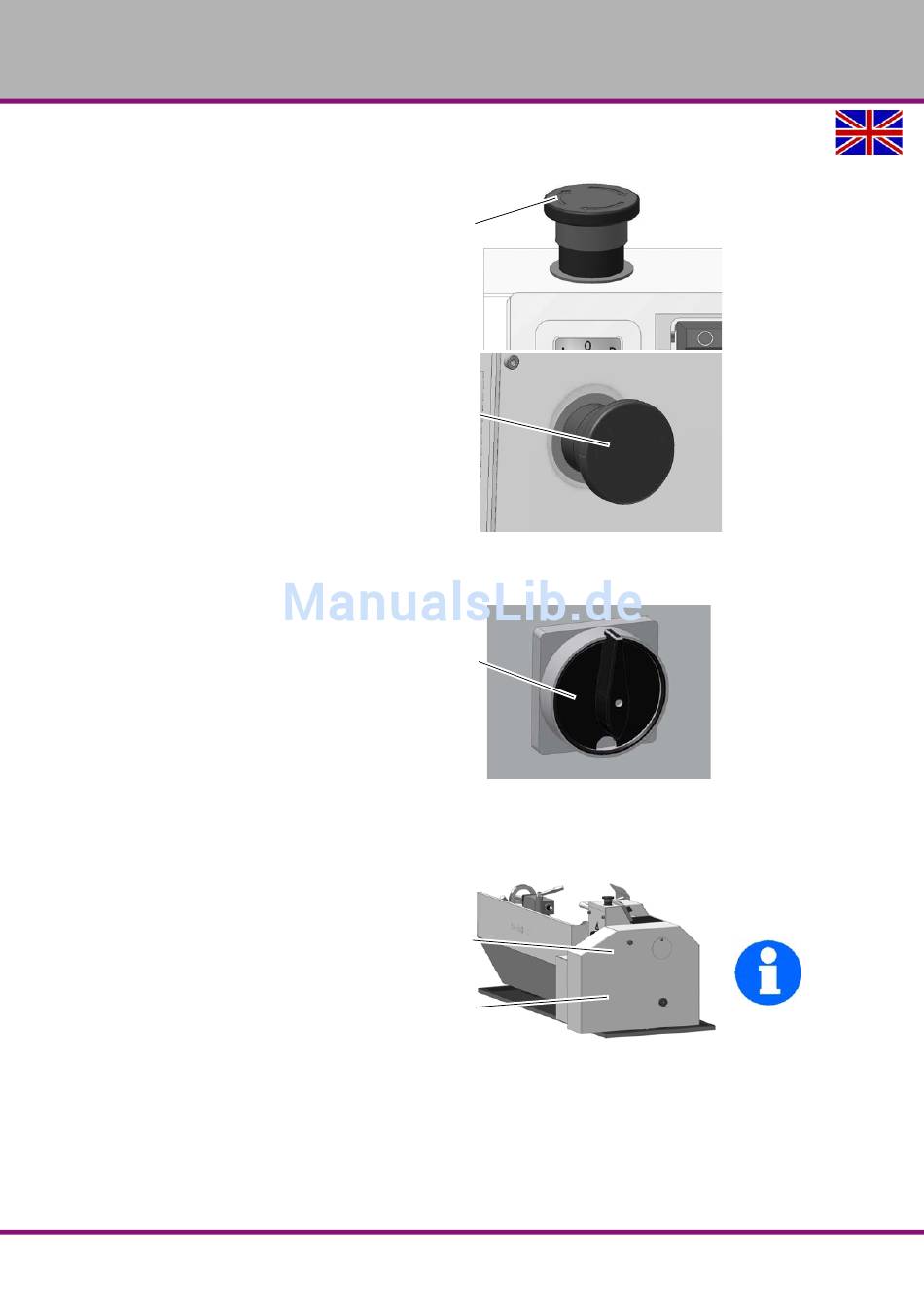

Img.1-1: EMERGENCY-STOP button
Img.1-2: Lockable main switch
Img.1-3: for the protective cover of the headstock
