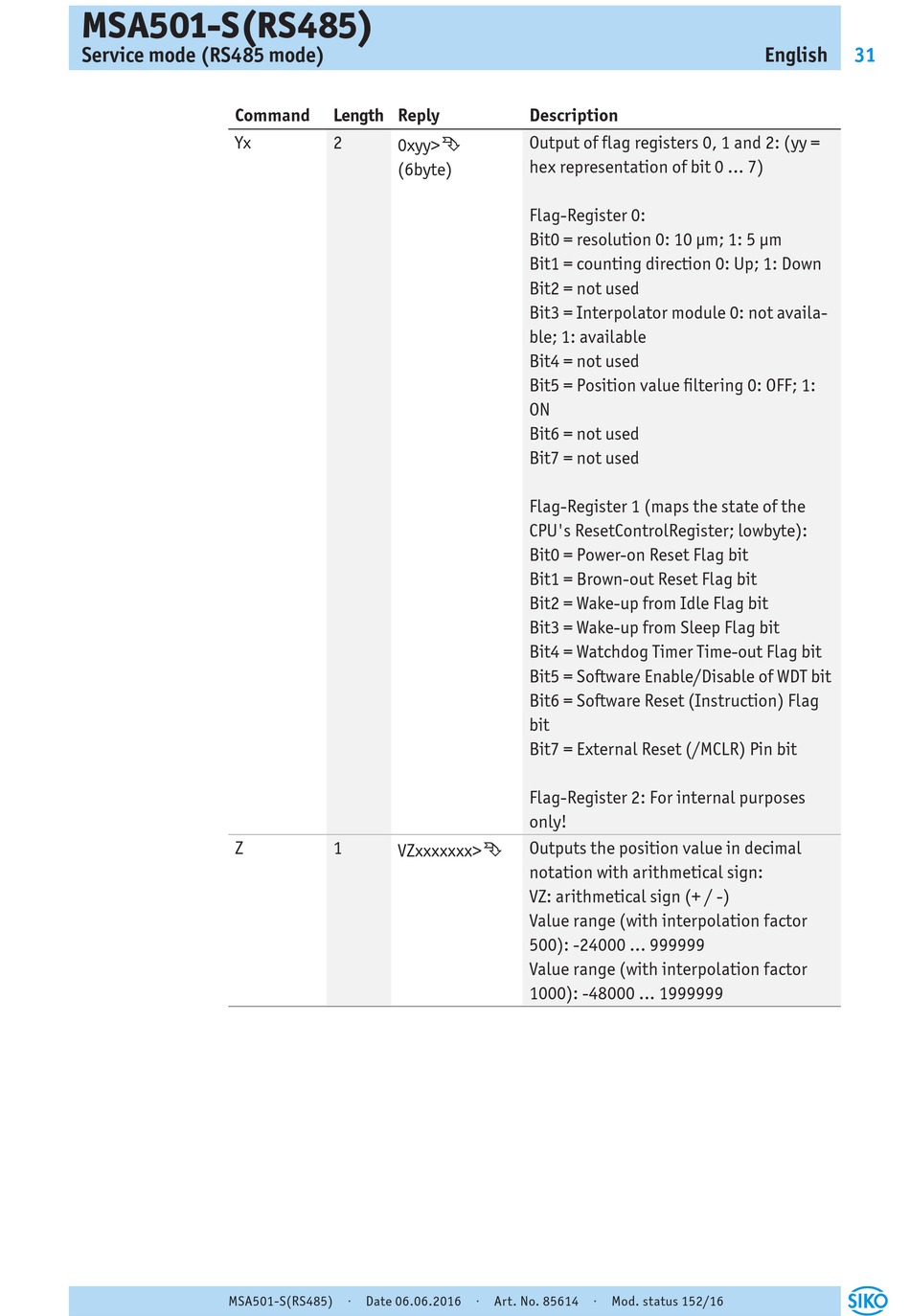

MSA501-S(RS485)
Service mode (RS485 mode)
Command
Yx
Z
MSA501-S(RS485) · Date 06.06.2016 · Art. No. 85614 · Mod. status 152/16
Length Reply
2
Ê
0xyy>
(6byte)
1
Ê
VZxxxxxxx>
Description
Output of flag registers 0, 1 and 2: (yy =
hex representation of bit 0 ... 7)
Flag-Register 0:
Bit0 = resolution 0: 10 μm; 1: 5 μm
Bit1 = counting direction 0: Up; 1: Down
Bit2 = not used
Bit3 = Interpolator module 0: not availa-
ble; 1: available
Bit4 = not used
Bit5 = Position value filtering 0: OFF; 1:
ON
Bit6 = not used
Bit7 = not used
Flag-Register 1 (maps the state of the
CPU's ResetControlRegister; lowbyte):
Bit0 = Power-on Reset Flag bit
Bit1 = Brown-out Reset Flag bit
Bit2 = Wake-up from Idle Flag bit
Bit3 = Wake-up from Sleep Flag bit
Bit4 = Watchdog Timer Time-out Flag bit
Bit5 = Software Enable/Disable of WDT bit
Bit6 = Software Reset (Instruction) Flag
bit
Bit7 = External Reset (/MCLR) Pin bit
Flag-Register 2: For internal purposes
only!
Outputs the position value in decimal
notation with arithmetical sign:
VZ: arithmetical sign (+ / -)
Value range (with interpolation factor
500): -24000 ... 999999
Value range (with interpolation factor
1000): -48000 ... 1999999
