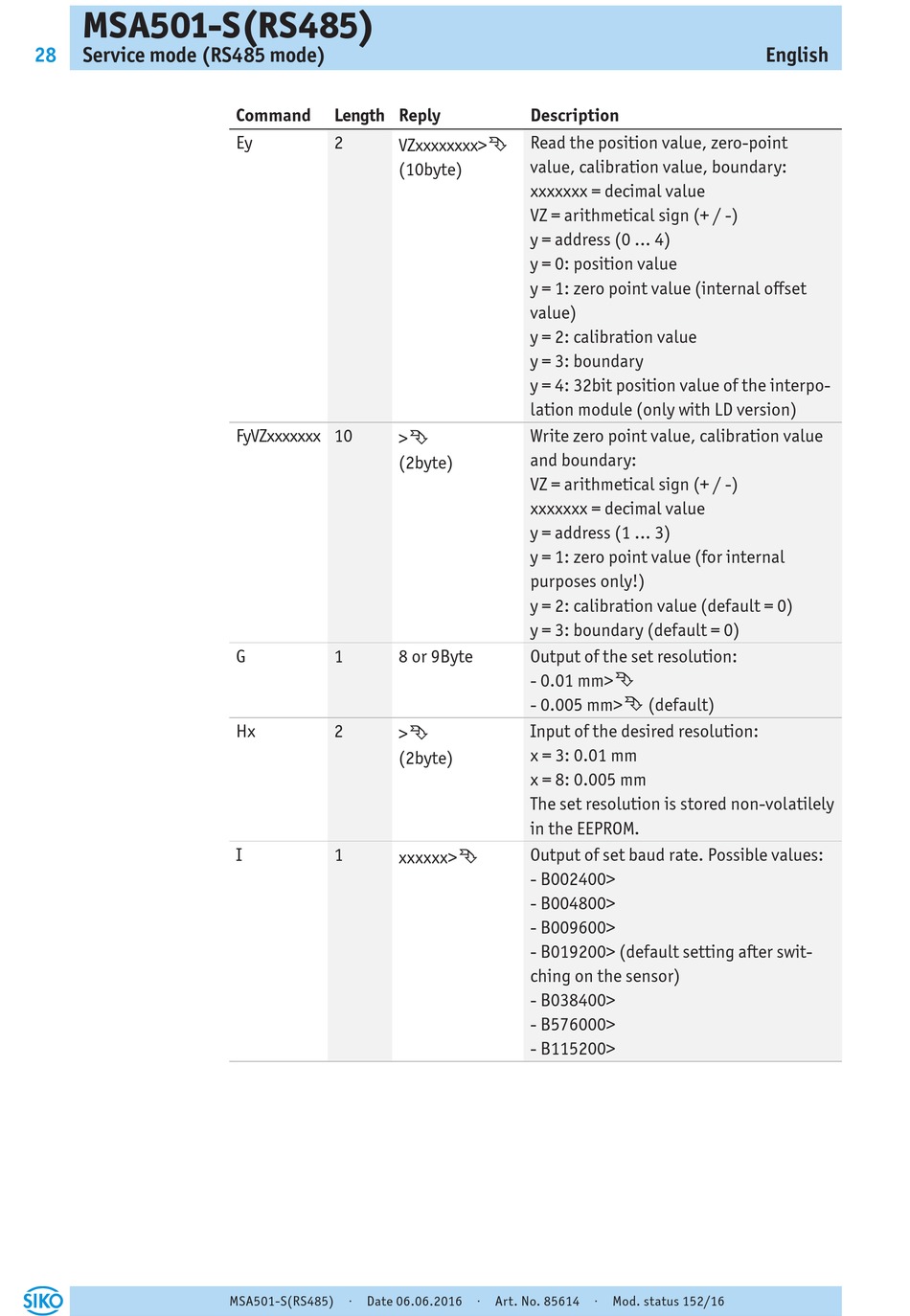

Siko MSA501 Originalmontageanleitung Seite 28

MSA501-S(RS485)
28 Service mode (RS485 mode)
Command Length Reply
Ey 2
VZxxxxxxxx>
(10byte)
FyVZxxxxxxx 10
>
(2byte)
G 1 8 or 9Byte
Hx 2
>
(2byte)
I 1
xxxxxx>
MSA501-S(RS485) · Date 06.06.2016 · Art. No. 85614 · Mod. status 152/16
Description
Read the position value, zero-point
Ê
value, calibration value, boundary:
xxxxxxx = decimal value
VZ = arithmetical sign (+ / -)
y = address (0 ... 4)
y = 0: position value
y = 1: zero point value (internal offset
value)
y = 2: calibration value
y = 3: boundary
y = 4: 32bit position value of the interpo-
lation module (only with LD version)
Write zero point value, calibration value
Ê
and boundary:
VZ = arithmetical sign (+ / -)
xxxxxxx = decimal value
y = address (1 ... 3)
y = 1: zero point value (for internal
purposes only!)
y = 2: calibration value (default = 0)
y = 3: boundary (default = 0)
Output of the set resolution:
- 0.01 mm>
- 0.005 mm>
Input of the desired resolution:
Ê
x = 3: 0.01 mm
x = 8: 0.005 mm
The set resolution is stored non-volatilely
in the EEPROM.
Output of set baud rate. Possible values:
Ê
- B002400>
- B004800>
- B009600>
- B019200> (default setting after swit-
ching on the sensor)
- B038400>
- B576000>
- B115200>
English
Ê
Ê
(default)
