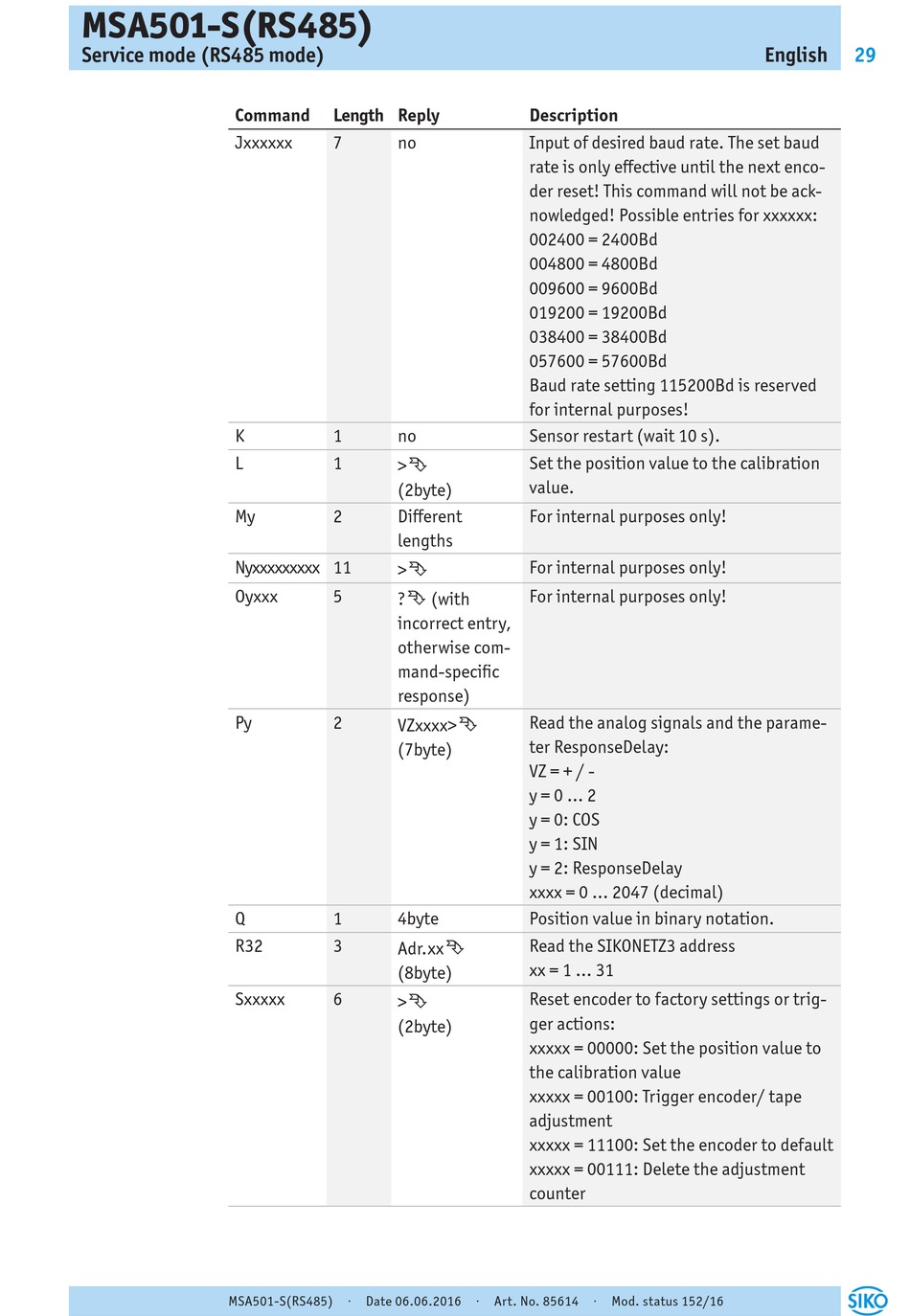

Siko MSA501 Originalmontageanleitung Seite 29

MSA501-S(RS485)
Service mode (RS485 mode)
Command
Jxxxxxx
K
L
My
Nyxxxxxxxxx 11
Oyxxx
Py
Q
R32
Sxxxxx
MSA501-S(RS485) · Date 06.06.2016 · Art. No. 85614 · Mod. status 152/16
Length Reply
7 no
1 no
1
Ê
>
(2byte)
2 Different
lengths
Ê
>
5
Ê
? (with
incorrect entry,
otherwise com-
mand-specific
response)
2
Ê
VZxxxx>
(7byte)
1 4byte
3
Ê
Adr.xx
(8byte)
6
Ê
>
(2byte)
Description
Input of desired baud rate. The set baud
rate is only effective until the next enco-
der reset! This command will not be ack-
nowledged! Possible entries for xxxxxx:
002400 = 2400Bd
004800 = 4800Bd
009600 = 9600Bd
019200 = 19200Bd
038400 = 38400Bd
057600 = 57600Bd
Baud rate setting 115200Bd is reserved
for internal purposes!
Sensor restart (wait 10 s).
Set the position value to the calibration
value.
For internal purposes only!
For internal purposes only!
For internal purposes only!
Read the analog signals and the parame-
ter ResponseDelay:
VZ = + / -
y = 0 ... 2
y = 0: COS
y = 1: SIN
y = 2: ResponseDelay
xxxx = 0 ... 2047 (decimal)
Position value in binary notation.
Read the SIKONETZ3 address
xx = 1 ... 31
Reset encoder to factory settings or trig-
ger actions:
xxxxx = 00000: Set the position value to
the calibration value
xxxxx = 00100: Trigger encoder/ tape
adjustment
xxxxx = 11100: Set the encoder to default
xxxxx = 00111: Delete the adjustment
counter
English 29
