MSA501-S(RS485)

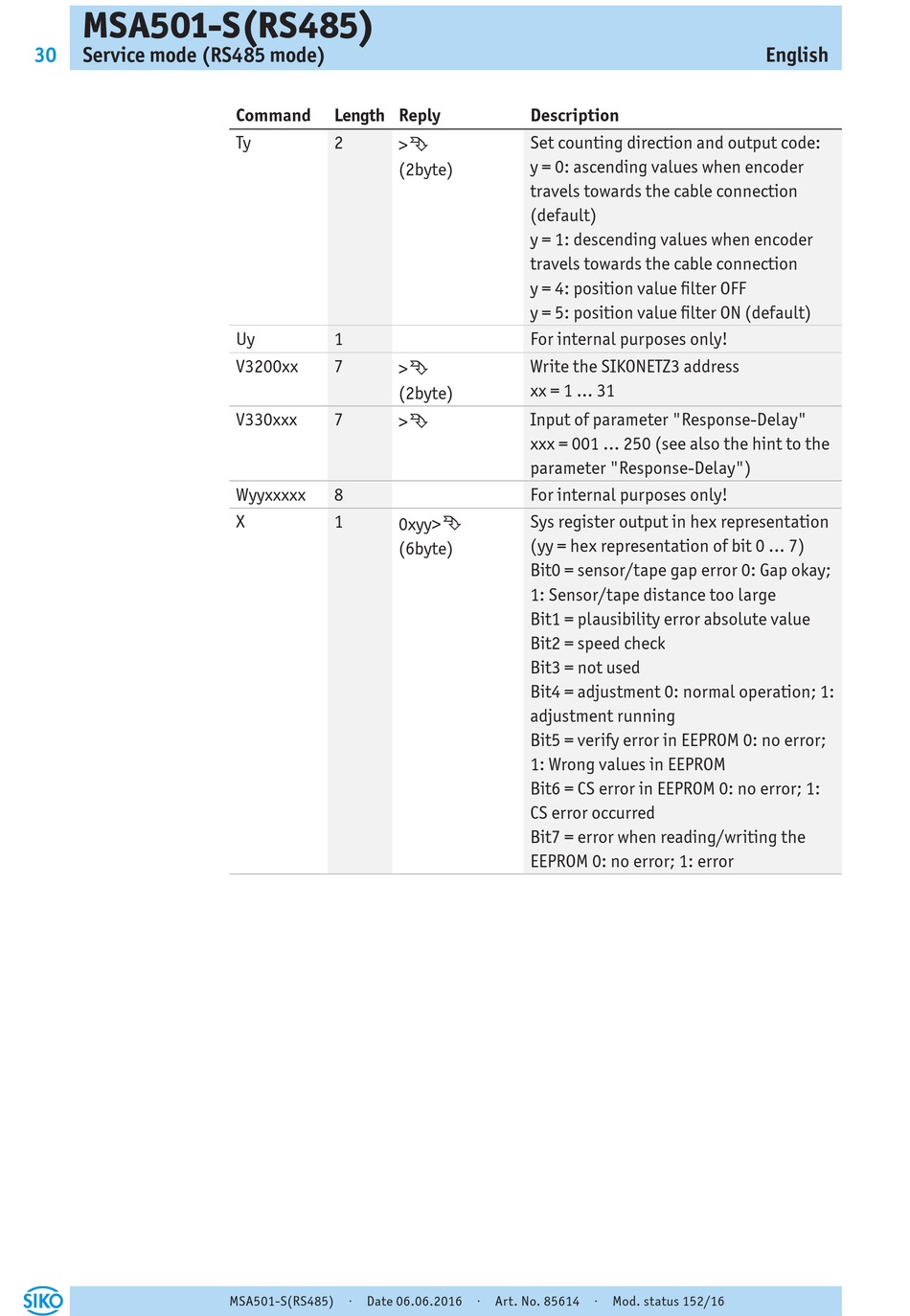

30 Service mode (RS485 mode)
Command Length Reply
Ty 2
>
(2byte)
Uy 1
V3200xx 7
>
(2byte)
V330xxx 7
>
Wyyxxxxx 8
X 1
0xyy>
(6byte)
MSA501-S(RS485) · Date 06.06.2016 · Art. No. 85614 · Mod. status 152/16
Description
Set counting direction and output code:
Ê
y = 0: ascending values when encoder
travels towards the cable connection
(default)
y = 1: descending values when encoder
travels towards the cable connection
y = 4: position value filter OFF
y = 5: position value filter ON (default)
For internal purposes only!
Write the SIKONETZ3 address
Ê
xx = 1 ... 31
Input of parameter "Response-Delay"
Ê
xxx = 001 ... 250 (see also the hint to the
parameter "Response-Delay")
For internal purposes only!
Sys register output in hex representation
Ê
(yy = hex representation of bit 0 ... 7)
Bit0 = sensor/tape gap error 0: Gap okay;
1: Sensor/tape distance too large
Bit1 = plausibility error absolute value
Bit2 = speed check
Bit3 = not used
Bit4 = adjustment 0: normal operation; 1:
adjustment running
Bit5 = verify error in EEPROM 0: no error;
1: Wrong values in EEPROM
Bit6 = CS error in EEPROM 0: no error; 1:
CS error occurred
Bit7 = error when reading/writing the
EEPROM 0: no error; 1: error
