Commissioning (COMpact 5200)

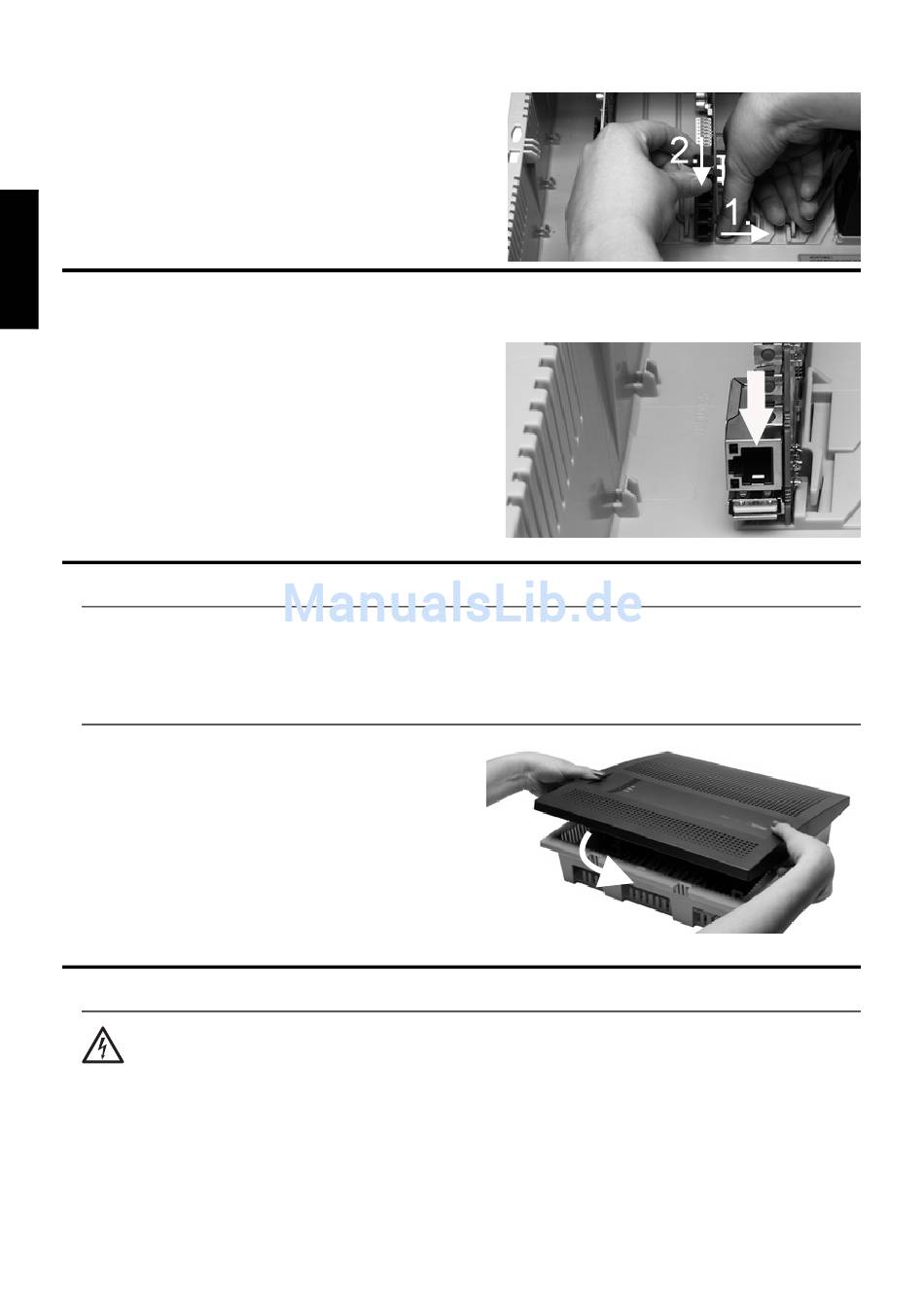

Removing a Module
1. Unlatch the board lock, for example with your
right thumb.
2. Remove the module with your other hand.

Connecting the PC

Requirements:
• Available network socket on the PC or in the
network of the PC
1. Insert one end of the accompanying network
cable into the network socket on the PC or in
the network of the PC.
2. Insert the other end of the network cable into
the RJ-45 socket of the CPU module.

Closing the Casing

Note: The connections for the first commissioning (connection to a PC/network and, if
necessary, connection of a few terminals) must be made before the casing is closed.
Alternatively, you can prepare them by laying a connecting cable that leads out of the
housing.
Requirements:
• Cables carefully reinserted into the cable
space after installation
1. Place the upper edge of the cover onto the
top of the casing.
2. Press the lower edge of the cover against
the casing until it clicks into place.

Turning on the PBX

Warning: Touching voltage-carrying conductors or telephone connections can
cause life-threatening electric shocks.
• Close the casing before you put the PBX into operation.
Note: If you have a USB memory stick with a configuration for automatic loading
(auconfig.cfg), insert it into the USB socket (USB host) of the CPU module before you
