General

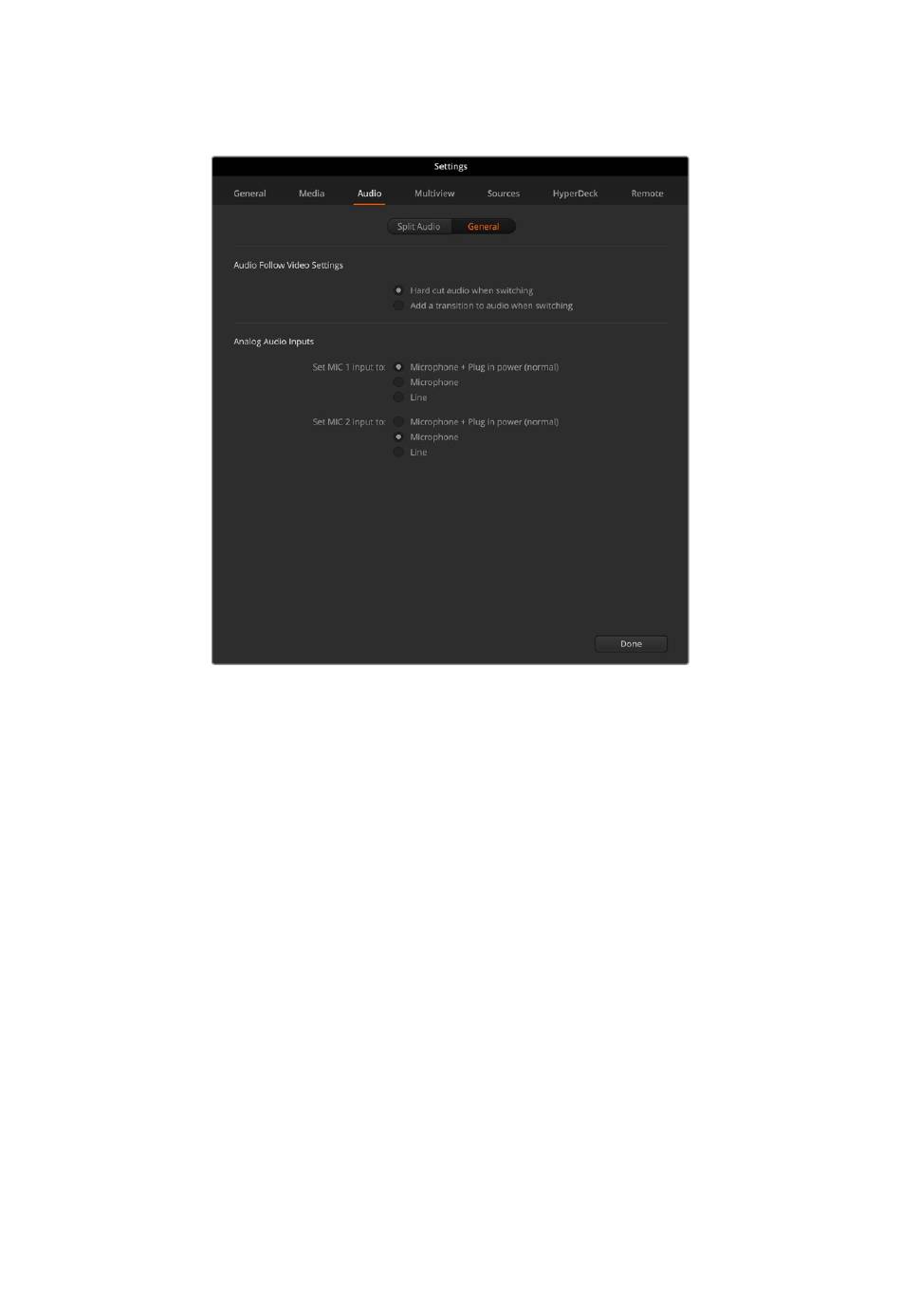

The settings in the general tab have options for AFV and analog audio input levels.
Audio Follow Video Behavior
You can change the nature of the audio follow video feature for when switching sources.
For example, select 'hard cut audio when switching' to allow the audio from an input to switch
immediately to another. If you want to the audio to smoothly transition over a brief period of
time, select 'add a transition to audio when switching'.
Analog Audio Inputs
The analog audio input options let you set the microphone inputs to microphone or line level
audio as well as power your microphone from your ATEM Mini.
If you are using a microphone that uses plug in power, select the 'microphone + plug in power'
checkbox. Your ATEM Mini will power your microphone directly from the 3.5mm audio input.
Microphones typically have weaker signals compared to line outputs from other audio devices.
This means when microphone is selected, the input is boosted slightly to compensate. This also
means that if microphone is accidentally selected when a line level input is plugged in, the
audio will sound unusually loud. If the audio sounds much louder than it should be, check that
line is selected instead of microphone.
