NOTE If you're connecting direct to a switcher without a network, then you won't have
a DHCP server to assign an IP address automatically, so you will want to select 'DHCP
off'. ATEM 1 M/E Advanced Panel is delivered with a fixed IP address set to
192.168.10.60 for a direct connection.
However, if your network has lots of computers that automatically assign IP addresses
via DHCP, then you can also select 'DHCP on' so the panel can get its network
information automatically. This is possible on the panel, and it's only ATEM Mini that
always requires a fixed IP, as the switcher needs to be found by the control panels at a
known fixed address on your network.
ATEM Mini Pro and Extreme switchers are set to use DHCP by default, so if you are
connecting an ATEM hardware panel and the switcher to a network that supports DHCP,
you can set the panel to 'DHCP on' and your network settings will be complete because
the panel network settings will be obtained from the network automatically.
4 If you have elected to use a fixed IP address, you now need to set this IP address by
adjusting the corresponding soft control knobs for each field of the IP address.
You can also use the numeric keypad. Changing this IP address may cause the panel
to lose communication.
5 If the subnet mask and gateway address need to be set, then press the right arrow button
in the system control buttons to progress through each setting menu, and use the knobs or
the numeric keypad to edit. If at any time you want to cancel the changes, press 'undo'.
6 When you are happy with your settings, press the 'save changes' soft button to confirm.

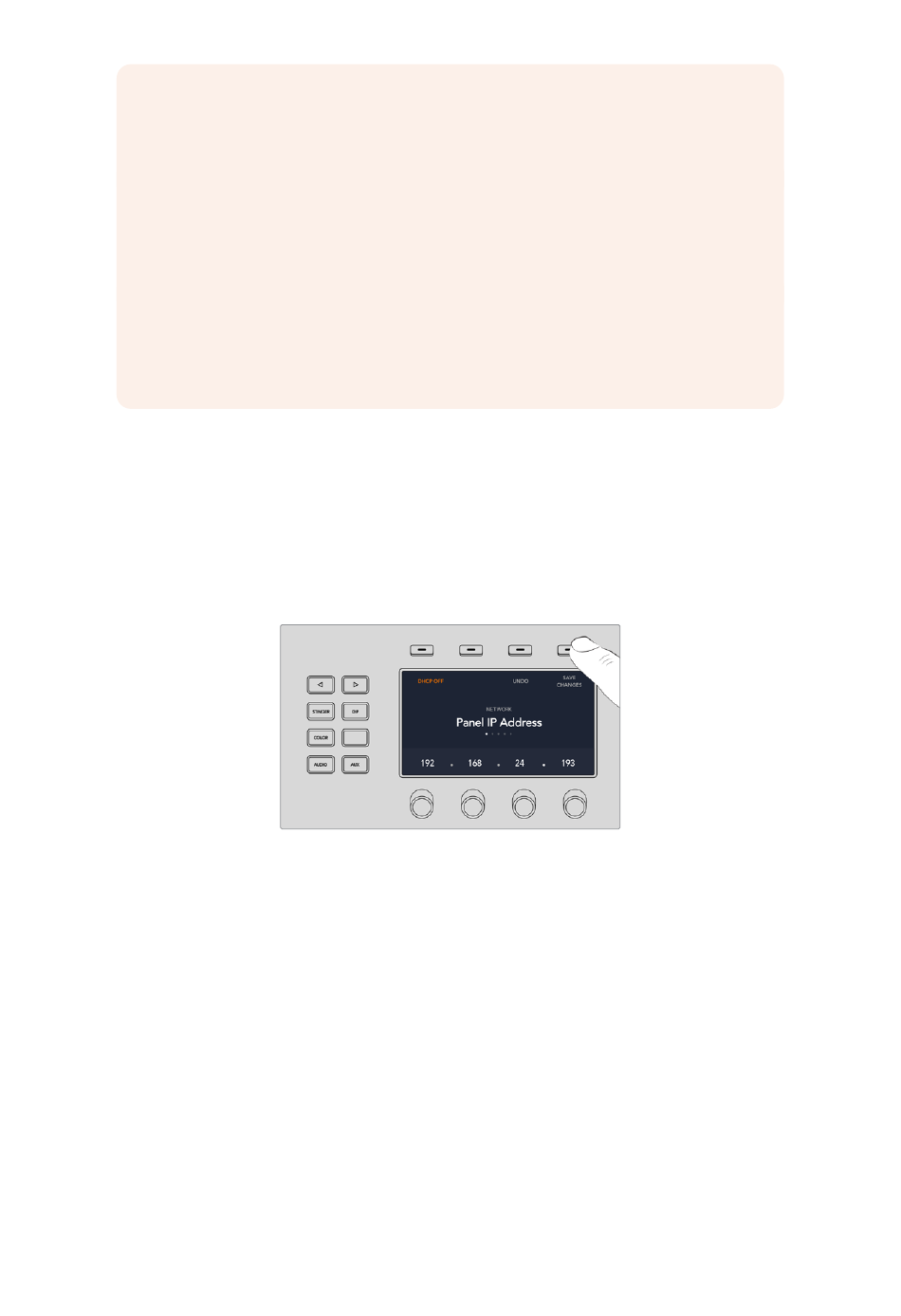

When you are happy with your network settings, press the
'save changes' button to confirm them

Setting the Switcher's IP Location on the Panel

To set ATEM Mini's IP location on ATEM 1 M/E Advanced Panel so the panel can find ATEM Mini
and communicate, simply follow these steps:
Changing the Switcher's IP location on ATEM 1 M/E Advanced Panel
1 When there is no communication with ATEM Mini, the LCD will say 'connecting' and notify
you of the IP address it is searching for. If the panel can't find the switcher, the connection
will time out and a notification will ask you to check the IP address. Press the 'network' soft
button above the LCD to open the network settings.
2 In the network settings, press the right arrow in the system control buttons next to the LCD
to move to the 'switcher IP address' setting.
3 Now use the corresponding LCD soft control knobs to set the correct IP address for
your switcher.
4 Press the 'save changes' soft button to confirm the setting.
Your panel will now connect with your switcher.
