Processing Palettes

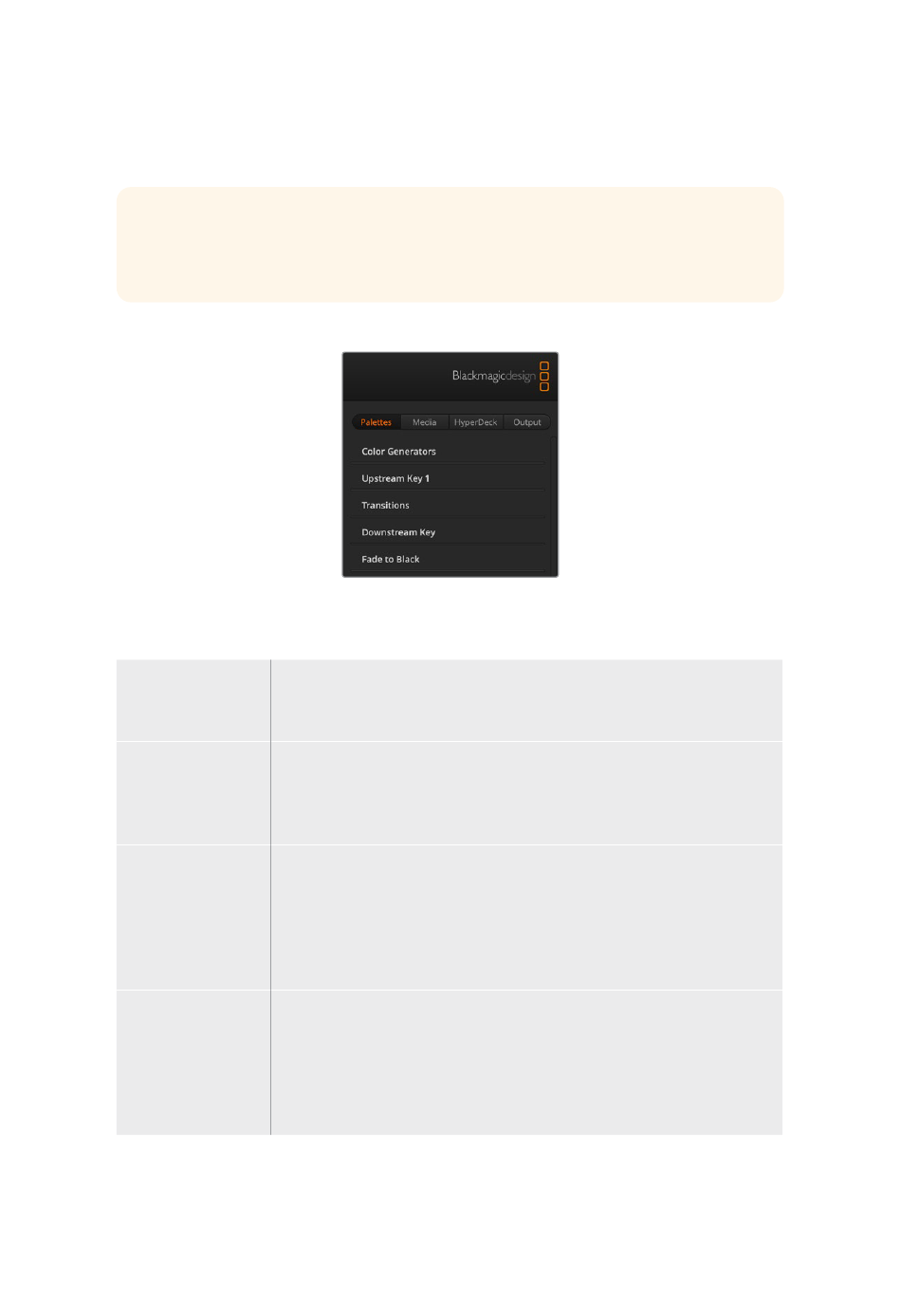

The software control panel features tabs for the processing palette, media player, and
output options.
TIP The palettes also show the order of the processing in the switcher. You can
expand and minimize palettes to save space and scroll them up and down to get the
adjustments you need to set.
The following processing palettes are available.
Palettes Tab
The 'palettes' tab contains the following processing controls.
Color Generators Your ATEM switcher has two color matte generators which can be configured
from the color generators palette using a color picker or by setting hue,
saturation, and luminance levels.
SuperSource ATEM Mini Extreme model switchers include a feature referred to as
SuperSource that will allow you to arrange multiple sources on the monitor at
one time. For more information refer to the section 'Using SuperSource' later
in this manual.
Upstream Key The switcher's upstream keyer can be configured from the upstream key
palette. Within the keyer palette, the keyer can be configured as a luma key,
chroma key, pattern key or DVE. The type of key available will also depend on
if the DVE is available. The upstream key palette will display all the parameters
that are available to configure the keyer. More information on how to use
upstream keyer is included later in this manual.
Transitions The transitions palette is where you can configure the parameters of each
transition style. For example, for the dip transition the palette has a menu
where you can select the dip source and for the wipe transition the palette
displays all the available wipe patterns. There are lots of variations of
transitions and a large number of transitions can be created by combining
settings and features in the transitions palette.
ATEM Software Control 49
