Recording Macros

You can record and run macros using an ATEM 1 M/E Advanced Panel independently of
ATEM Software Control. All actions on the ATEM Software Control switcher page can be
performed using your hardware panel. If you need to arrange graphics in the media pool, or
adjust camera settings, simply access those settings using ATEM Software Control.
The buttons used to record and run macros on the ATEM 1 M/E Advanced Panel are located in
the system control buttons. The names of your macro buttons are displayed in the source select
names display.
Follow the steps below to create the 'transitions' macro demonstrated earlier using
ATEM Software Control. This time you will create a macro in macro slot 6.
1 Press the 'macro' soft button to open the macros LCD menu.
2 Using the 'macro' knob under the LCD, select the macro slot you want to record to. For this
example, select 'slot 6 - Empty'.
3 Press the 'record' soft button at the top of the LCD to start recording. The record icon
appears as a red circle. When recording, this icon becomes a red square.
4 Shift select 'color bars' on the program bus. The button will flash indicating it's a
shifted source.
5 Shift select 'color 1' on the preview bus. If you wish, you can map buttons such as color bars,
black and color generators to any of the main 10 buttons of the program and preview bus
for easier access. See the 'button mapping' section of this manual for instructions.

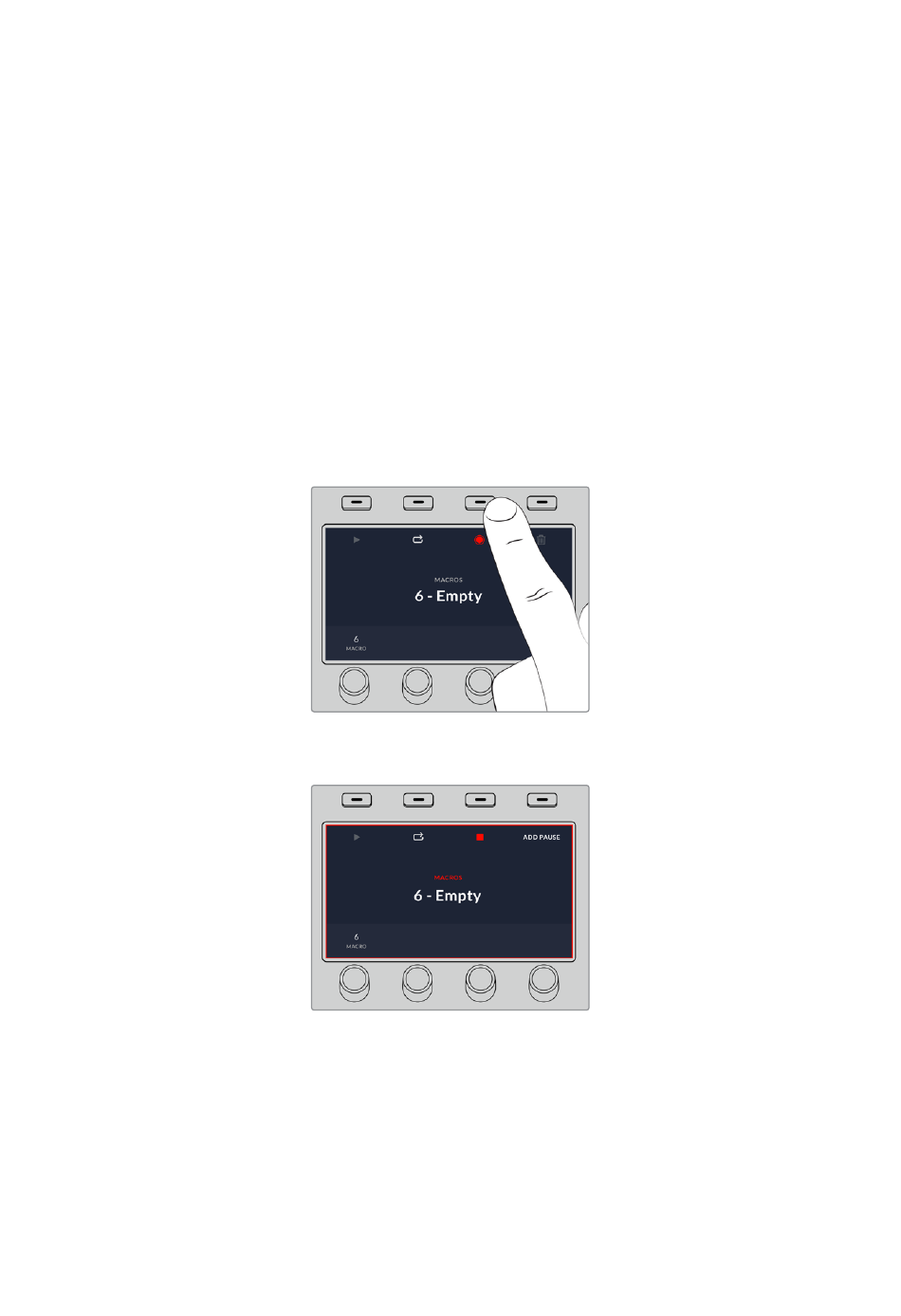

Press the 'record' soft button to start recording
your macro
While recording, a red border will appear
around the LCD
