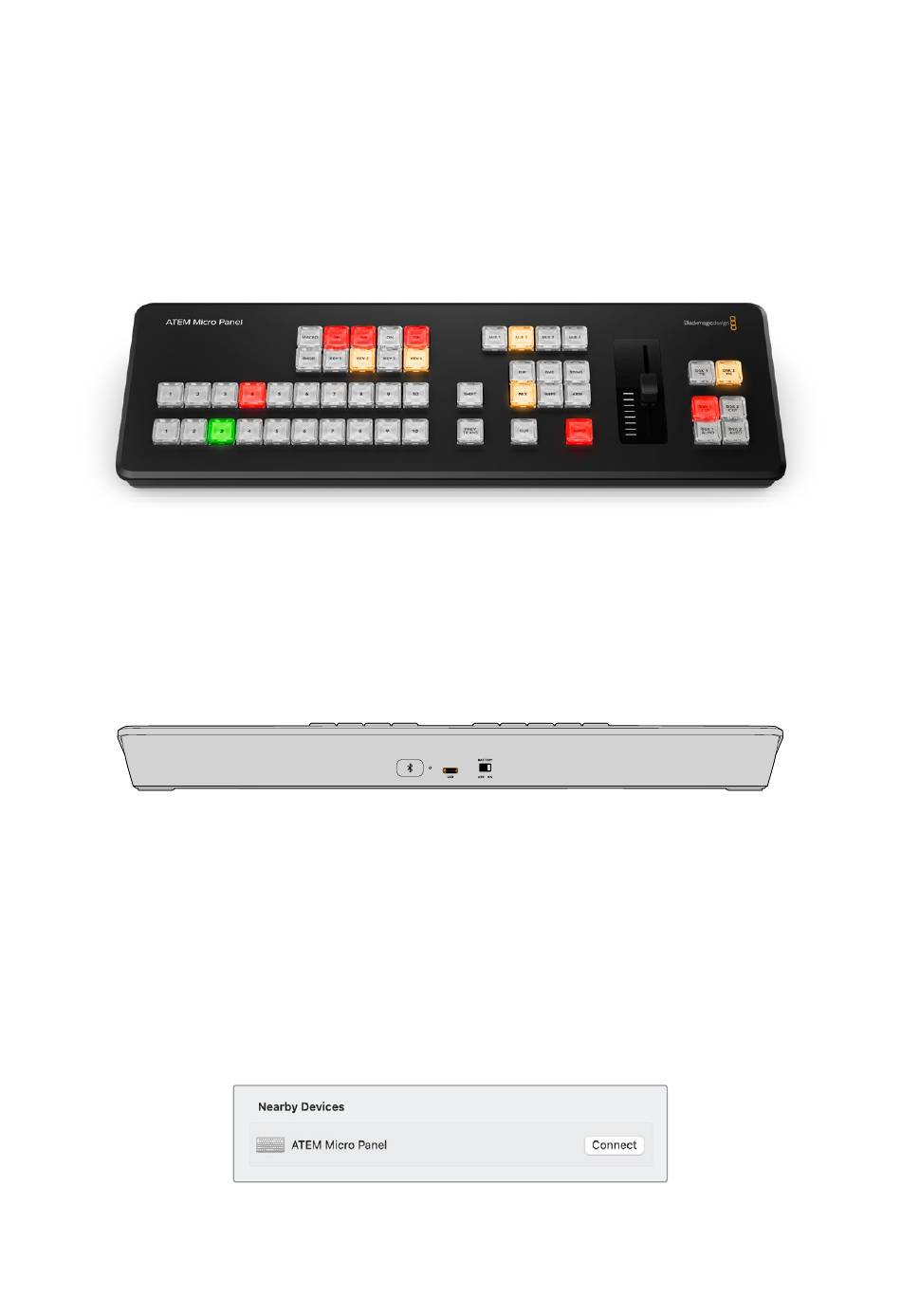

Using ATEM Micro Panel

ATEM Micro Panel is a compact hardware panel for those who want to use an external panel but
don't need the size of the larger ATEM advanced panels. Featuring the same buttons as ATEM
advanced panels, the micro panel can control all ATEM switchers from 1 M/E to 4 M/E models.
With Bluetooth and a low profile transition fader, the panel is perfect if you need to take a
panel with you.
If you've used ATEM Software Control, the buttons will be familiar to you.
ATEM Micro Panel can be used connected via USB-C or using Bluetooth when using the
internal battery. To start controlling your ATEM Mini switcher using the micro panel, simply
connect the panel to the same computer running ATEM Software Control.

Connecting via USB

Connecting your panel via USB-C is the easiest way to get started. Using a USB cable connect
the panel to your computer's USB port. USB is also required to charge the internal battery and
access ATEM Setup utility to change your button mapping and change button colors.

Connecting via Bluetooth

You can connect your ATEM Micro Panel to your computer via Bluetooth for increased flexibility.
To connect to Mac via Bluetooth:
1 On the rear panel, move the battery switch to the 'on' position to power your ATEM Micro
Panel using the internal battery.
2 Press the 'Bluetooth' button. A blue light will flash to let you know the micro panel is
ready to pair.
3 On your Mac, open 'system settings' and select 'Bluetooth' in the left hand column. You
should see your ATEM Micro Panel listed under 'nearby devices'. Click the 'connect' button.
