ATEM Mini Extreme Enhanced Multiview
ATEM Mini Extreme switcher models have a customizable multi view layout for 4, 7, 10, 13 or 16 views
so you can display a combination of all the inputs available. Click the menus to select what you want
on each view. If you don't have enough cameras on your job to fill all input views, you can select
other sources such as media players, color generators and streaming and recording status views.
It's extremely flexible and you can also change the multi view layout to suit your preference.
Audio meters can be turned on or off within each source view, or all at once, by clicking on the
respective icons in each view or the 'all on' button, respectively. Use the view control button to
select your preferred layout.

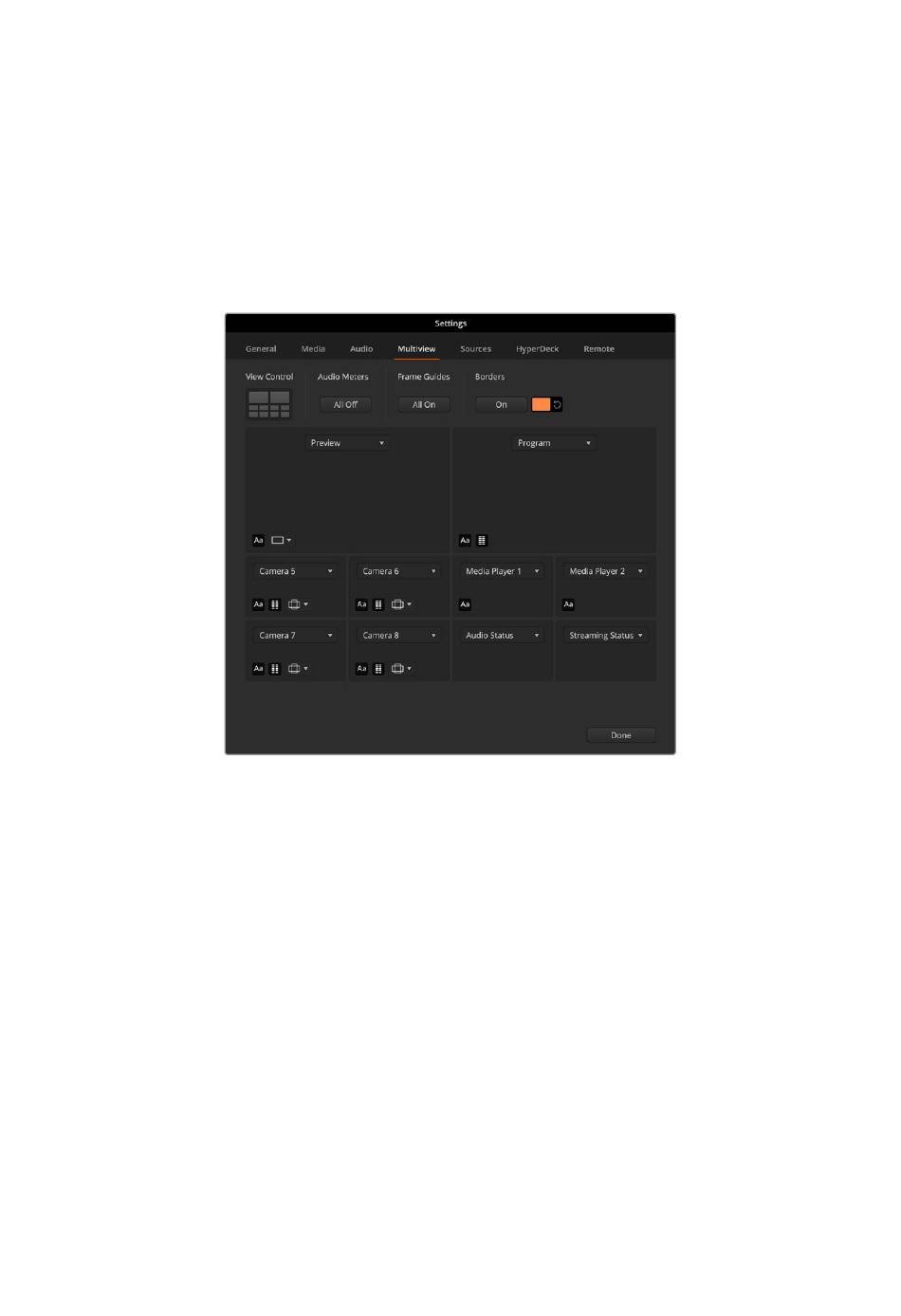

Customize the multi view for ATEM Mini Extreme
On each source and preview view you can turn on safe area markers to make sure your
program will look great on any monitor. Frame guides display as 16:9 for horizontal or 9:16
for vertical workflows. Select 'all' to turn on both frame guides. There is also a border setting
you can turn on or off and adjust the colors by clicking the color.
The multiview is an excellent tool that will let you spot every detail and put you in the moment.
For example, it can help you previsualize ideas in the preview window before switching them
to the program output. You can monitor each HDMI source and test switching between them,
set up a chroma key, or even preview a transition to see what it will look like before switching
it to the program output!
