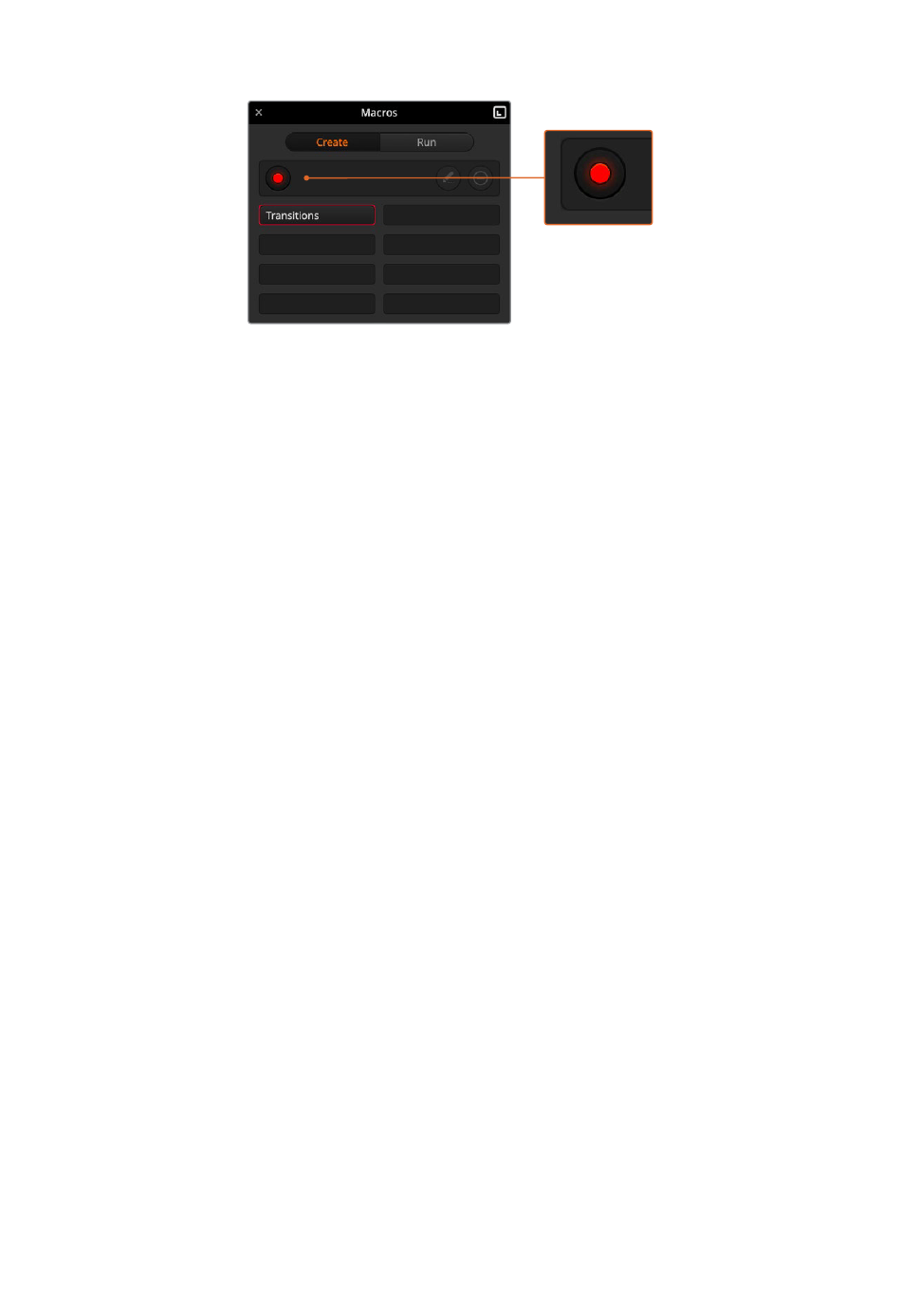

While recording, the create macro button will change to a 'record' button.
When you have completed your switcher actions, click on the 'record'
button to stop recording.
6 Click on the bars button in the program panel on the switcher page. This sets bars to your
switcher's program output.
7 Select color 1 on the preview output.
8 Open the transitions palette and set it to mix.
If mix is already selected, make sure your macro records the setting by selecting a different
transition type, for example the wipe transition, then clicking on mix again.
9 Now change the transition Rate to 3:00. This sets the mix transition duration to 3 seconds.
10 Click on the auto button in the transition style panel. Your switcher will perform a mix
transition from color bars to color 1.
11 To set the switcher to wait for 2 seconds before applying another transition, click on the
add pause button at the top of the red border. The 'insert pause' window will open. Set the
pause to 5 seconds and 00 frames and click 'confirm'.
Why set a 5 second pause when you only want a 2 second pause? That's because when
the mix transition occurs, it takes 3 seconds to complete. So if you want to add a pause, you
need to consider the transition duration, plus the pause you want to happen before the next
transition occurs.
In this example, it takes 3 seconds for the transition to complete, then 2 seconds for your 2
second pause, so you should enter a pause of 5 seconds. Another way is to add two
separate pauses, one for the duration of the transition, and then another for the pause you
want. It's up to you.
12 Now select black on the preview panel, and click the auto button in the transition style
panel. Your ATEM switcher will perform a mix transition to black.
13 Click the record icon in the macros window to stop recording your macro.
The macro you just recorded will now appear as a button in your selected macro slot.
To preview your macro, click the run button in the macros window to enter the run page.
Select recall and run, which sets the macros window to run a macro as soon as you click
on a macro button. Now click on your new macro button, named 'Transitions'.
14 If you want your macro to instantly run as soon as you select it, click on the 'recall and run'
button. By enabling this feature you can load and play your macros with only one click
of a button.
