Preview Bus
The preview bus is used to select a source on the preview output. This source is sent to
program when the next transition occurs. The selected source is indicated by a button that is
illuminated green. A blinking green button indicates that a shifted source is on preview.
Pressing the SHIFT button will display the shifted source.
Shift
The SHIFT button provides a global shift and is used to shift the program and preview buses
including when selecting macros.
Double-pressing buttons in the preview bus is the same as shift-selecting them and can be a
faster way to shift-select buttons. Double-pressing is not implemented for the program bus as
it would cause the program output to momentarily show the wrong source.
Preview Transition
The PREV TRANS button enables the preview transition mode, allowing the operator to verify a
mix, dip, wipe or DVE transition by performing it on the preview output using the fader bar.
When the PREV TRANS is selected you will see the preview output match the program output,
and then it's simple to practice your selected transition with the fader bar to confirm you are
going to get what you want. This is a very helpful feature to avoid mistakes on air!

Transition Buttons

Transition Type Buttons

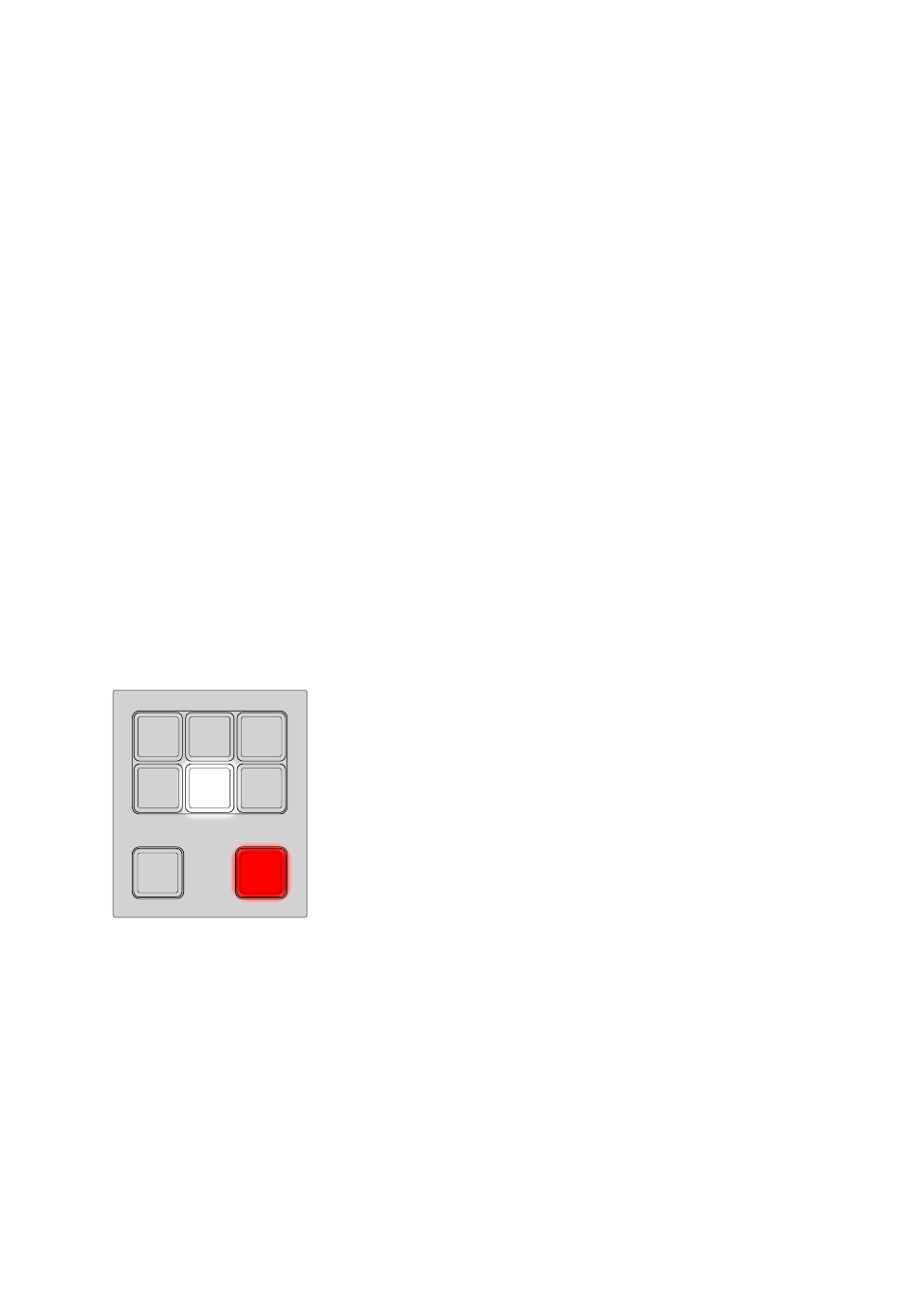

The transition type buttons allow the operator to select one of five types of transitions; mix,
wipe, dip, DVE and stinger, labeled STING. Transition types are selected by pressing the
M/E 1 M/E 2 M/E 3
appropriately labeled transition type button. The button will illuminate when selected.
DIP DVE
SHIFT MIX WIPE
PREV
CUT
TRANS
The AUTO button illuminates red for the duration of the transition and the fader bar indicator
illuminates with sequential LEDs to indicate the progress of the transition. The software control
panel virtual fader bar also updates to provide visual feedback on the progress of the transition.
M/E 4
The button marked ARM is currently disabled and will be
enabled in a future update.
STING
Cut
The button performs an immediate transition of the program
ARM
and preview outputs, regardless of the selected transition type.
Auto
The AUTO button will perform the selected transition at the rate
AUTO
specified in the auto rate setting located in ATEM
Software Control.
DSK 1 DSK 2
TIE TIE
DSK 1 DSK 2
CUT CUT
DSK 1 DSK 2
AUTO AUTO
