Transition Fader

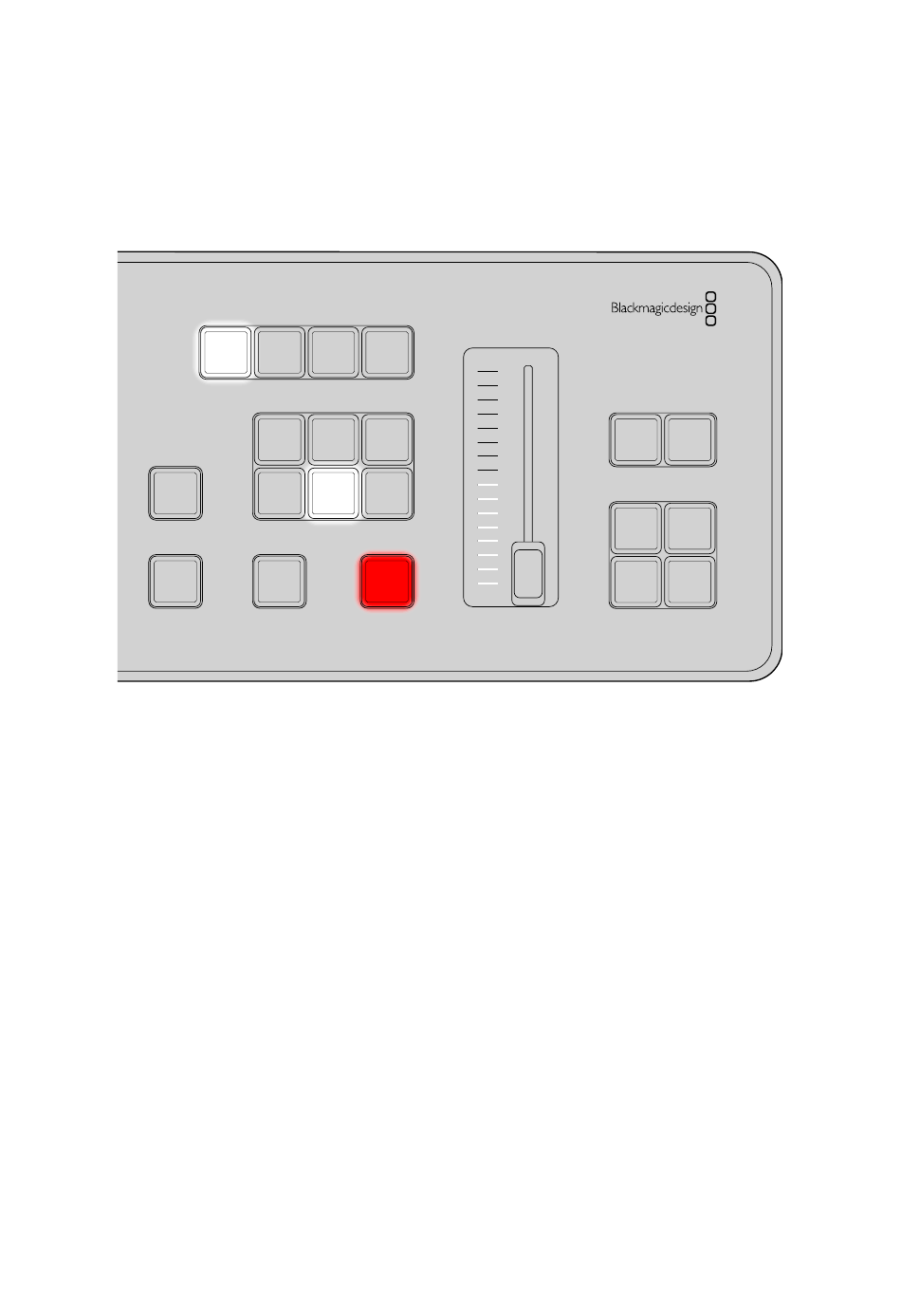

Transition Fader Bar and Indicator
The fader bar is used as an alternative to the AUTO button and allows the operator to manually
control the transition. The fader bar indicator next to the fader bar provides visual feedback on
the progress of the transition.
ON ON
KEY 3 KEY 4
9 10 SHIFT
PREV
9 10
TRANS

Downstream Keyers

Downstream Key Tie
The DSK TIE button will enable the DSK on the preview output, along with the next transition
effects and tie it to the main transition control so that the DSK can be taken to air with the next
transition.
Because the tied downstream keyer is now tied to the main transition, the transition will happen
at the rate specified in the auto rate setting in the software control panel. When the DSK is tied,
the signal routing to the clean feed 1 is unaffected.
Downstream Key Cut
The DSK CUT button is used to cut the DSK on or off air and indicates whether the DSK is
currently on or off air. The button is illuminated if the DSK is currently on air.
Downstream Key Auto
The DSK AUTO button will mix the DSK on or off air at the rate specified in the DSK rate in
ATEM Software Control.
M/E 1 M/E 2 M/E 3 M/E 4
DIP DVE STING
MIX WIPE ARM
CUT AUTO
DSK 1 DSK 2
TIE TIE
DSK 1 DSK 2
CUT CUT
DSK 1 DSK 2
AUTO AUTO
Using ATEM Micro Panel 154
