Zoom Control
When using compatible lenses with an electronic zoom feature, you can zoom your lens in and
out using the Zoom control. The controller works just like the zoom rocker on a lens, with
telephoto on one end and wide angle on the other. Click on the zoom control, located above
the coarse slider and drag up to zoom in, or drag down to zoom out.
Coarse Setting
The coarse setting is located to the right of the iris/pedestal control and is used to limit the iris
range. This feature helps you prevent over exposed images from going to air.
To set your coarse threshold, completely open the iris using the iris control, then drag the
coarse setting up or down to set optimum exposure. Now when you adjust the iris, the coarse
threshold will prevent it from going above optimum exposure.
Iris Indicator
The iris indicator is located to the left of the iris/pedestal control and displays a visual reference
so you can easily see how open or closed the lens aperture is. The iris indicator is affected by
the coarse setting.
Auto Focus Button
The auto focus button is located at the bottom right corner of each camera controller. Press to
automatically set the focus when you have an active lens that supports electronic focus
adjustments. It's important to know that while most lenses support electronic focus, some lenses
can be set to manual or auto focus modes and so you need to ensure your lens is set to auto
focus mode. Sometimes this is set by sliding the focus ring on the lens forward or backward.
Click on the auto focus button or drag the manual focus adjustment left or right to focus a
compatible lens.

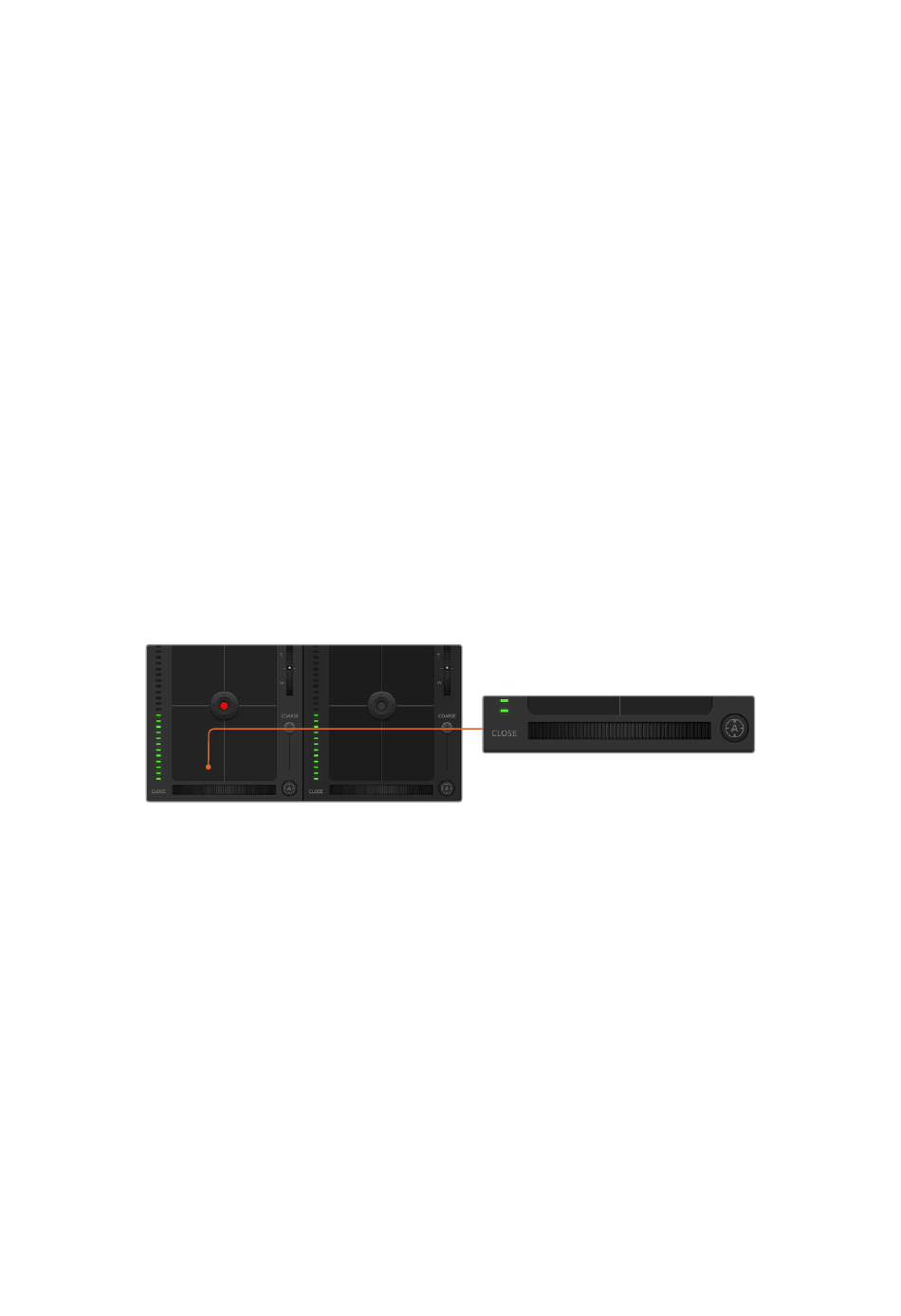

Manual Focus Adjustment
When you want to adjust the focus on your camera manually, you can use the focus adjustment
located at the bottom of each camera controller. Drag the wheel control left or right to manually
adjust focus while viewing the video feed from the camera to ensure your image is nice
and sharp.
Filter
The filter control allows you to switch ND filters in Blackmagic Pocket Cinema Camera 6K Pro
and Blackmagic Studio Camera 6K Pro. Press the left or right ND filter buttons to cycle through
the options.
