To change the network settings via Blackmagic ATEM Setup:
1 Connect ATEM Mini via USB to the computer running the setup utility software.
2 Launch Blackmagic ATEM Setup and select your ATEM Mini.
3 ATEM Mini's current IP address, subnet mask and gateway settings will be displayed in
'configure' window. If you only want to check the IP address and not change it, you can
simply quit the setup utility by clicking 'cancel'.
4 To change the IP address or any other settings, edit the numbers and then click 'save'.

Changing the Hardware Panel Network Settings

Because ATEM 1 M/E Advanced Panel is also on the network and communicating with the
switcher, it also has network settings so it can connect to the network. These settings are
different to the switcher IP address, which is just where the panel is looking to find the switcher.
The panel network settings can be changed by following the steps below:

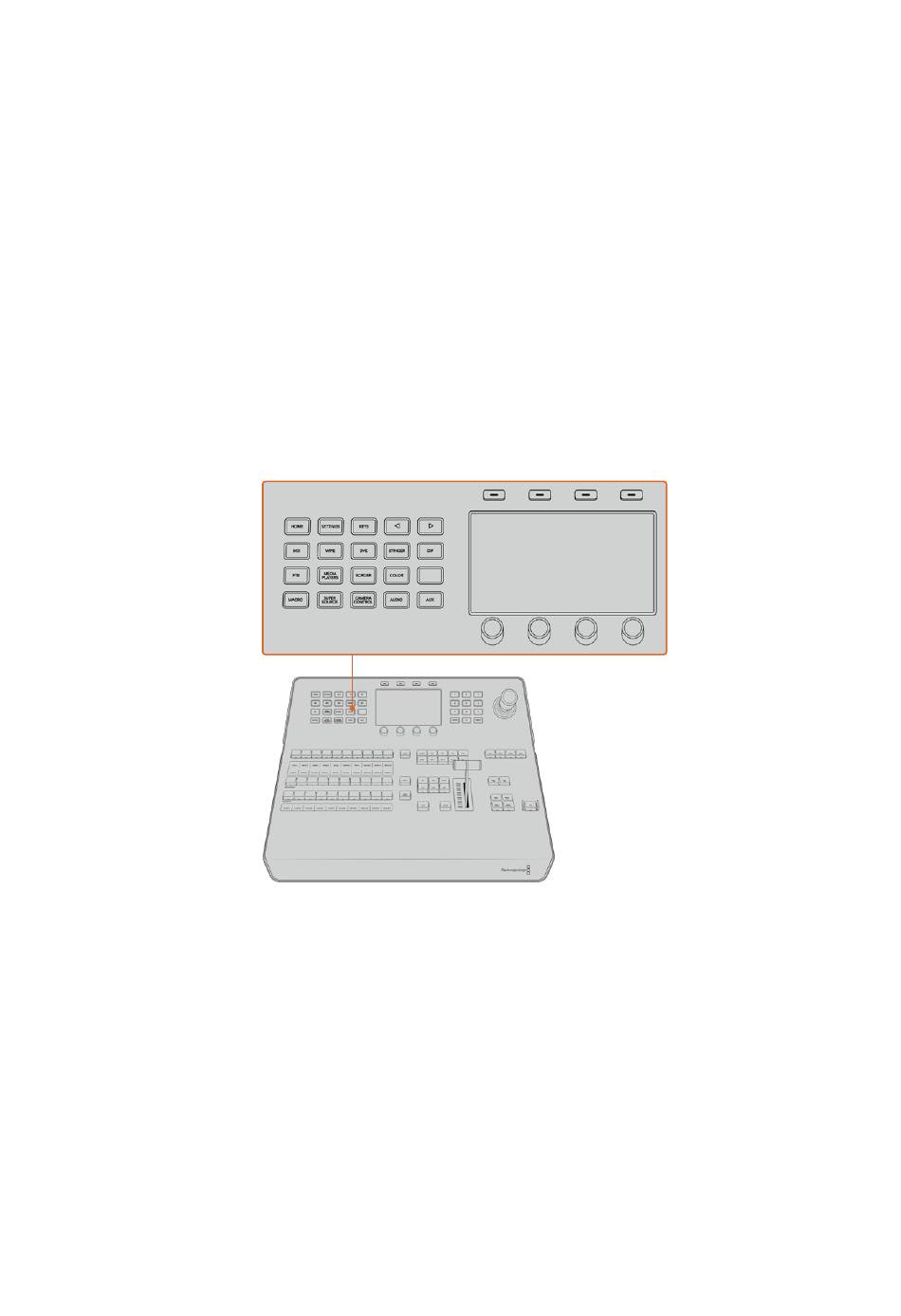

Changing Network Settings on ATEM 1 M/E Advanced Panel
Change network settings using the system control buttons and
LCD soft controls
1 Press the 'home' button in the system control buttons to open the LCD home menu.
2 In the home menu, press the 'network' soft button to open the network settings.
3 The next step is to decide if you want the panel to use a fixed IP address or to be
automatically assigned an IP address from a DHCP server. Set DHCP on or off by pressing
the corresponding DHCP ON/OFF soft button.
Connecting to a Network 112
