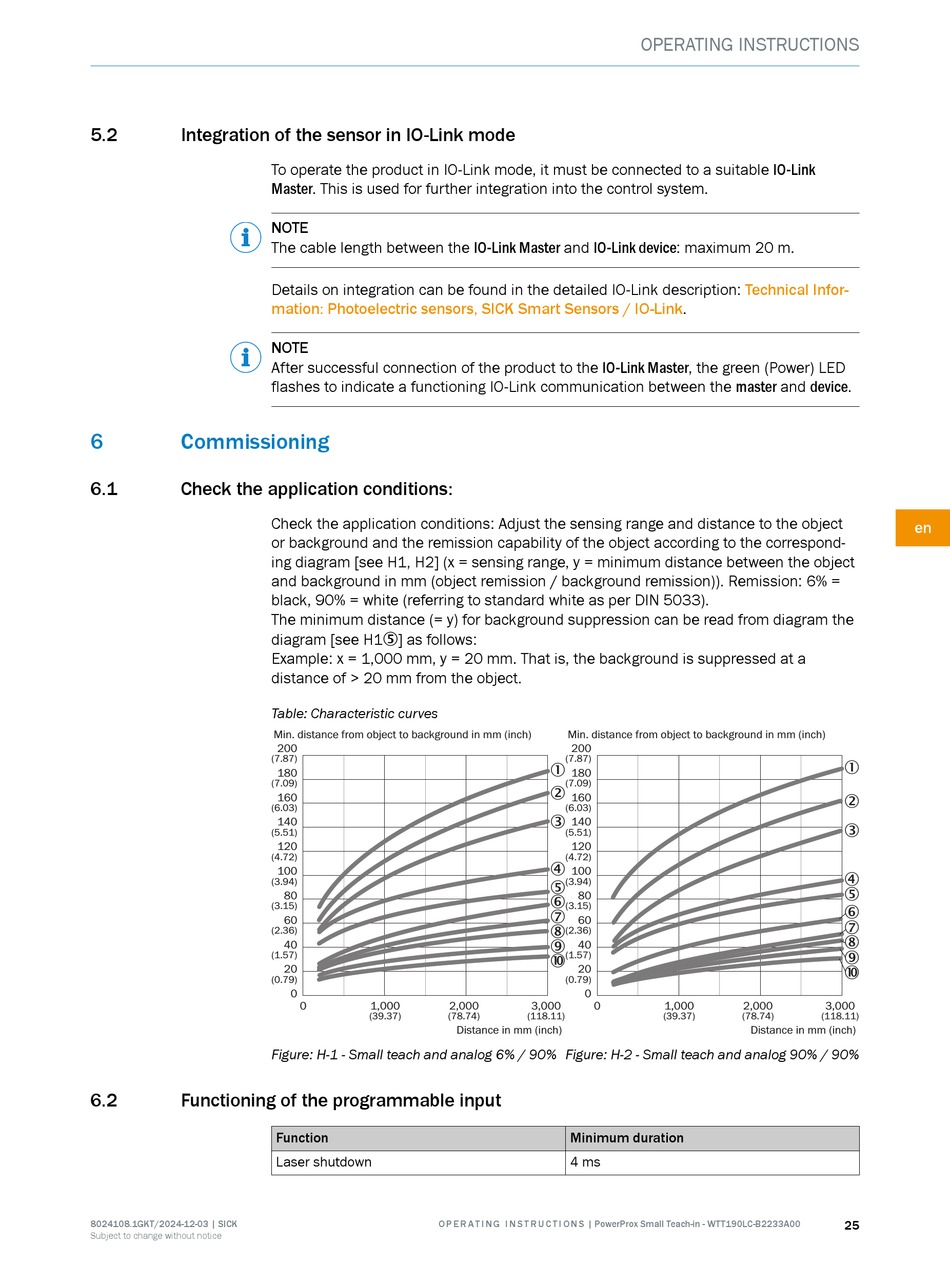

5.2 Integration of the sensor in IO-Link mode
6 Commissioning
6.1 Check the application conditions:
6.2 Functioning of the programmable input
8024108.1GKT/2024-12-03 | SICK
Subject to change without notice
To operate the product in IO-Link mode, it must be connected to a suitable IO-Link
Master. This is used for further integration into the control system.
NOTE
The cable length between the IO-Link Master and IO-Link device: maximum 20 m.
Details on integration can be found in the detailed IO-Link description:
mation: Photoelectric sensors, SICK Smart Sensors /
NOTE
After successful connection of the product to the IO-Link Master, the green (Power) LED
flashes to indicate a functioning IO-Link communication between the master and device.
Check the application conditions: Adjust the sensing range and distance to the object
or background and the remission capability of the object according to the correspond‐
ing diagram [see H1, H2] (x = sensing range, y = minimum distance between the object
and background in mm (object remission / background remission)). Remission: 6% =
black, 90% = white (referring to standard white as per DIN 5033).
The minimum distance (= y) for background suppression can be read from diagram the
diagram [see H15] as follows:
Example: x = 1,000 mm, y = 20 mm. That is, the background is suppressed at a
distance of > 20 mm from the object.
Table: Characteristic curves
Min. distance from object to background in mm (inch)
200
(7.87)
180
(7.09)
160
(6.03)
140
(5.51)
120
(4.72)
100
(3.94)
80
(3.15)
60
(2.36)
40
(1.57)
20
(0.79)
0
1,000 2,000
0
(39.37) (78.74)
Figure: H-1 - Small teach and analog 6% / 90%
Function
Laser shutdown
O P E R A T I N G I N S T R U C T I O N S | PowerProx Small Teach-in - WTT190LC-B2233A00
