3.3 Pushbutton lock
4 Mounting
en
5 Electronics
5.1 Notes on UL approval
24 O P E R A T I N G I N S T R U C T I O N S | PowerProx Small Teach-in - WTT190LC-B2233A00
• Flexible sensor settings
• Digital transmission of sensor signals to the IO-Link Master
• Visualization and configuration of the sensor
• Diagnostics /condition monitoring
•
Device identification
• Easy device replacement
• Events
A detailed description of the configurable functions and associated indices can be
found in the "IO-Link description" technical Information:
electric sensors, SICK Smart Sensors /
Pushbutton lock on: Press the (Run) button for > 1 s
Pushbutton lock off: Press the (Run) button again for > 1 s
Mount the sensor using a suitable mounting bracket (see the SICK range of accesso‐
ries).
Note the sensor's maximum permissible tightening torque of 0.8 Nm.
Note the preferred direction of the object relative to the sensor [F].
Operation in standard I/O mode:
The sensors must be connected in a voltage-free state (U
the graphics must be observed, depending on the connection type:
– Male connector connection: pin assignment
– Cable: Wire color

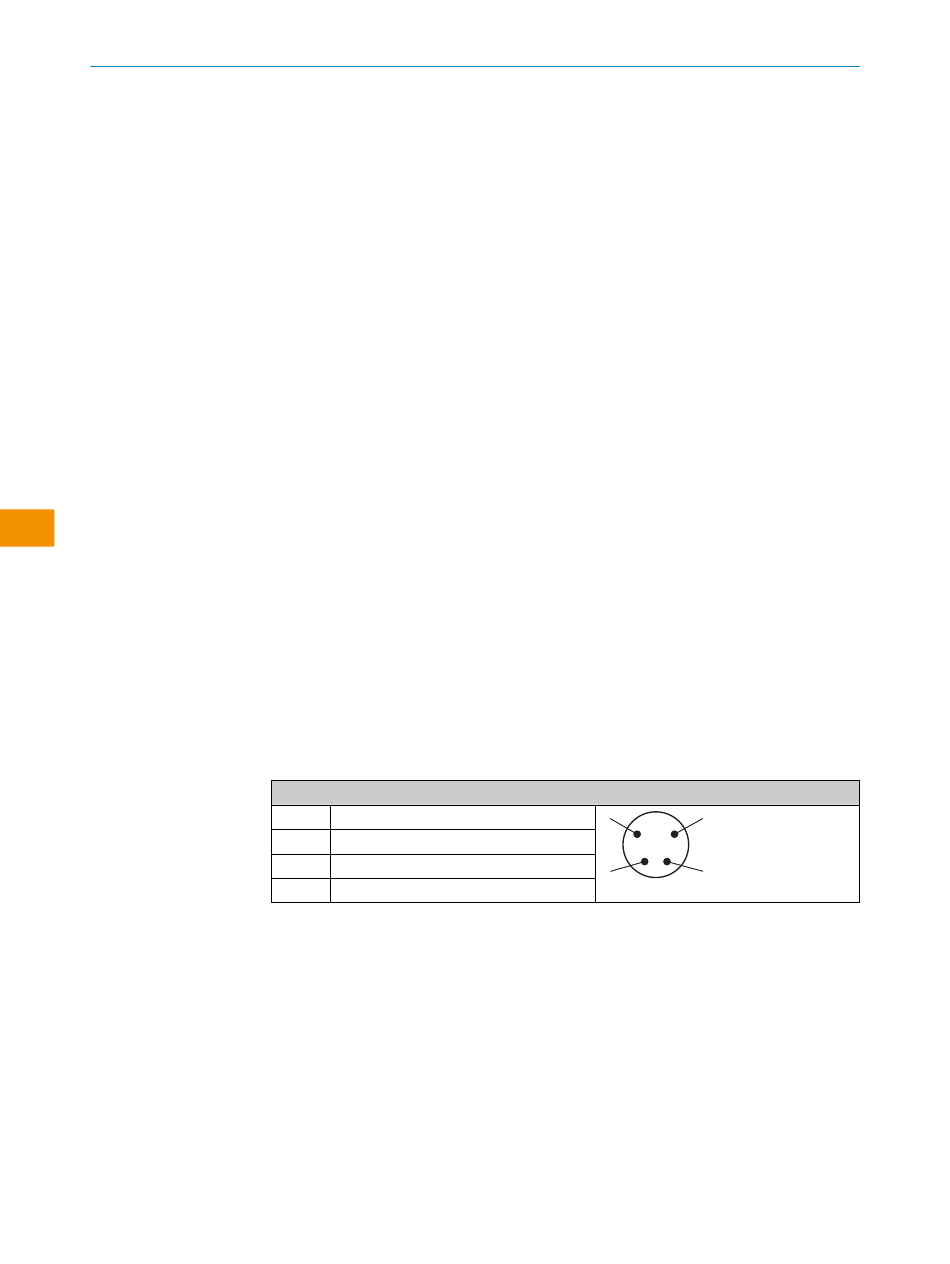

Table 1: Pin assignment
1 (brn) +12 - 24 VDC
2 (wht) Multi function input/output
3 (blu) GND
4 (blk) Switching output, IO-Link communication
Only apply voltage/switch on the voltage supply (U
tions have been established. The green LED lights up on the sensor.
Explanations on connection diagram:
L+ = Supply voltage
MF = Programmable input or output
M = Ground
C/Q = Communication and switching output
The device must be supplied by a Class 2 source of supply.
UL Environmental Rating: Enclosure type 1
Technical Information: Photo‐
IO-Link.
= 0 V). The information in
V
WTT190L
3 2
4 1
> 0 V) once all electrical connec‐
V
