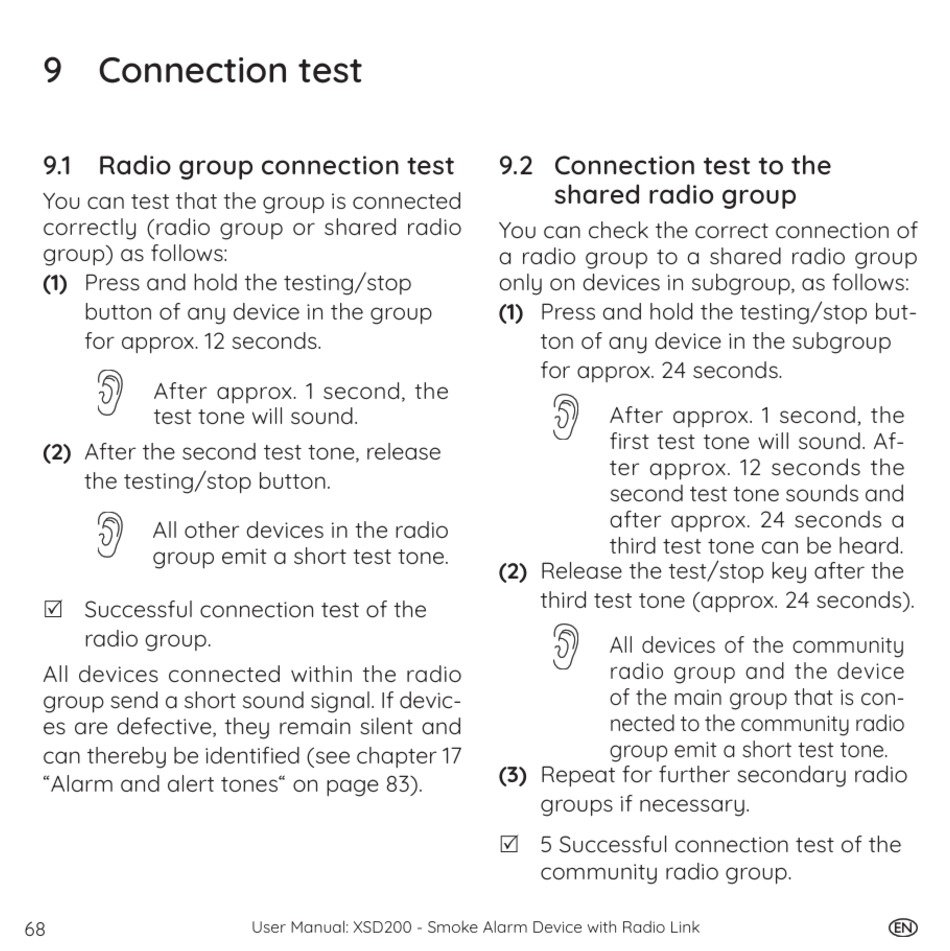

pyrexx XSD200 Gebrauchsanleitung Seite 68

9 Connection test
9.1 Radio group connection test
You can test that the group is connected
correctly (radio group or shared radio
group) as follows:
(1) Press and hold the testing/stop
button of any device in the group
for approx. 12 seconds.
After approx. 1 second, the
test tone will sound.
(2) After the second test tone, release
the testing/stop button.
All other devices in the radio
group emit a short test tone.
5 Successful connection test of the
radio group.
All devices connected within the radio
group send a short sound signal. If devic-
es are defective, they remain silent and
can thereby be identified (see chapter 17
"Alarm and alert tones" on page 83).
68 User Manual: XSD200 - Smoke Alarm Device with Radio Link
9.2 Connection test to the
shared radio group
You can check the correct connection of
a radio group to a shared radio group
only on devices in subgroup, as follows:
(1) Press and hold the testing/stop but-
ton of any device in the subgroup
for approx. 24 seconds.
After approx. 1 second, the
first test tone will sound. Af-
ter approx. 12 seconds the
second test tone sounds and
after approx. 24 seconds a
third test tone can be heard.
(2) Release the test/stop key after the
third test tone (approx. 24 seconds).
All devices of the community
radio group and the device
of the main group that is con-
nected to the community radio
group emit a short test tone.
(3) Repeat for further secondary radio
groups if necessary.
5 5 Successful connection test of the
community radio group.
