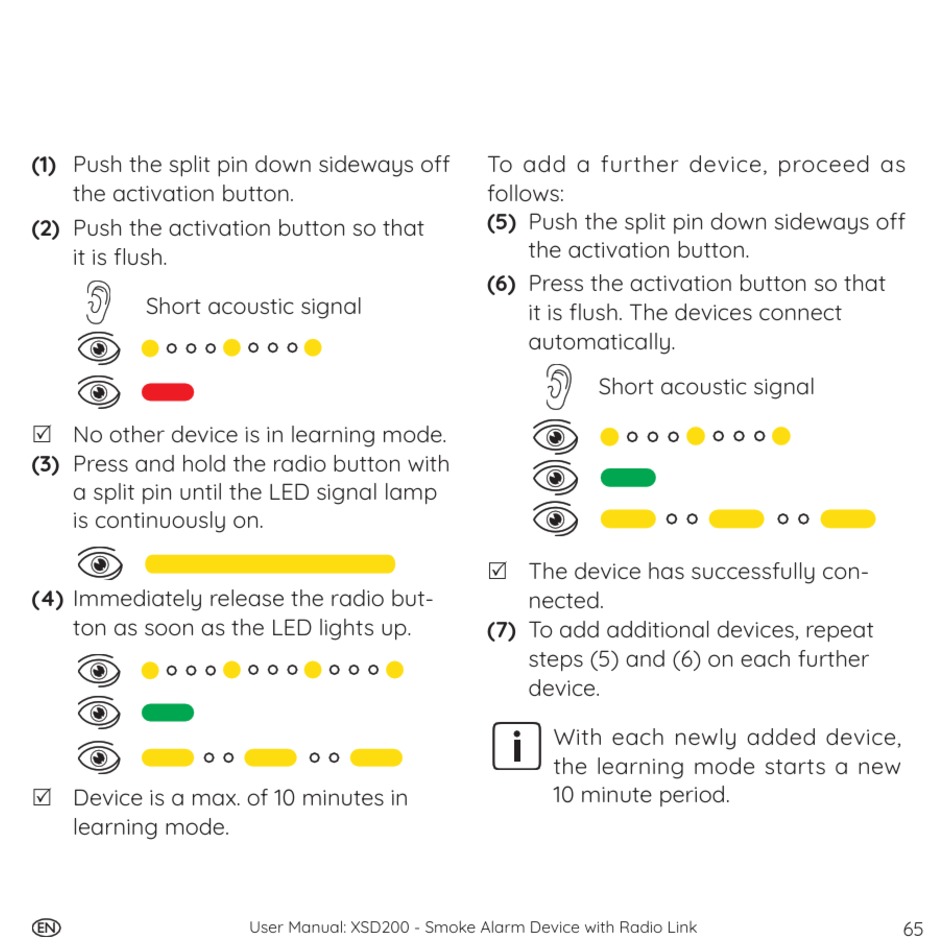

(1) Push the split pin down sideways off
the activation button.
(2) Push the activation button so that
it is flush.
Short acoustic signal
5 No other device is in learning mode.
(3) Press and hold the radio button with
a split pin until the LED signal lamp
is continuously on.
(4) Immediately release the radio but-
ton as soon as the LED lights up.
5 Device is a max. of 10 minutes in
learning mode.
EN
EN
User Manual: XSD200 - Smoke Alarm Device with Radio Link
To add a further device, proceed as
follows:
(5) Push the split pin down sideways off
the activation button.
(6) Press the activation button so that
it is flush. The devices connect
automatically.
Short acoustic signal
5 The device has successfully con-
nected.
(7) To add additional devices, repeat
steps (5) and (6) on each further
device.
With each newly added device,
the learning mode starts a new
10 minute period.
