(7) Activate the device and set it up.
f Observe chapter 6 "Initial activation
and setting up" on page 63.
(8) Position the device on the magnet
carrier.
5 The magnet carrier is attached and
the device positioned on it.
EN
EN

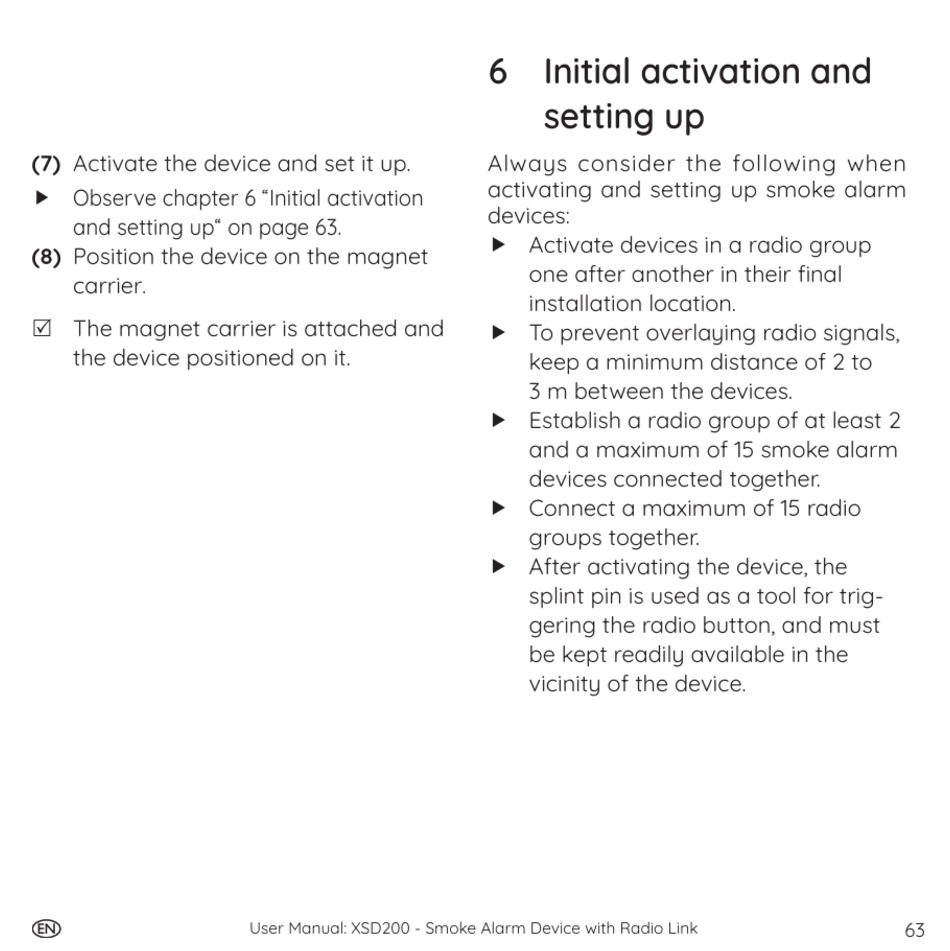

User Manual: XSD200 - Smoke Alarm Device with Radio Link
6 Initial activation and
setting up
Always consider the following when
activating and setting up smoke alarm
devices:
f Activate devices in a radio group
one after another in their final
installation location.
f To prevent overlaying radio signals,
keep a minimum distance of 2 to
3 m between the devices.
f Establish a radio group of at least 2
and a maximum of 15 smoke alarm
devices connected together.
f Connect a maximum of 15 radio
groups together.
f After activating the device, the
splint pin is used as a tool for trig-
gering the radio button, and must
be kept readily available in the
vicinity of the device.
63
