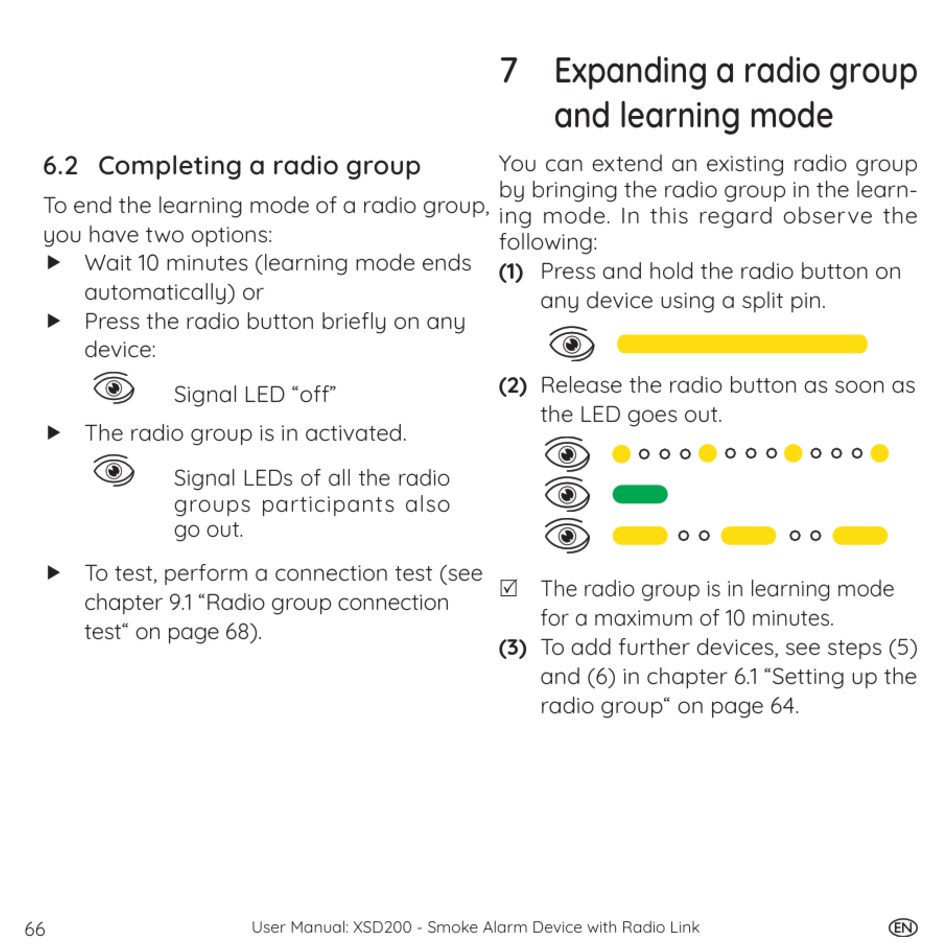

6.2 Completing a radio group
To end the learning mode of a radio group,
you have two options:
f Wait 10 minutes (learning mode ends
automatically) or
f Press the radio button briefly on any
device:
Signal LED "off"
f The radio group is in activated.
Signal LEDs of all the radio
groups participants also
go out.
f To test, perform a connection test (see
chapter 9.1 "Radio group connection
test" on page 68).
66 User Manual: XSD200 - Smoke Alarm Device with Radio Link
7 Expanding a radio group
and learning mode
You can extend an existing radio group
by bringing the radio group in the learn-
ing mode. In this regard observe the
following:
(1) Press and hold the radio button on
any device using a split pin.
(2) Release the radio button as soon as
the LED goes out.
5 The radio group is in learning mode
for a maximum of 10 minutes.
(3) To add further devices, see steps (5)
and (6) in chapter 6.1 "Setting up the
radio group" on page 64.
