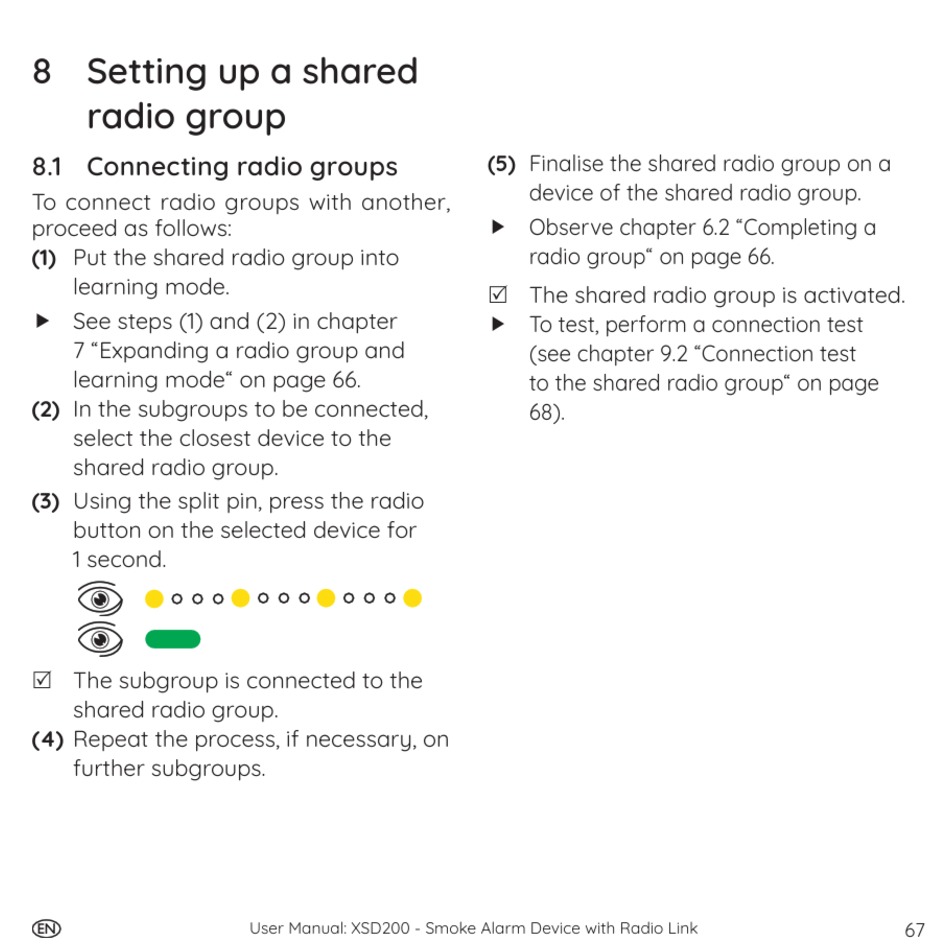

8 Setting up a shared
radio group
8.1 Connecting radio groups
To connect radio groups with another,
proceed as follows:
(1) Put the shared radio group into
learning mode.
f See steps (1) and (2) in chapter
7 "Expanding a radio group and
learning mode" on page 66.
(2) In the subgroups to be connected,
select the closest device to the
shared radio group.
(3) Using the split pin, press the radio
button on the selected device for
1 second.
5 The subgroup is connected to the
shared radio group.
(4) Repeat the process, if necessary, on
further subgroups.
EN
EN
User Manual: XSD200 - Smoke Alarm Device with Radio Link
(5) Finalise the shared radio group on a
device of the shared radio group.
f Observe chapter 6.2 "Completing a
radio group" on page 66.
5 The shared radio group is activated.
f To test, perform a connection test
(see chapter 9.2 "Connection test
to the shared radio group" on page
68).
