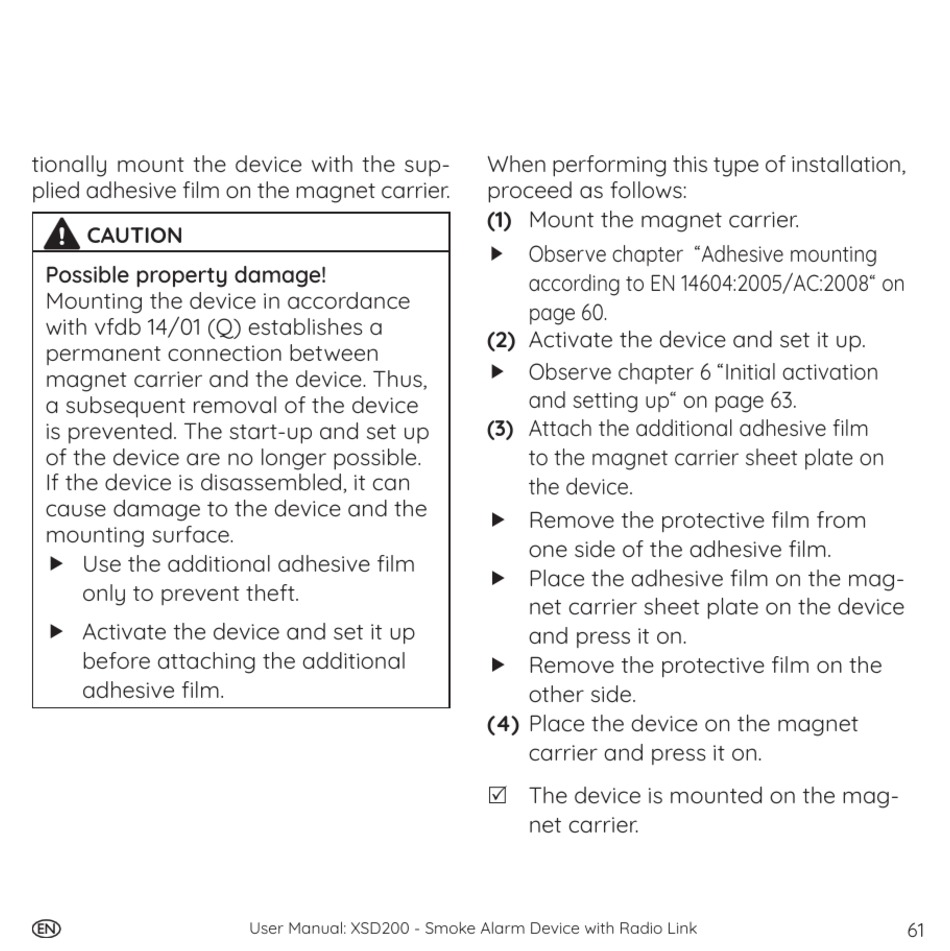

tionally mount the device with the sup-
plied adhesive film on the magnet carrier.
CAUTION
Possible property damage!
Mounting the device in accordance
with vfdb 14/01 (Q) establishes a
permanent connection between
magnet carrier and the device. Thus,
a subsequent removal of the device
is prevented. The start-up and set up
of the device are no longer possible.
If the device is disassembled, it can
cause damage to the device and the
mounting surface.
f Use the additional adhesive film
only to prevent theft.
f Activate the device and set it up
before attaching the additional
adhesive film.
EN
EN
User Manual: XSD200 - Smoke Alarm Device with Radio Link
When performing this type of installation,
proceed as follows:
(1) Mount the magnet carrier.
f Observe chapter "Adhesive mounting
according to EN 14604:2005/AC:2008" on
page 60.
(2) Activate the device and set it up.
f Observe chapter 6 "Initial activation
and setting up" on page 63.
(3) Attach the additional adhesive film
to the magnet carrier sheet plate on
the device.
f Remove the protective film from
one side of the adhesive film.
f Place the adhesive film on the mag-
net carrier sheet plate on the device
and press it on.
f Remove the protective film on the
other side.
(4) Place the device on the magnet
carrier and press it on.
5 The device is mounted on the mag-
net carrier.
