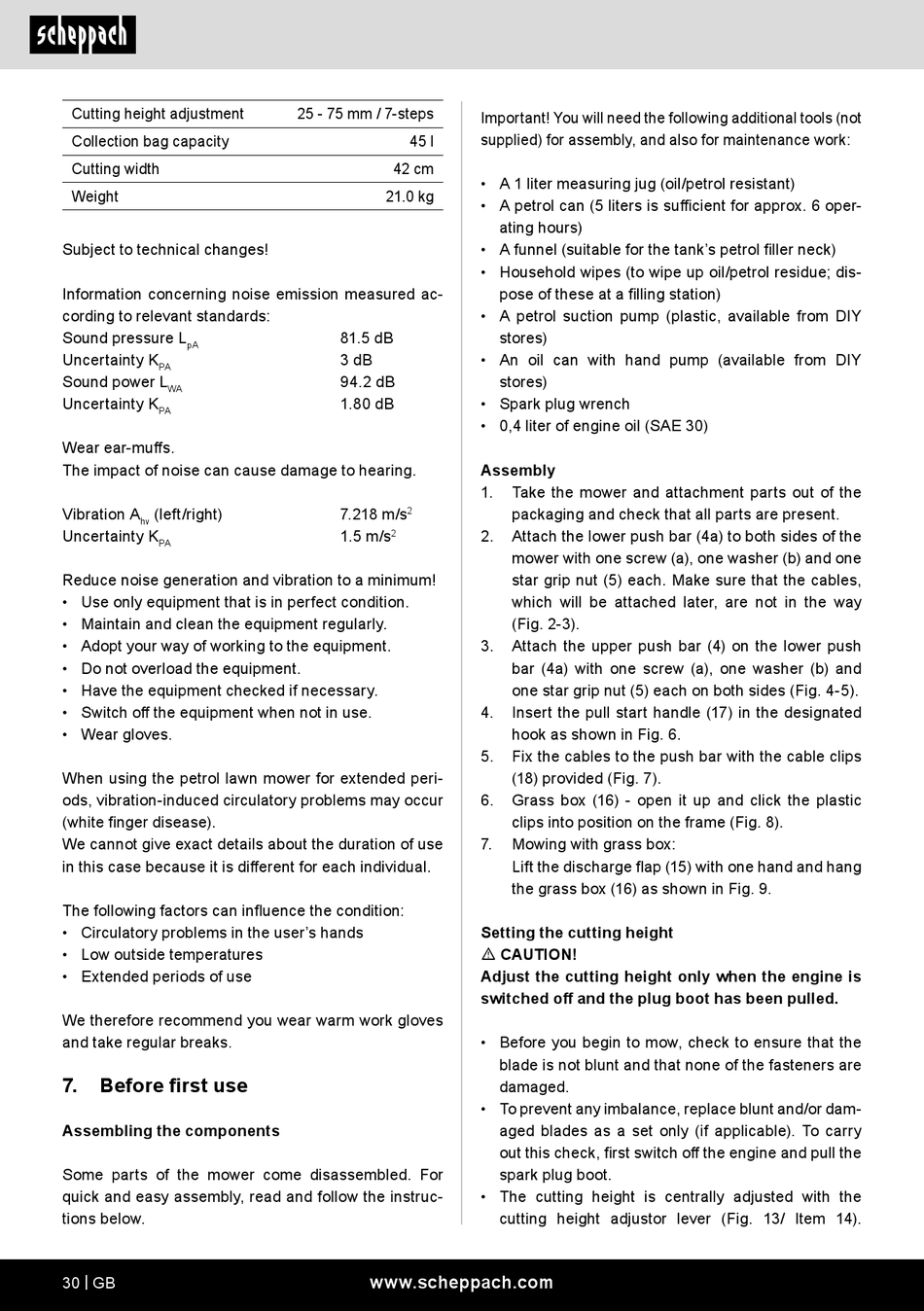

Cutting height adjustment
Collection bag capacity
Cutting width
Weight
Subject to technical changes!
Information concerning noise emission measured ac-
cording to relevant standards:
Sound pressure L
pA
Uncertainty K
PA
Sound power L
WA
Uncertainty K
PA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Vibration A (left/right)
hv
Uncertainty K
PA
Reduce noise generation and vibration to a minimum!
• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.
When using the petrol lawn mower for extended peri-
ods, vibration-induced circulatory problems may occur
(white finger disease).
We cannot give exact details about the duration of use
in this case because it is different for each individual.
The following factors can influence the condition:
• Circulatory problems in the user's hands
• Low outside temperatures
• Extended periods of use
We therefore recommend you wear warm work gloves
and take regular breaks.
7. Before first use
Assembling the components
Some parts of the mower come disassembled. For
quick and easy assembly, read and follow the instruc-
tions below.
30 | GB
25 - 75 mm / 7-steps
45 l
42 cm
21.0 kg
81.5 dB
3 dB
94.2 dB
1.80 dB
7.218 m/s
2
1.5 m/s
2
www.scheppach.com
Important! You will need the following additional tools (not
supplied) for assembly, and also for maintenance work:
• A 1 liter measuring jug (oil/petrol resistant)
• A petrol can (5 liters is sufficient for approx. 6 oper-
ating hours)
• A funnel (suitable for the tankʼs petrol filler neck)
• Household wipes (to wipe up oil/petrol residue; dis-
pose of these at a filling station)
• A petrol suction pump (plastic, available from DIY
stores)
• An oil can with hand pump (available from DIY
stores)
• Spark plug wrench
• 0,4 liter of engine oil (SAE 30)
Assembly
1. Take the mower and attachment parts out of the
packaging and check that all parts are present.
2. Attach the lower push bar (4a) to both sides of the
mower with one screw (a), one washer (b) and one
star grip nut (5) each. Make sure that the cables,
which will be attached later, are not in the way
(Fig. 2-3).
3. Attach the upper push bar (4) on the lower push
bar (4a) with one screw (a), one washer (b) and
one star grip nut (5) each on both sides (Fig. 4-5).
4. Insert the pull start handle (17) in the designated
hook as shown in Fig. 6.
5. Fix the cables to the push bar with the cable clips
(18) provided (Fig. 7).
6. Grass box (16) - open it up and click the plastic
clips into position on the frame (Fig. 8).
7. Mowing with grass box:
Lift the discharge flap (15) with one hand and hang
the grass box (16) as shown in Fig. 9.
Setting the cutting height
m CAUTION!
Adjust the cutting height only when the engine is
switched off and the plug boot has been pulled.
• Before you begin to mow, check to ensure that the
blade is not blunt and that none of the fasteners are
damaged.
• To prevent any imbalance, replace blunt and/or dam-
aged blades as a set only (if applicable). To carry
out this check, first switch off the engine and pull the
spark plug boot.
• The cutting height is centrally adjusted with the
cutting height adjustor lever (Fig. 13/ Item 14).
