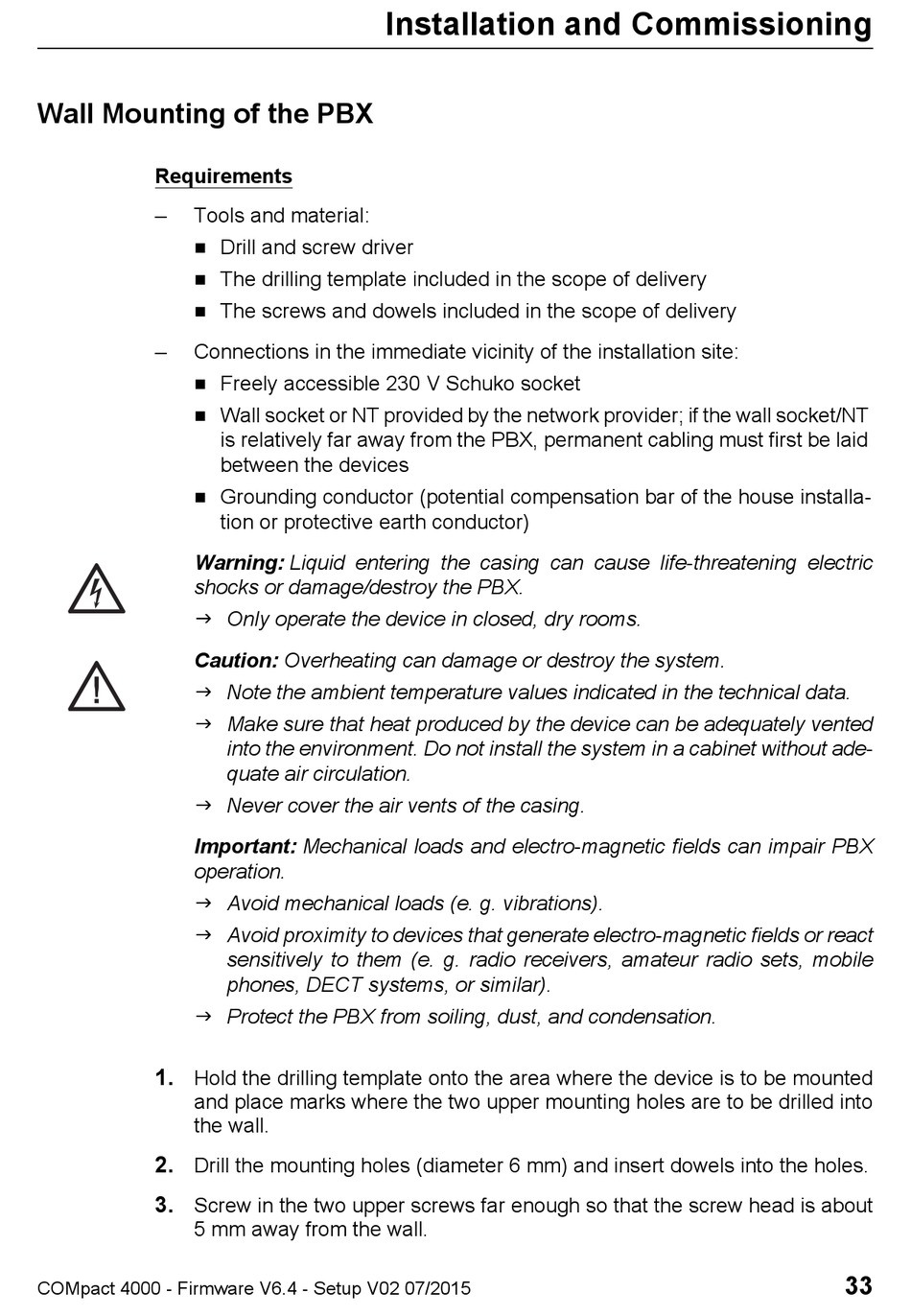

Wall Mounting of the PBX

Requirements
– Tools and material:



– Connections in the immediate vicinity of the installation site:



Warning: Liquid entering the casing can cause life-threatening electric
shocks or damage/destroy the PBX.
 Only operate the device in closed, dry rooms.
Caution: Overheating can damage or destroy the system.
 Note the ambient temperature values indicated in the technical data.
 Make sure that heat produced by the device can be adequately vented
 Never cover the air vents of the casing.
Important: Mechanical loads and electro-magnetic fields can impair PBX
operation.
 Avoid mechanical loads (e. g. vibrations).
 Avoid proximity to devices that generate electro-magnetic fields or react
 Protect the PBX from soiling, dust, and condensation.
1.
Hold the drilling template onto the area where the device is to be mounted
and place marks where the two upper mounting holes are to be drilled into
the wall.
2.
Drill the mounting holes (diameter 6 mm) and insert dowels into the holes.
3.
Screw in the two upper screws far enough so that the screw head is about
5 mm away from the wall.
COMpact 4000 - Firmware V6.4 - Setup V02 07/2015
Installation and Commissioning
Drill and screw driver
The drilling template included in the scope of delivery
The screws and dowels included in the scope of delivery
Freely accessible 230 V Schuko socket
Wall socket or NT provided by the network provider; if the wall socket/NT
is relatively far away from the PBX, permanent cabling must first be laid
between the devices
Grounding conductor (potential compensation bar of the house installa-
tion or protective earth conductor)
into the environment. Do not install the system in a cabinet without ade-
quate air circulation.
sensitively to them (e. g. radio receivers, amateur radio sets, mobile
phones, DECT systems, or similar).
