English

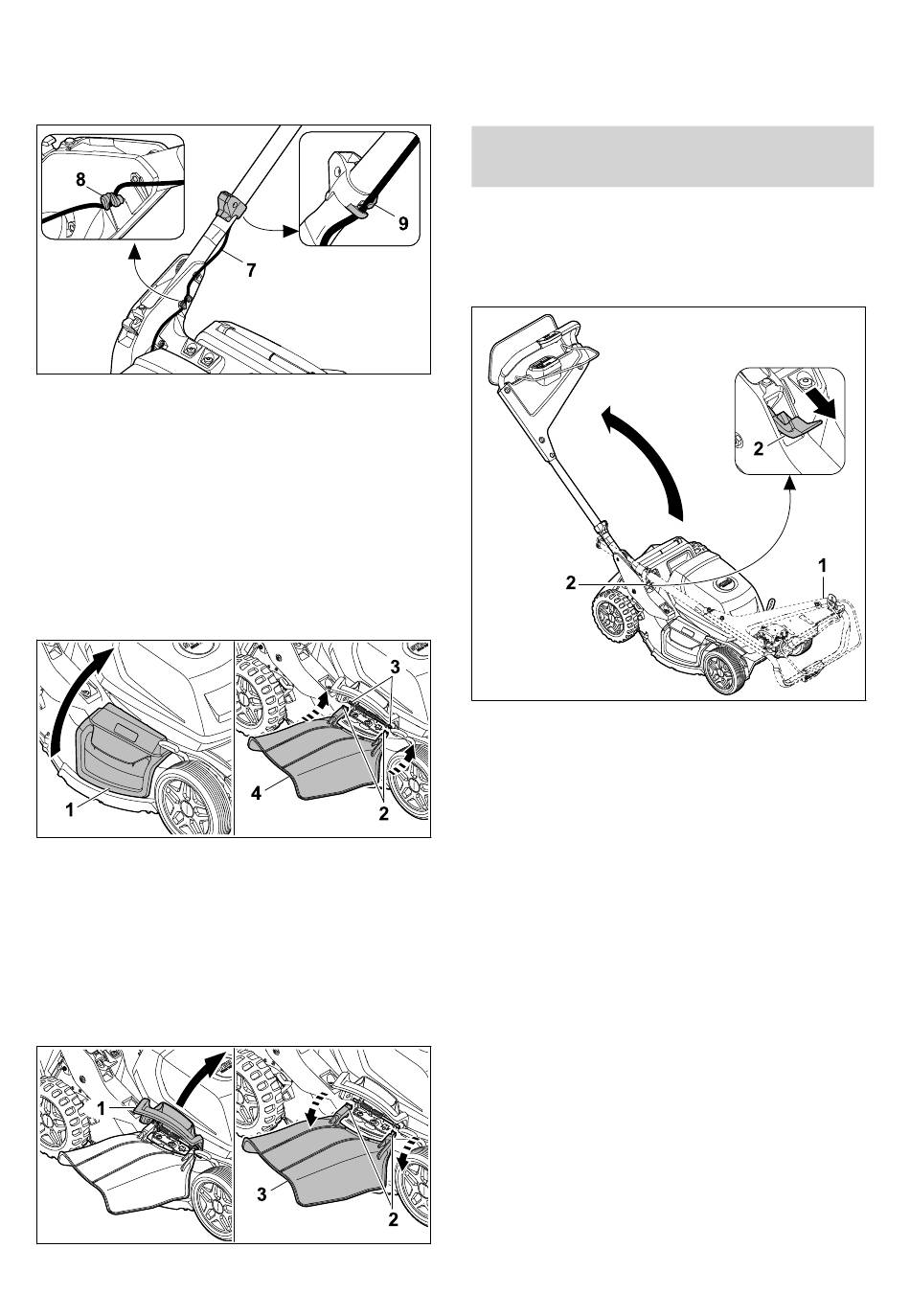

► Place nut (6) at the same height and secure
with a wrench.
► Tighten bolt (5).
► Press cable (7) into holders (8).
► Hook the cable (7) into the cable clip (9).
The handlebar must not be dismantled again.
8.2 Attaching and Detaching the
Extension
8.2.1 Attaching the Extension
► Switch off the lawnmower and remove the bat‐
teries.
► Place the lawn mower on a level surface.
► Open side discharge flap (1) and hold it open.
► Attach both hooks (2) to axle (3) from below.
► Set down side discharge flap (1) on exten‐
sion (4).
8.2.2 Detaching the Extension
► Switch off the lawnmower and remove the bat‐
teries.
► Place the lawn mower on a level surface.
► Open side discharge flap (1) and hold it open.
44
9 Adjusting the Lawn Mower for the User
► Unhook both hooks (2).
► Fold extension (3) upwards and remove.
► Close side discharge flap (1).
9 Adjusting the Lawn Mower
for the User
9.1 Folding Up the Handlebar
► Switch off the lawnmower and remove the bat‐
teries.
► Place the lawn mower on a level surface.
► Hold handlebar (1).
► Press lever (2) downwards and hold.
► Fold up handlebar (1).
► Release lever (2).
The handlebar audibly clicks into place.
9.2 Folding the Handlebar
The handlebar can be folded for space-saving
transport or storage.
► Switch off the lawnmower and remove the bat‐
teries.
► Place the lawn mower on a level surface.
