NOTICE
■ This notice refers to risks which can result in
damage to property.
► Damage to property can be avoided by tak‐
ing the precautions mentioned.
2.3 Symbols in Text
This symbol refers to a chapter in this
instruction manual.
3

Overview

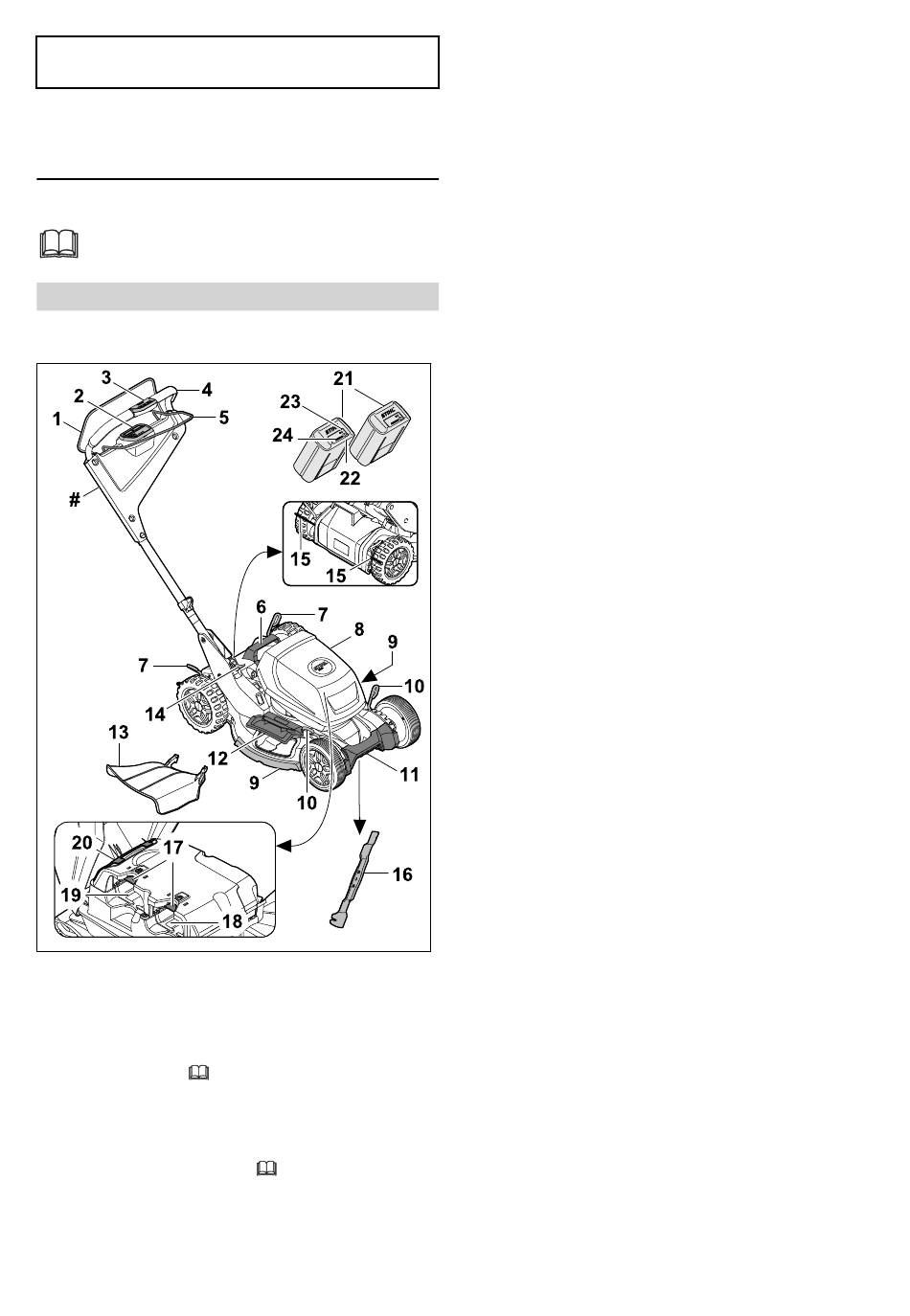

3.1 Lawn Mower and Batteries
1 Control bar for mowing
The control bar for mowing operation
switches the blade on and off together with
the activation button on the operating unit.
2 Operating unit,
The control unit (HMI) is used to activate the
lawn mower, select the mowing modes, read
the battery level and indicate faults.
3 Self-propulsion control,
This control is used to set and read the self-
propulsion speed.
34
3.2
3.3
4 Handlebar
The handlebar is used to hold, guide and
transport the lawn mower.
5 Control bar for self-propulsion
The control bar for self-propulsion switches
the self-propulsion on and off and is used to
set the speed.
6 Handle
The handle is used to transport the lawn
mower.
7 Lever
The lever is used to set the cutting height of
the rear wheels.
8 Flap
The flap covers the batteries.
9 Impact protectors
The protective strips protect the housing.
10 Lever
The lever is used to set the cutting height of
the front wheels.
11 Transport handle
The transport handle is used to transport the
lawn mower.
12 Side discharge flap
The side discharge flap closes off the side
discharge opening.
13 Extension
The extension directs the mown grass to the
ground from the side.
14 Lever
The lever is used to adjust and fold down the
handlebar.
15 Wheel scraper
The wheel scrapers are used to clean the
rear wheels.
16 Blade
The blade mulches the grass.
17 Locking lever
The locking lever keeps the battery in the bat‐
tery compartment.
18 Battery compartment
The battery slot accommodates a battery.
19 Battery compartment
The battery slot accommodates the second
battery.
20 Air filter
The air filter filters the air taken in by the
engine.
