7 Bluetooth® Radio Interface

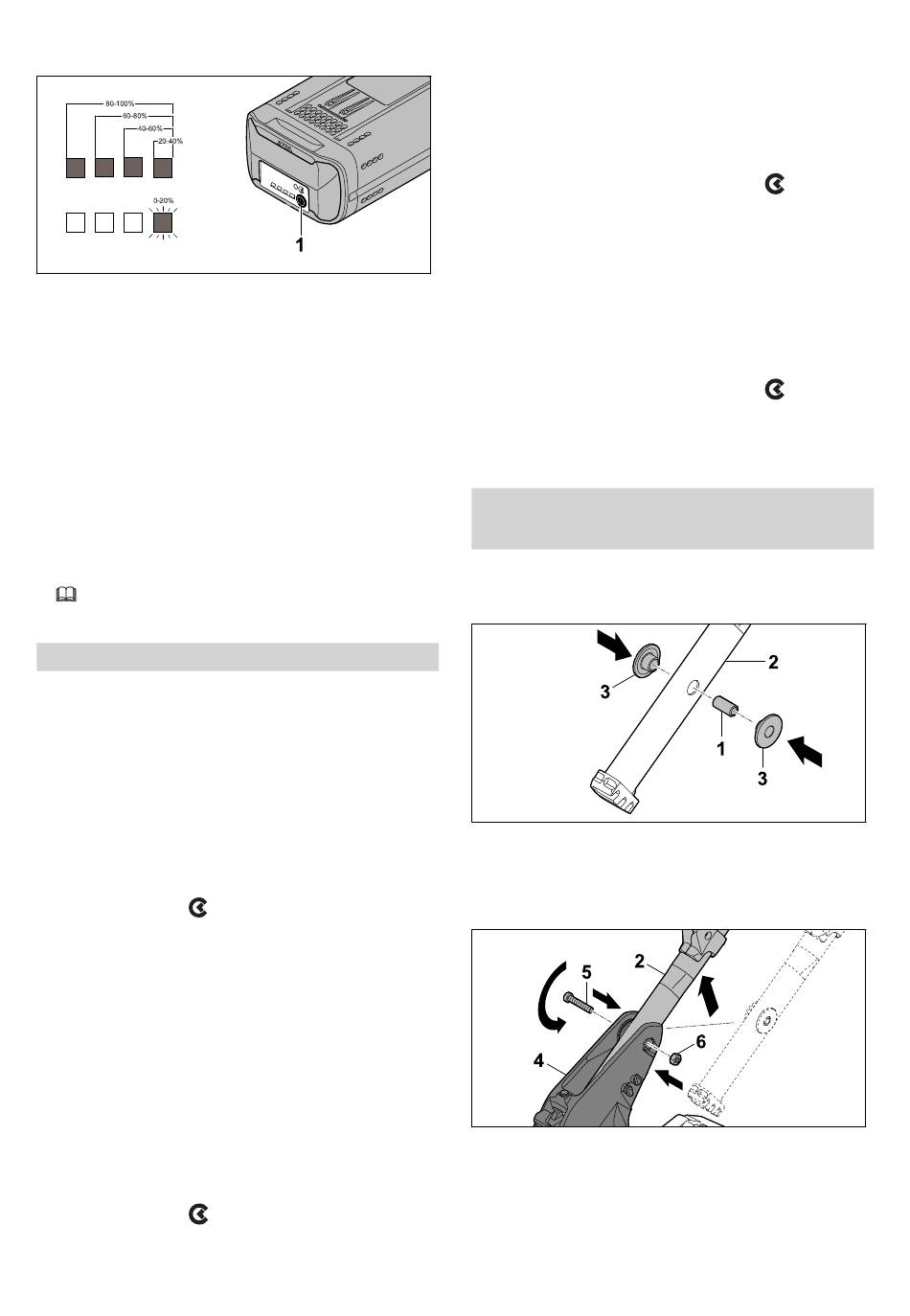

6.2 Displaying the Charge State
► Press button (1).
The LEDs illuminate green for approx. 5 sec‐
onds to indicate the charge state.
► If the right LED flashes green: charge the bat‐
tery.
6.3

LEDs on Battery

The LEDs can show the state of charge or mal‐
functions. The LEDs can glow or flash green or
red.
The state of charge is indicated when the LEDs
glow or flash green.
► If the LEDs glow or flash red: Troubleshooting,
20.1.
There is a malfunction in the mower or battery.
7 Bluetooth® Radio Interface
7.1 Lawn Mower
7.1.1
Enabling the Bluetooth
face
Activate the Bluetooth® radio interface on the
control unit
► Switch the lawn mower on.
► Press and hold the "BLUETOOTH"® button for
about 3 seconds until the "BLUETOOTH"®
LED next to the
seconds.
®
The Bluetooth radio interface on the lawn
mower is activated.
7.1.2
Disabling the Bluetooth
face
► Remove a lawn mower from the STIHL con‐
nected app.
Deactivate the Bluetooth® radio interface on the
control unit
► Press and hold the "BLUETOOTH"® button for
about 10 seconds until the "BLUETOOTH"®
LED next to the
®
The Bluetooth radio interface on the lawn
mower is deactivated.
0478-131-9676-A
®
Radio Inter‐
icon lights blue for about 5
®
Radio Inter‐
icon flashes blue six times.
7.2 Battery
7.2.1
Activating the Bluetooth
face
► If the battery has a Bluetooth
Press and hold the pushbutton until the
®
"BLUETOOTH " LED next to the
lights up blue for approximately 3 seconds.
®
The Bluetooth radio interface on the battery
is activated.
7.2.2
Deactivating the Bluetooth
Interface
► If the battery has a Bluetooth
Press and hold the pushbutton until the
®
"BLUETOOTH " LED next to the
lights up blue six times.
®
The Bluetooth radio interface on the battery
is deactivated.
8 Assembling the Lawn
Mower
8.1 Attaching the Handlebar
► Place the lawn mower on a level surface.
► Press sleeve (1) into the bores in upper han‐
dlebar (2).
► Insert the plastic bushings (3) onto the sleeve
(1).
► Insert the upper handlebar (2) into the handle‐
bar console (4) from below.
► Push bolt (5) through the bores in handlebar
bracket (4) and the sleeve in upper handle‐
bar (2).
