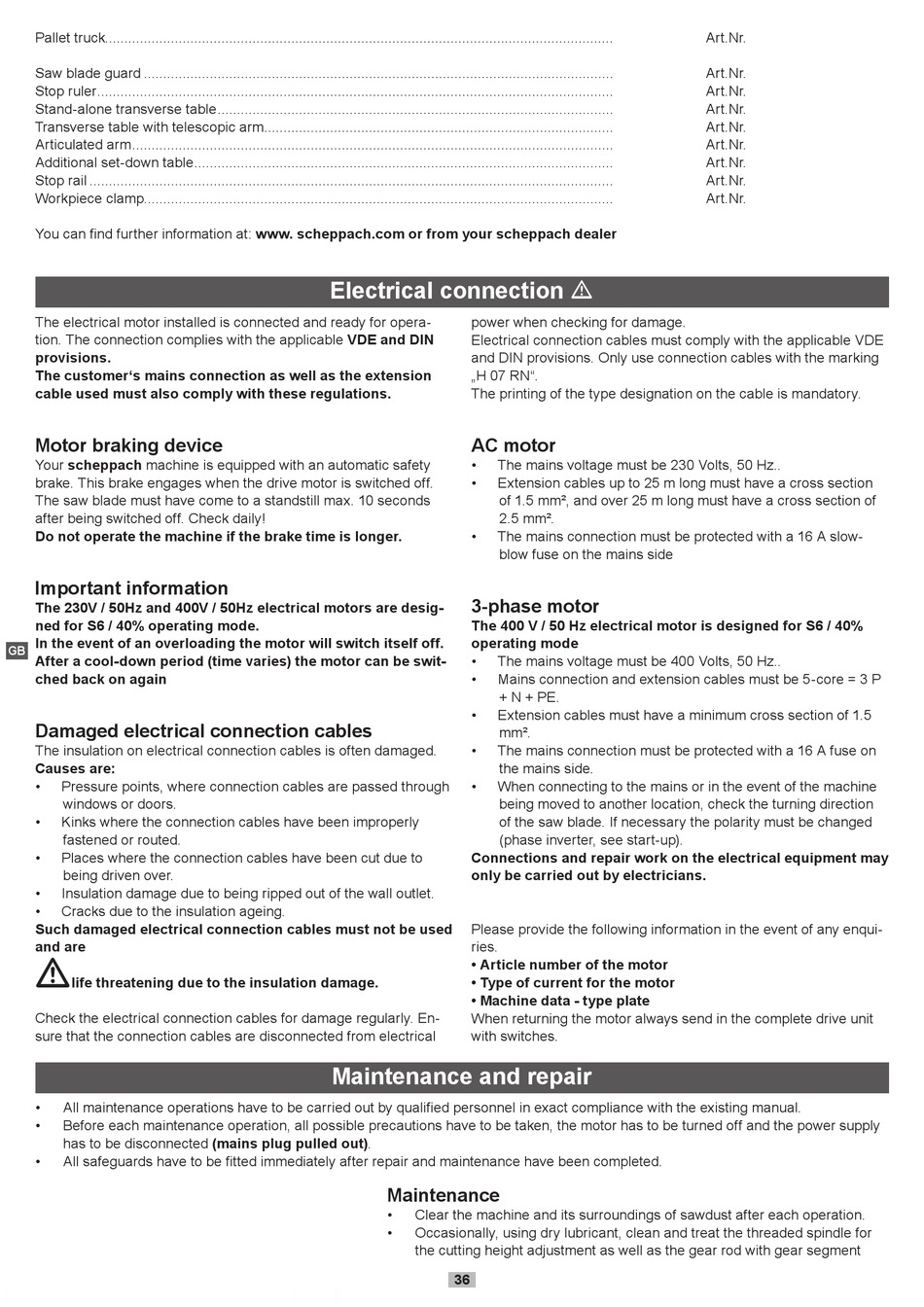

Pallet truck...................................................................................................................................
Saw blade guard .........................................................................................................................
Stop ruler .....................................................................................................................................
Stand-alone transverse table ......................................................................................................
Transverse table with telescopic arm ..........................................................................................
Articulated arm ............................................................................................................................
Additional set-down table ............................................................................................................
Stop rail .......................................................................................................................................
Workpiece clamp.........................................................................................................................
You can find further information at: www. scheppach.com or from your scheppach dealer
The electrical motor installed is connected and ready for opera-
tion. The connection complies with the applicable VDE and DIN
provisions.
The customer's mains connection as well as the extension
cable used must also comply with these regulations.
Motor braking device
Your scheppach machine is equipped with an automatic safety
brake. This brake engages when the drive motor is switched off.
The saw blade must have come to a standstill max. 10 seconds
after being switched off. Check daily!
Do not operate the machine if the brake time is longer.
Important information
The 230V / 50Hz and 400V / 50Hz electrical motors are desig-
ned for S6 / 40% operating mode.
In the event of an overloading the motor will switch itself off.
D GB
After a cool-down period (time varies) the motor can be swit-
ched back on again
Damaged electrical connection cables
The insulation on electrical connection cables is often damaged.
Causes are:
• Pressure points, where connection cables are passed through
windows or doors.
• Kinks where the connection cables have been improperly
fastened or routed.
• Places where the connection cables have been cut due to
being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not be used
and are
m
life threatening due to the insulation damage.
Check the electrical connection cables for damage regularly. En-
sure that the connection cables are disconnected from electrical
• All maintenance operations have to be carried out by qualified personnel in exact compliance with the existing manual.
• Before each maintenance operation, all possible precautions have to be taken, the motor has to be turned off and the power supply
has to be disconnected (mains plug pulled out).
• All safeguards have to be fitted immediately after repair and maintenance have been completed.
Electrical connection m
power when checking for damage.
Electrical connection cables must comply with the applicable VDE
and DIN provisions. Only use connection cables with the marking
„H 07 RN".
The printing of the type designation on the cable is mandatory.
AC motor
• The mains voltage must be 230 Volts, 50 Hz..
• Extension cables up to 25 m long must have a cross section
of 1.5 mm², and over 25 m long must have a cross section of
2.5 mm².
• The mains connection must be protected with a 16 A slow-
blow fuse on the mains side
3-phase motor
The 400 V / 50 Hz electrical motor is designed for S6 / 40%
operating mode
• The mains voltage must be 400 Volts, 50 Hz..
• Mains connection and extension cables must be 5-core = 3 P
+ N + PE.
• Extension cables must have a minimum cross section of 1.5
mm².
• The mains connection must be protected with a 16 A fuse on
the mains side.
• When connecting to the mains or in the event of the machine
being moved to another location, check the turning direction
of the saw blade. If necessary the polarity must be changed
(phase inverter, see start-up).
Connections and repair work on the electrical equipment may
only be carried out by electricians.
Please provide the following information in the event of any enqui-
ries.
• Article number of the motor
• Type of current for the motor
• Machine data - type plate
When returning the motor always send in the complete drive unit
with switches.

Maintenance and repair

Maintenance
• Clear the machine and its surroundings of sawdust after each operation.
• Occasionally, using dry lubricant, clean and treat the threaded spindle for
the cutting height adjustment as well as the gear rod with gear segment
36
