Scheppach Forsa 3.0 Bedienungsanleitung Seite 30

4
7
1
5
6
2
4
2
D GB
3
4
1
3
2
3
1
3
1
2
1
3
2

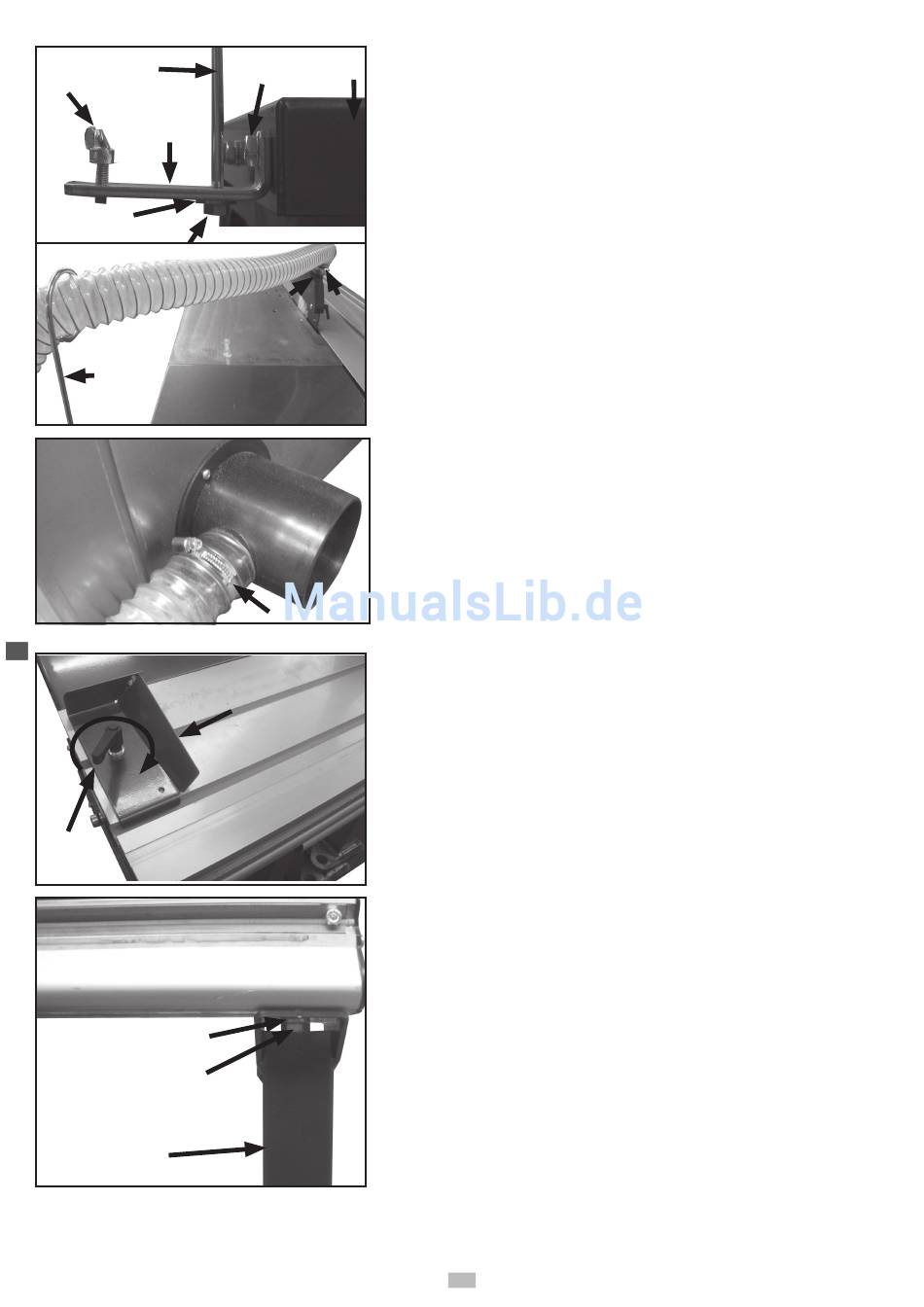

• Screw the retaining plate (1) to the tabletop (3) with 1 hexagonal screw
M8x16 (2) and a hexagonal nut M8.
• Screw the hose bracket (4) into the front hole of the retaining plate (1) and
secure it with the washer A6.4 (5) and with the hexagonal nut M6 (6).
• Screw the wing screw M6 into the rear hole in the retaining plate.
Assembling the suction hose
• Fit the hose clamp (1) to the suction nozzle (2).
Slide the suction hose (2) with the hose clamp (1) onto the suction hood (3)
•
and tighten the hose clamp (1).
• Pull the other end of the suction hose (2) through the opening of the hose
bracket (4).
• Fit the hose clamp (1) to the suction nozzle (2).
• Slide the suction hose (2) with the hose clamp (1) onto the suction nozzle
(3) and tighten the hose clamp (1).
Assembling the trimming device
• Slide the trimming device (1) into the groove on the upper end of the sliding
table (2) and clamp it with the clamping lever (3).
Assembling the support feet
• Screw the support feet (1) to the front part of the sliding table (4) with the 2
hexagonal screws M8 (2) and the 2 washers (3).
30
