Scheppach Forsa 3.0 Bedienungsanleitung Seite 28

1
2
3
2
1
D GB

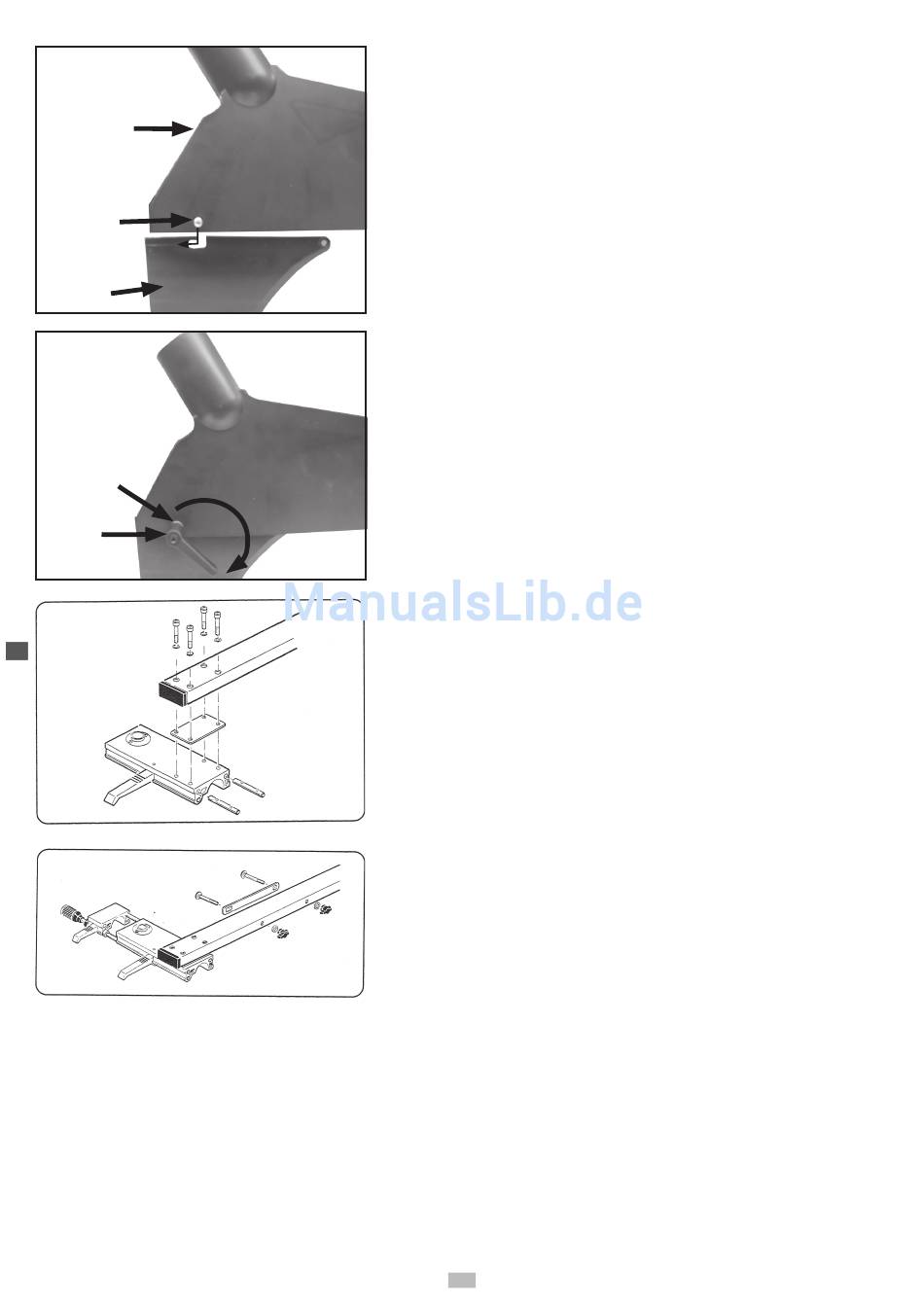

• Insert the coach bolt (2) through the square hole in the protective hood (1).
• Guide the coach bolt (2) installed in the protective hood (1) into the groove
in the clamping wedge (3) and drive this towards the rear.
• Place the washer (2) on the coach bolt.
• Screw the clamping lever (1) onto the coach bolt and tighten it firmly.
Assembling the lengthwise aligning stop
Screw the fence section, in-between plate and guiding slide together. For this
purpose, insert the threaded bolts in the guiding slide.
• 4 intermediate bushes
• 4 cheese head screws
Attach the intermediate plate to fence section. (Do not Tighten)
• 2 cheese head screws M6 x 75
• 2 washers ................................6
• 2 wing nuts ...........................M6
28
M6 x 20
