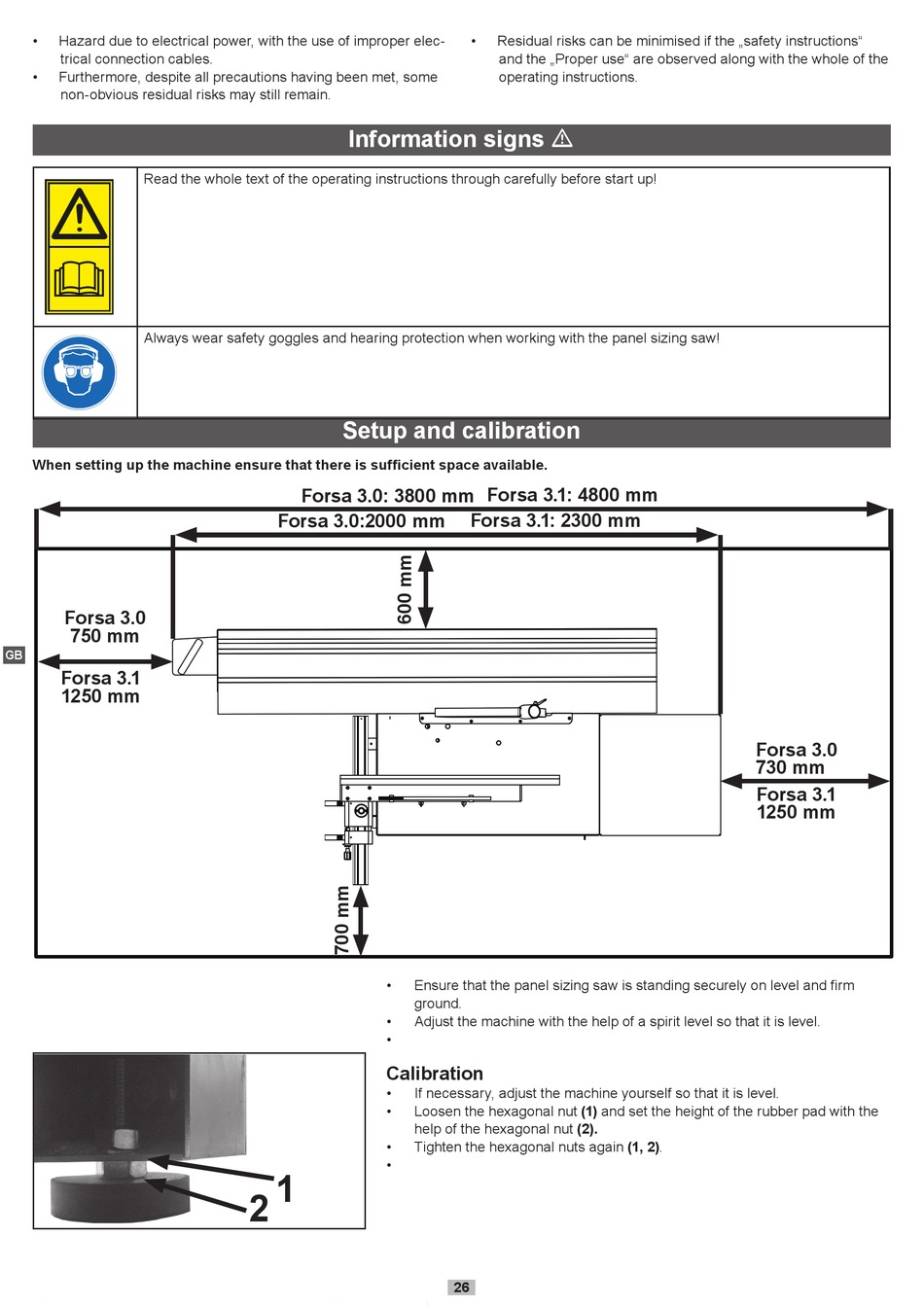

Scheppach Forsa 3.0 Bedienungsanleitung Seite 26

• Hazard due to electrical power, with the use of improper elec-
trical connection cables.
• Furthermore, despite all precautions having been met, some
non-obvious residual risks may still remain.
Read the whole text of the operating instructions through carefully before start up!
Always wear safety goggles and hearing protection when working with the panel sizing saw!
When setting up the machine ensure that there is sufficient space available.
Forsa 3.0
750 mm
D GB
Forsa 3.1
1250 mm
Information signs m
Setup and calibration
Forsa 3.0: 3800 mm
Forsa 3.0:2000 mm
• Ensure that the panel sizing saw is standing securely on level and firm
ground.
• Adjust the machine with the help of a spirit level so that it is level.
•
Calibration
• If necessary, adjust the machine yourself so that it is level.
• Loosen the hexagonal nut (1) and set the height of the rubber pad with the
help of the hexagonal nut (2).
• Tighten the hexagonal nuts again (1, 2).
•
1
2
• Residual risks can be minimised if the „safety instructions"
and the „Proper use" are observed along with the whole of the
operating instructions.
Forsa 3.1: 4800 mm
Forsa 3.1: 2300 mm
26
Forsa 3.0
730 mm
Forsa 3.1
1250 mm
