Saw blade replacement
IMPORTANT: Only use well-sharpened, crack-free, non-deformed original
scheppach saw blades
Only saw blades with a diameter of 250 mm - 270 mm may be installed.
1
Renew the table insert if the sawing gap has become worn.
ATTENTION! Pull out the mains plug before replacing the saw blade!
•

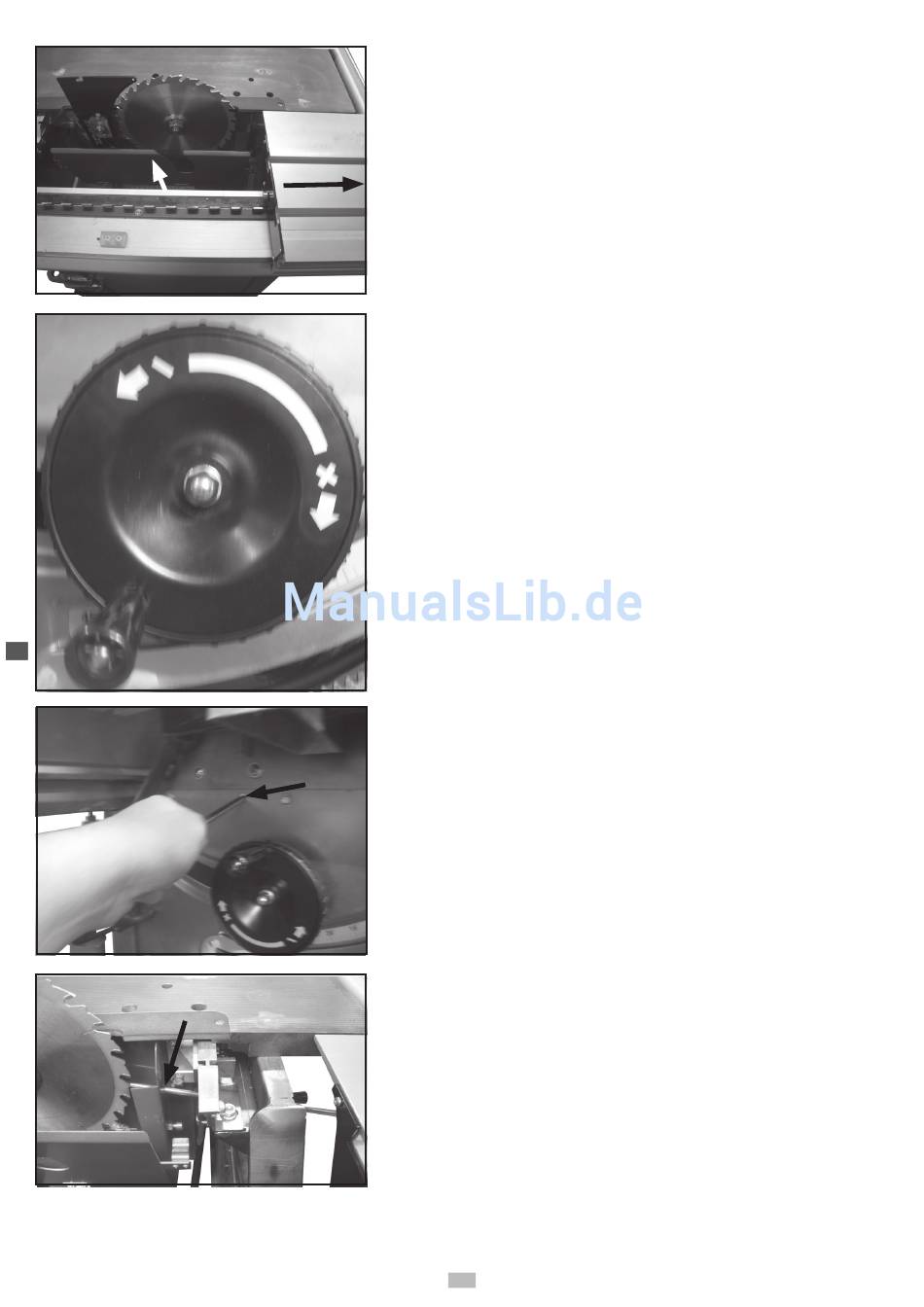

Pull the sliding table (1) towards the operating station until the saw blade is
exposed.
•
Open the protective cover with both hands.
•
Turn the motor all the way up via the handwheel (turn handwheel clockwi-
se).
•
Ensure that the saw blade is at an angle of 90° to the tabletop.
•
Insert the locking mandrel (1) through the front wall of the frame.
1
•
Guide the locking mandrel through the hole in the swivel frame (1)
•
Ensure that the locking mandrel is inserted into the hole in the sawing shaft.
(Turn the sawing shaft if necessary)
32
