Table width enlargement .............................................................................................................
Table extension ...........................................................................................................................
Complete transport device ..........................................................................................................
Comprising:
Wheel set with carry frame .........................................................................................................
•
•
1
3
Transverse cutting gauge
1
•
•
4
•
•
Lengthwise aligning stop and fine tuning
Adjusting the lengthwise aligning stop:
•
4
•
3
•
Fine tuning:
6
•
5
•
•
•
Using the sliding table
•
•
1

After use

•
•

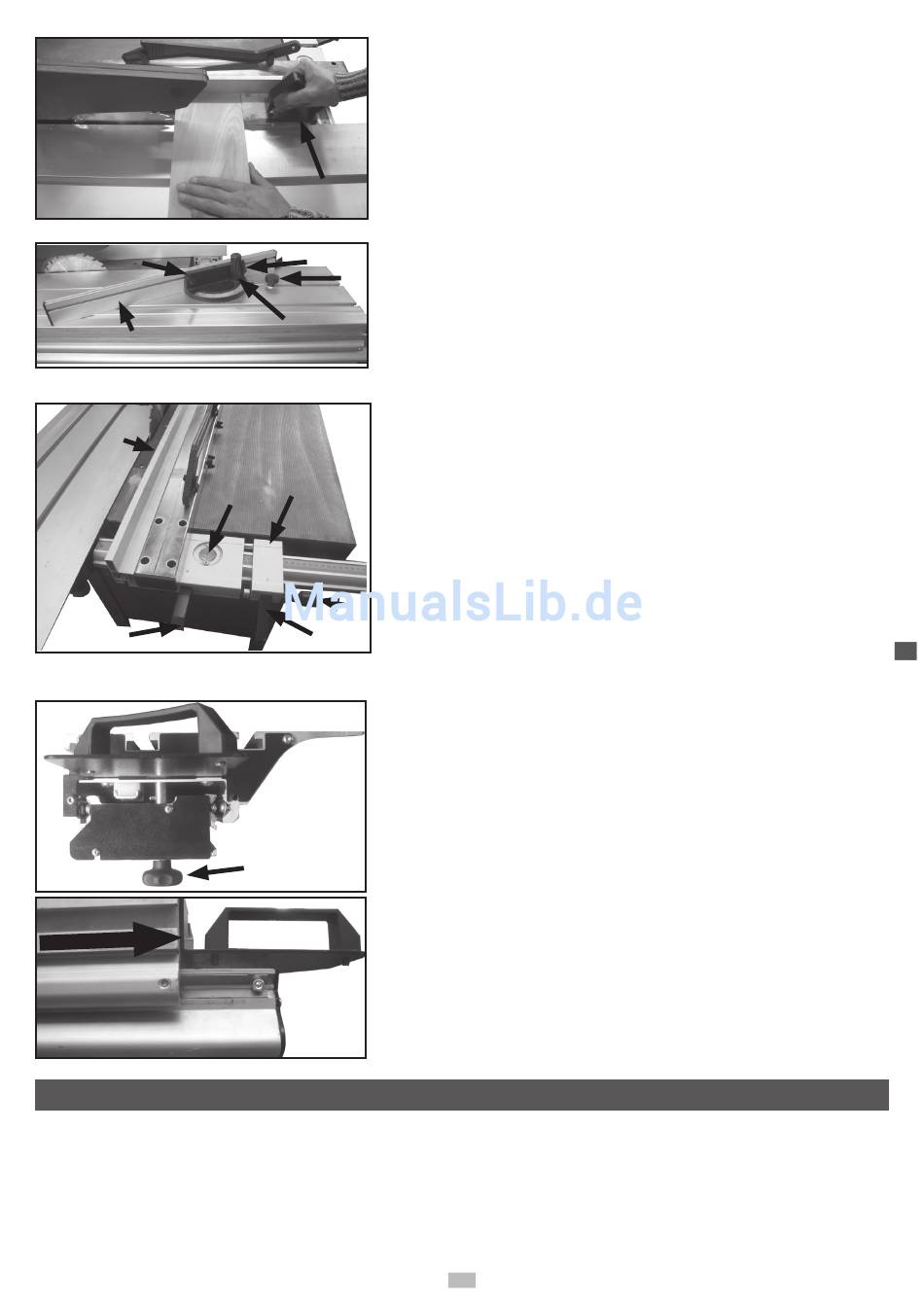

Use the push grip to slide small specially shaped workpieces. You can
make your own custom wooden push blocks and fasten them to the push
grip.
Use the push grip to slide small workpieces. You can make your own cus-
tom wooden push blocks and fasten them to the push grip.
Slide the transverse cutting gauge into the grooves on the sliding table.
Secure the position of the transverse cutting gauge on the sliding table with
the star knob (1).
Adjust the position of the stop rail (2), by loosening the clamping lever (3)
and sliding the stop rail (2).
To adjust the angle of the transverse cutting gauge loosen the hand grip (4)
and tighten it again after adjusting the angle.
Drive the rail (1) of the transverse cutting gauge to the saw blade.
If the rail (1) and the saw blade are not parallel to one another, loosen the
Allen screw in the stop tube (2) and align the rail (1) parallel to the saw
blade.
Check whether the magnifying glass (3), indicates the zero mark precisely
when the rail (1) is driven against the saw blade. If this is not the case, then
loosen the screws on the magnifying glass (3) and set this to the zero mark.
Lock the lever (5) for the fine tuning (4) and leave the lever (7) for the
lengthwise aligning stop open.
Turn the adjusting spindle to carry out fine tuning.
Read off the correct dimension on the magnifying glass (3).
Lock the lever (7) again after the correct adjustment has been carried out.
Pull the star knob (1) downwards and turn it so that it does not return to its
starting position. You can now move the sliding table.
You can llock the sliding table in various different positions. To do so pull
the star knob (1) downwards but do not turn it yet - slide the table a little so
that the star knobs (1) no longer latch. Slide the table far enough that the
star knob (1) latches into the desired position.
Drive the sliding table to the stop each time after starting up by pulling it all
the way out. This is necessary to ensure smooth operation of the sliding
table.
Slide the sliding table back to the starting position.
Accesories
35
Art.Nr.
Art.Nr.
Art.Nr.
Art.Nr.
