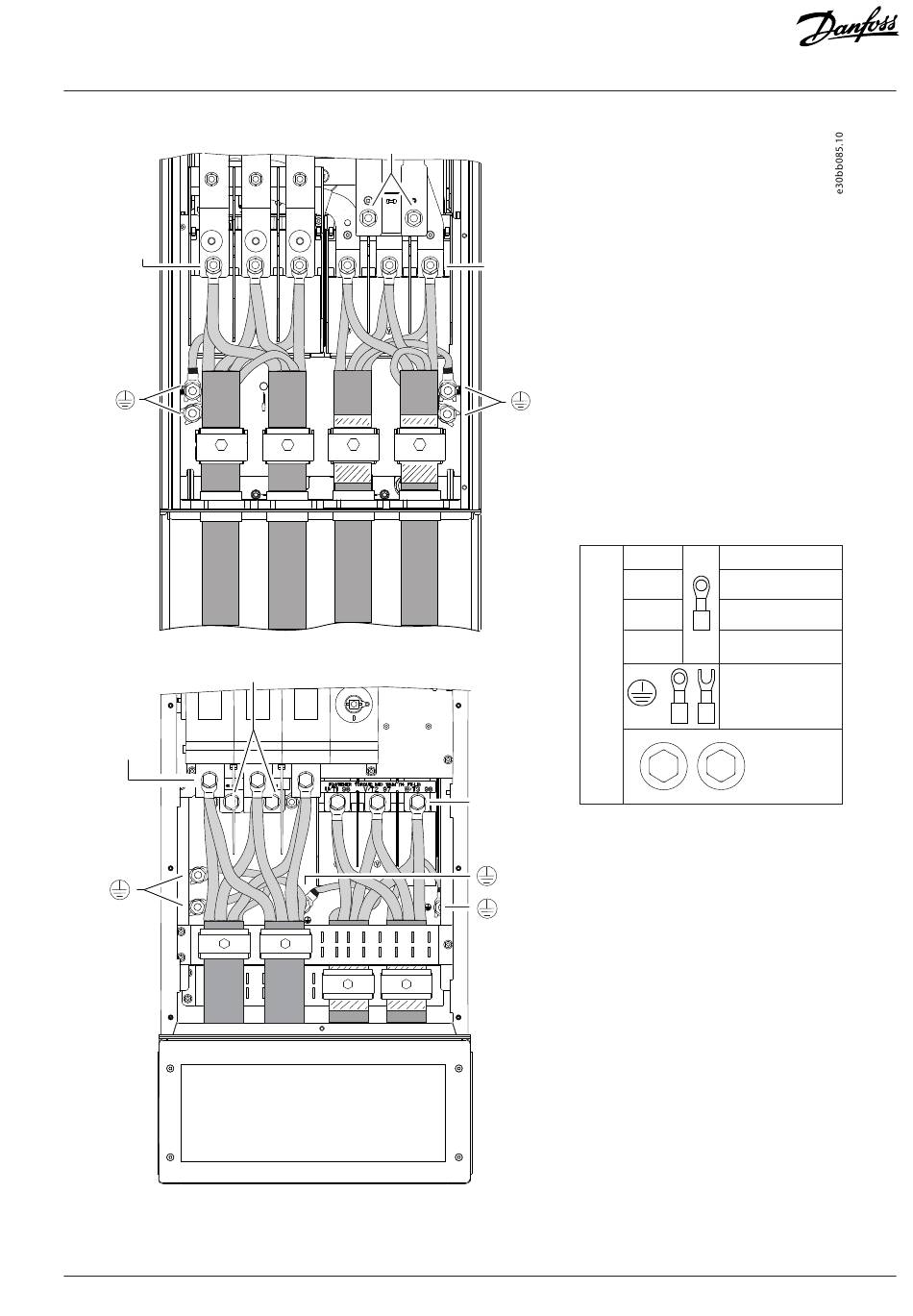

Danfoss VLT FC 102 Installationshandbuch Seite 107

VLT® Frequency Converters, 90–400 kW
D7h
L1, L2, L3
+R, –R / +Regen, –Regen
L1, L2, L3
Danfoss A/S © 2024.06
+R, –R / +Regen, –Regen
U, V, W
U, V, W
L1, L2, L3 M10 [19 Nm (168 in-lb)]
D7h
U, V, W
M10 [19 Nm (168 in-lb)]
+R
M10 [19 Nm (168 in-lb)]
–R
+Regen
M10 [19 Nm (168 in-lb)]
–Regen
M8 [9.6 Nm (84 in-lb)]
17 13
mm mm
AN41701949085201-000201 / 130R1260 | 107
