13. Installing controller
66
13.12 Connecting alarm signalling
The controller may signal alarm states by activating external devices, e.g.
audible alarm or GSM device for sending text messages. The device for alarm
signalling should be connected via a relay as per the following diagram. Alarm
signalling is disabled by setting H output function to Alarms.
Service settings > Output H > Output H function

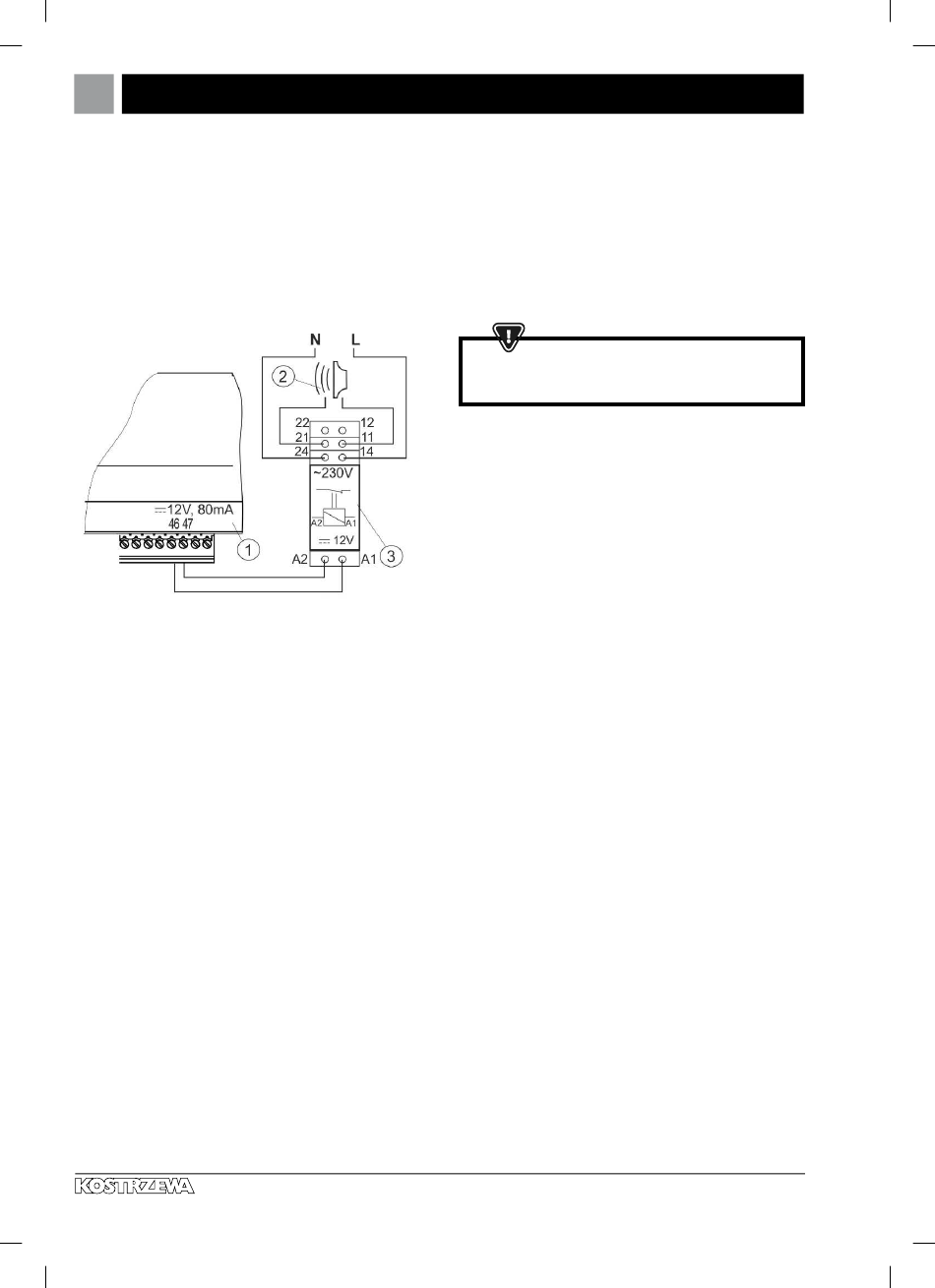

Connecting external alarm device:
1 – controller
2 – external alarm device
3 – relay
Leader in pellet boilers
13.13 Connecting room temperature controller
The controller is compatible with ecoSTER TOUCH and ecoSTER 200 auxiliary
panels which may function as:
•
room thermostat,
•
boiler control panel,
•
alarm signalling device,
•
fuel level indicator.
USE MIN. 0,5mm
CONDUCTORS FOR 12V AND GND
2
CONNECTIONS OF THE ROOM TEMPERATURE CONTROLLER.
Maximum cable length should not exceed 30 m. For higher lengths use cables
with the cross-section over 0,5mm
.
2
•
Four-conductor connection:
Connect in accordance with the wiring diagram.
•
Two-conductor connection:
Connect using external power supply +12VDC min. 400 mA.
Power supply points: Connect GND and VCC/12V to external power supply.
Connect D+ and D- as shown in the wiring diagram.
ecoMAX860P3-S – Simple Controller User Manual – EN 12.17
