13. Installing controller
60
MAXIMUM CABLE LENGTH (6) IS 5M, AND DIAMETER 0.5MM
Screw the panel to the mounting plate with metal sheet screws (2), put the
caps on (3).

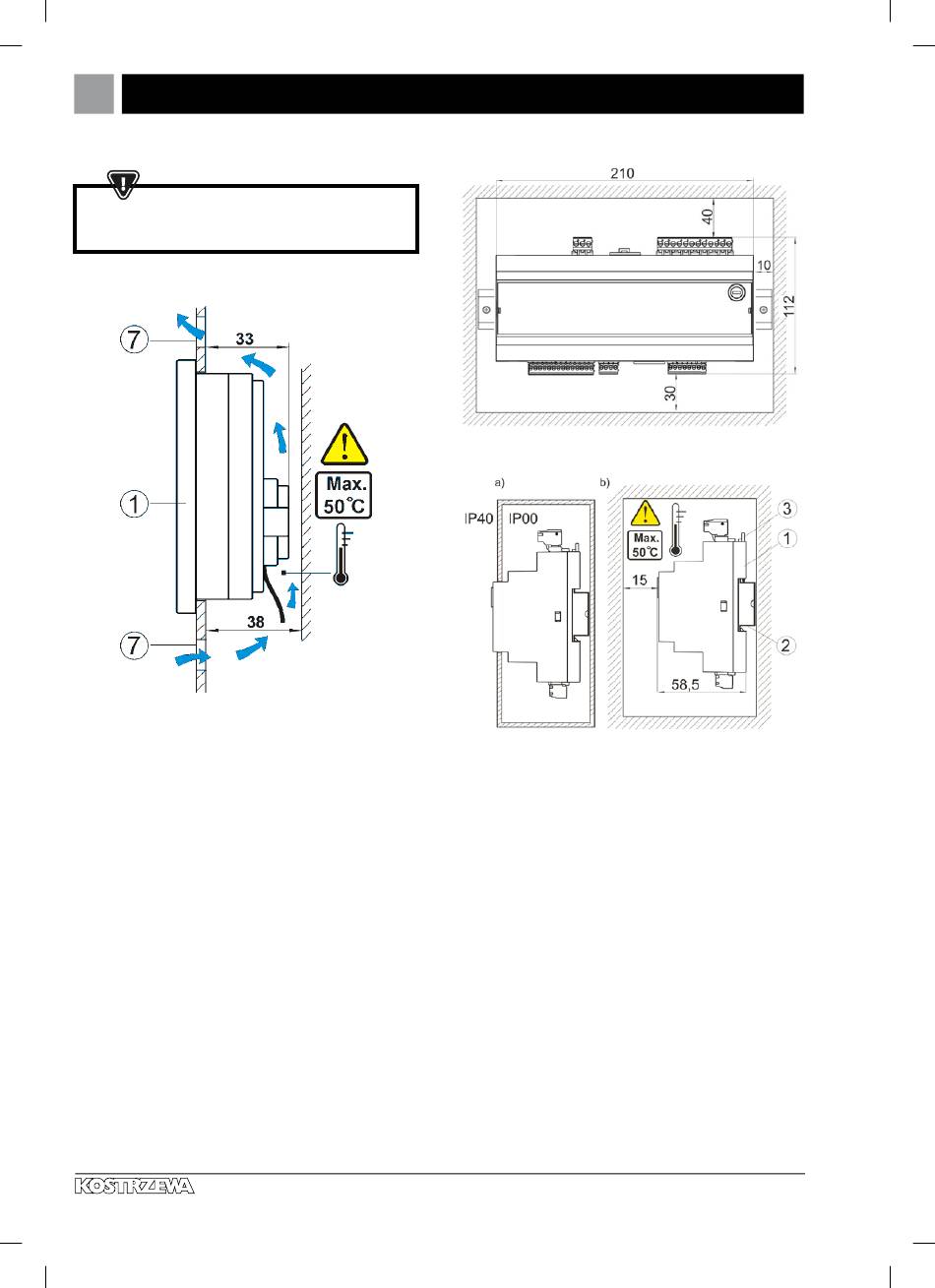

Panel mounting conditions: 1 – panel, 7 – vents for air circulation (note: vents
must not reduce protection rating; vents are not required if ambient tempe-
rature is not exceeded; vents may not always guarantee ambient temperature
reduction - in that case use other methods.
13.3 Installing main module
The main module is flush mounted. The mounting method must provide a
protection rating corresponding to the installation conditions and prevent access
to live components, e.g. terminals. Standard enclosure may be used. User has
access to the module front panel only. The module can also be installed in the
boiler components enclosing the entire module.
The enclosure does not provide dust and water protection. To ensure dust and
water protection, use suitable enclosure. The main module is mounted on a
standard DIN TS35 rail. Fix DIN rail to a rigid surface. Lift the catch (3) before
mounting the module on the rail (2). Release the catch (3) after positioning
the module on the rail. Make sure the device is fixed and cannot be removed
without special tools.
For safety reasons, maintain safe distance between live terminals of the main
module and any conducting (metal components (at least 10 mm). Connecting
cables must be protected against pulling out and loosening or lead to avoid
excessive tension.
Leader in pellet boilers
.
2
module mounting:
a - in a modular enclosure with front panel access,
b - in an enclosure without front panel access,
1 - main module,
13.4 IP protection rating
Main module enclosure provides different protection ratings depending on the
mounting method used. The module installed at the front of the enclosure pro-
vides IP20 protection rating (see data plate). The enclosure at the terminal side
provides IP00 protection rating and thus the main module terminals must be
enclosed to prevent access to this side of the enclosure. To access the terminals,
disconnect mains supply, make sure no voltage is present at the terminals and at
the cables and remove the main module enclosure.
ecoMAX860P3-S – Simple Controller User Manual – EN 12.17
2 - DIN TS35 rail,
3 - catch.
