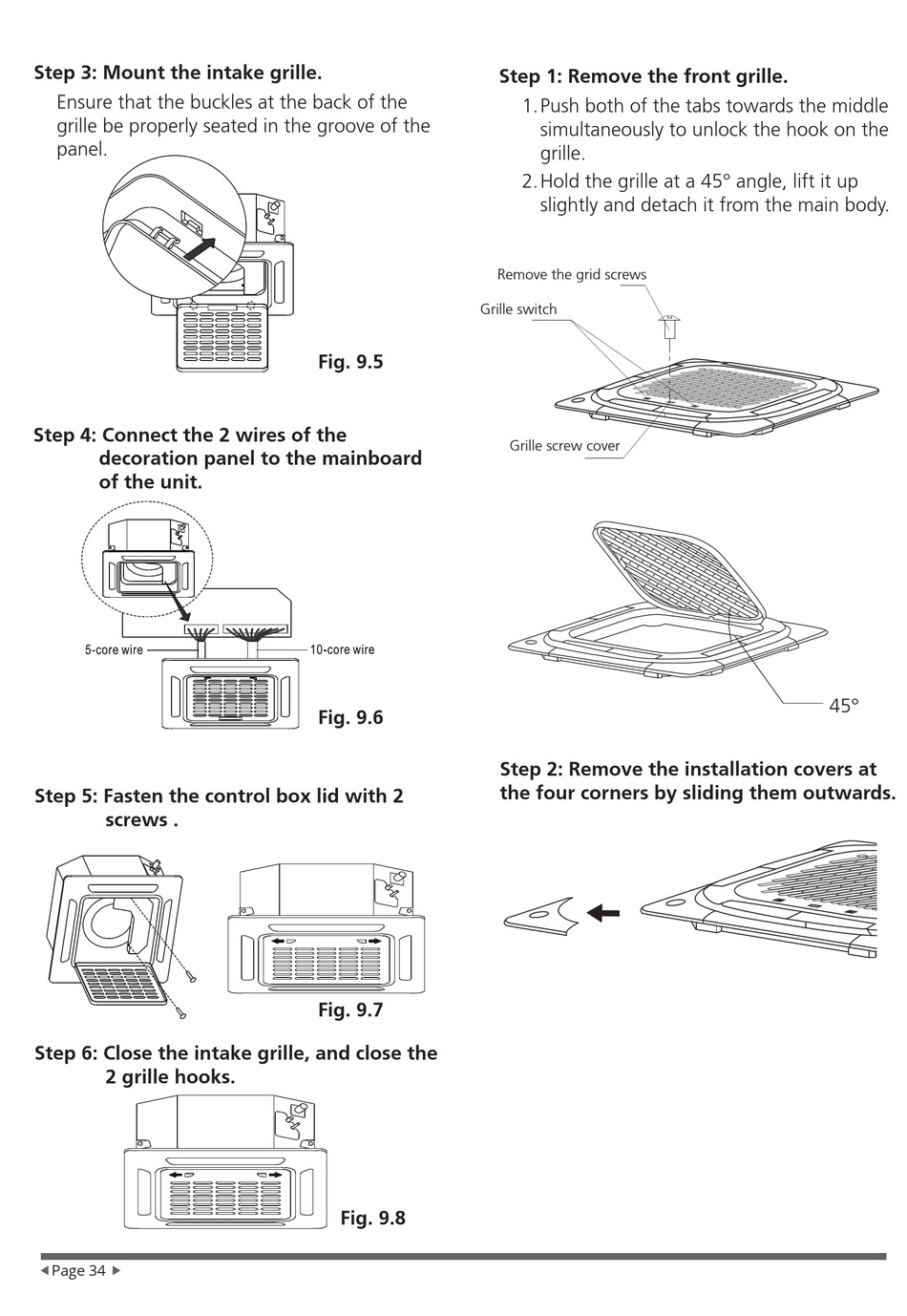

Step 3: Mount the intake grille.
Ensure that the buckles at the back of the
grille be properly seated in the groove of the
panel.
Step 4: Connect the 2 wires of the
decoration panel to the mainboard
of the unit.
Step 5: Fasten the control box lid with 2
screws .
Step 6: Close the intake grille, and close the
2 grille hooks.
ƒPage 34
„
Grille switch
Fig. 9.5
Fig. 9.6
Fig. 9.7
Fig. 9.8
Step 1: Remove the front grille.
1. Push both of the tabs towards the middle
simultaneously to unlock the hook on the
grille.
2. Hold the grille at a 45° angle, lift it up
slightly and detach it from the main body.
Remove the grid screws
Grille screw cover
Step 2: Remove the installation covers at
the four corners by sliding them outwards.
45°
