Indoor Unit - INVENTOR LV6CI-12WiFiR Installationshandbuch

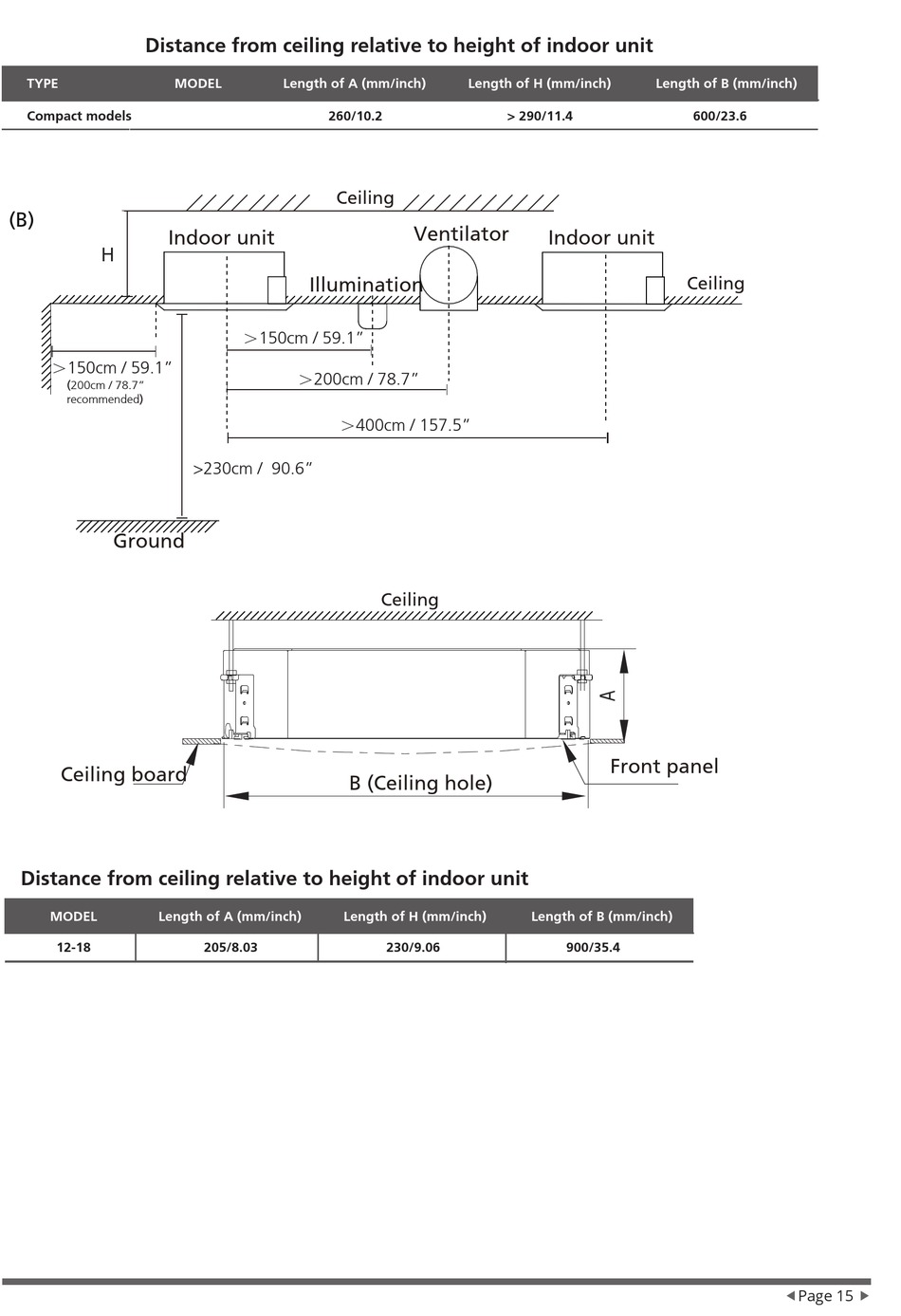

Distance from ceiling relative to height of indoor unit
TYPE
Compact models
(B)

Indoor unit

H
＞150cm / 59.1"
(200cm / 78.7"
recommended)
Ground
Ceiling board
Distance from ceiling relative to height of indoor unit
MODEL Length of A (mm/inch)
12-18
Page 22
 
MODEL Length of A (mm/inch)
260/10.2
Ceiling
Illumination
＞150cm / 59.1"
＞200cm / 78.7"
＞400cm / 157.5"
>230cm / 90.6"
Length of H (mm/inch)
205/8.03
Length of H (mm/inch)
> 290/11.4
Ventilator
Ceiling
B (Ceiling hole)
230/9.06
Length of B (mm/inch)
600/23.6
Indoor unit
Ceiling
Front panel
Length of B (mm/inch)
900/35.4
ƒPage 15
„
