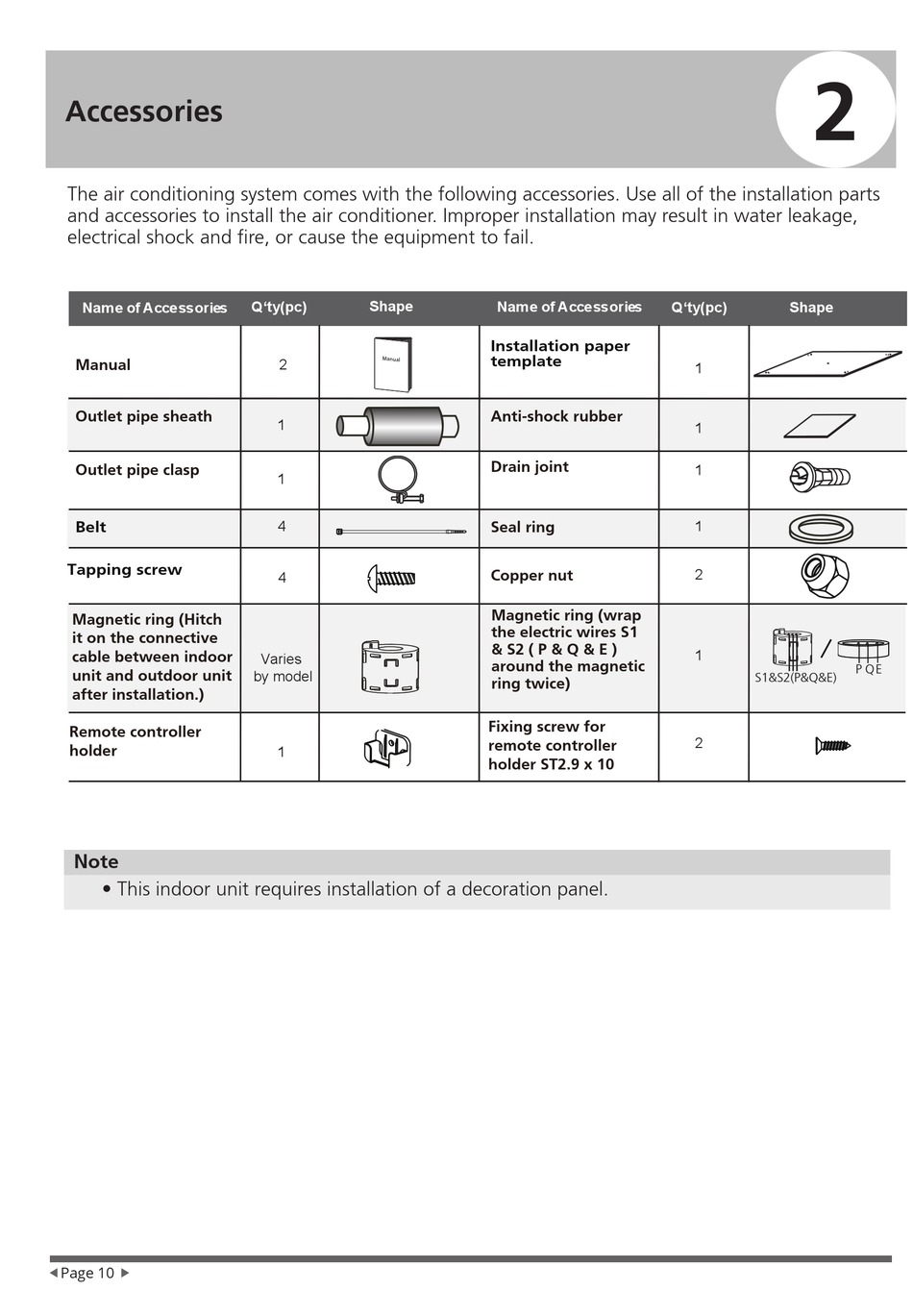

Accessories
The air conditioning system comes with the following accessories. Use all of the installation parts
and accessories to install the air conditioner. Improper installation may result in water leakage,
electrical shock and fire, or cause the equipment to fail.
Name of Accessories
Manual
Outlet pipe sheath
Outlet pipe clasp
Belt
Tapping screw
Magnetic ring (Hitch
it on the connective
cable between indoor
unit and outdoor unit
after installation.)
Remote controller
holder
Note
• This indoor unit requires installation of a decoration panel.
ƒPage 10
„
Q'ty(pc) Shape
2
1
1
4
4
Varies
by model
1
Name of Accessories
Installation paper
template
Anti-shock rubber
Drain joint
Seal ring
Copper nut
Magnetic ring (wrap
the electric wires S1
& S2 ( P & Q & E )
around the magnetic
ring twice)
Fixing screw for
remote controller
holder ST2.9 x 10
2
Q'ty(pc) Shape
1
1
1
1
2
1
S1&S2(P&Q&E)
2
 Page 9
P Q E

