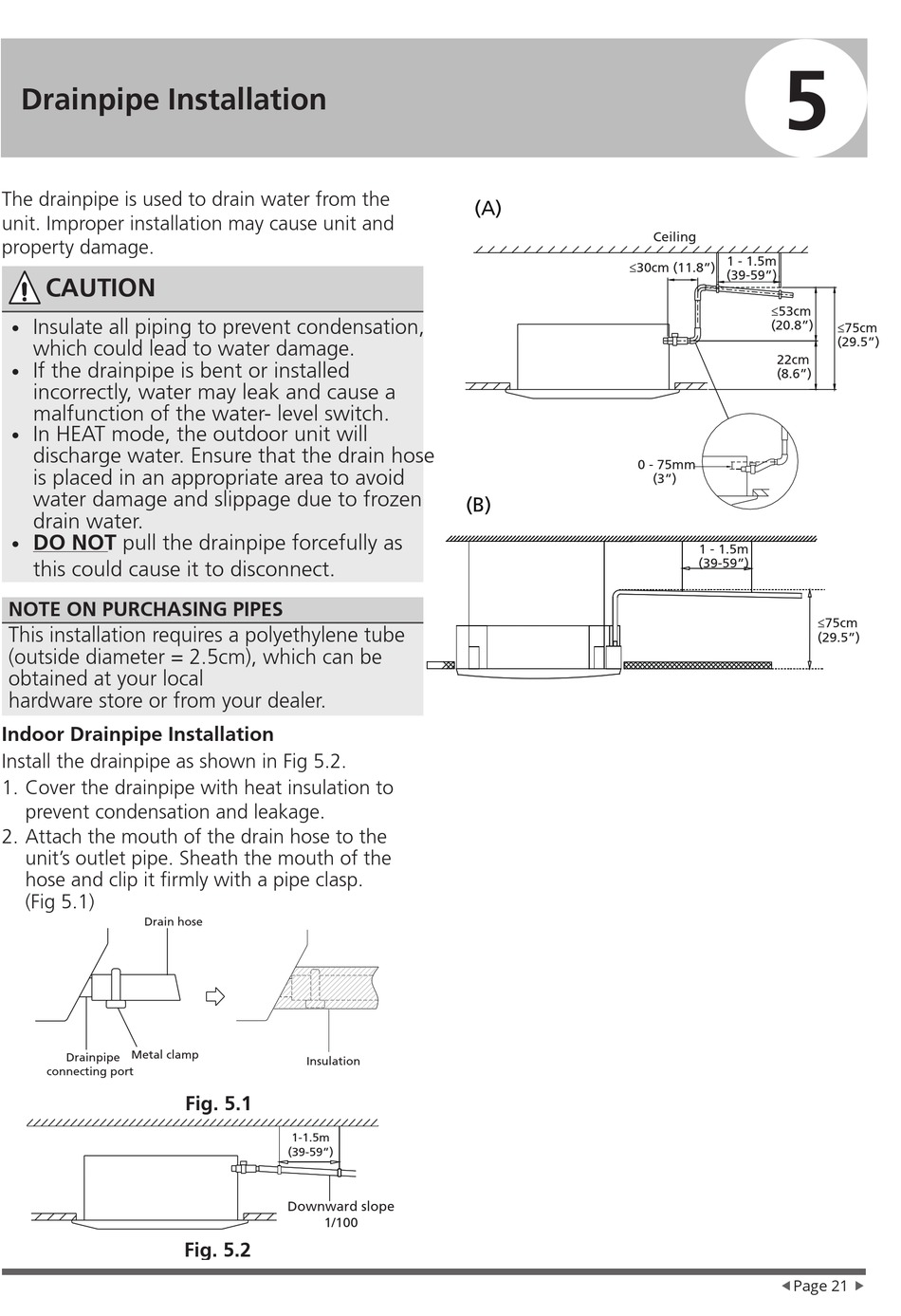

Drainpipe Installation
The drainpipe is used to drain water from the
unit. Improper installation may cause unit and
property damage.
CAUTION
Insulate all piping to prevent condensation,
•
which could lead to water damage.
If the drainpipe is bent or installed
•
incorrectly, water may leak and cause a
malfunction of the water- level switch.
In HEAT mode, the outdoor unit will
•
discharge water. Ensure that the drain hose
is placed in an appropriate area to avoid
water damage and slippage due to frozen
drain water.
DO NOT pull the drainpipe forcefully as
•
this could cause it to disconnect.
NOTE ON PURCHASING PIPES
This installation requires a polyethylene tube
(outside diameter = 2.5cm), which can be
obtained at your local
hardware store or from your dealer.
Indoor Drainpipe Installation
Install the drainpipe as shown in Fig 5.2.
1. Cover the drainpipe with heat insulation to
prevent condensation and leakage.
2. Attach the mouth of the drain hose to the
unit's outlet pipe. Sheath the mouth of the
hose and clip it rmly with a pipe clasp.
(Fig 5.1)
Drain hose
Metal clamp
Drainpipe
connecting port
Insulation
Fig. 5.1
1-1.5m
(39-59")
Downward slope
1/100
Fig. 5.2
(A)
≤30cm (11.8")
(B)
5
Ceiling
1 - 1.5m
(39-59")
≤53cm
(20.8")
22cm
(8.6")
0 - 75mm
(3")
1 - 1.5m
(39-59")
ƒPage 21
Page 17
≤75cm
(29.5")
≤75cm
(29.5")
„
