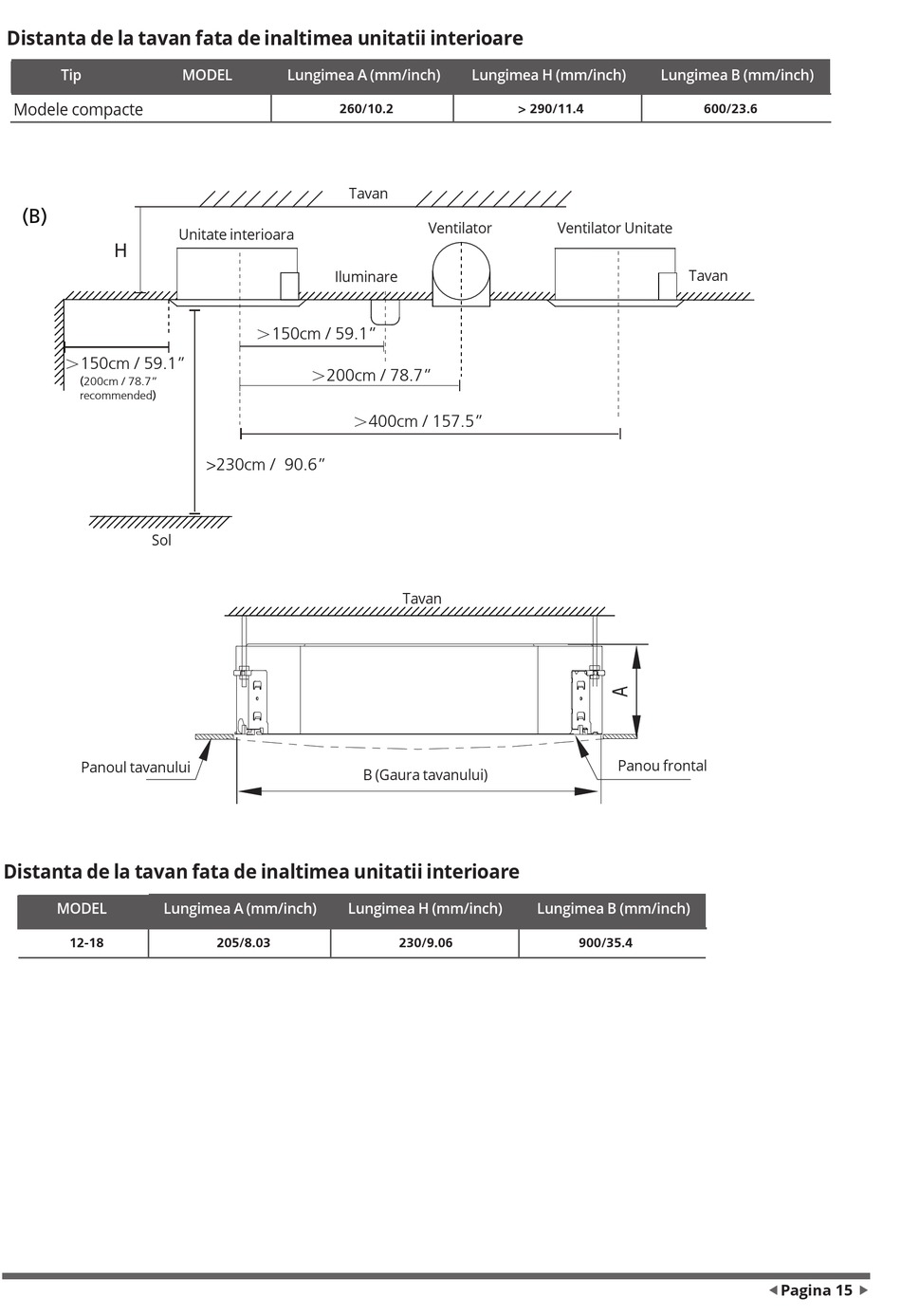

Distanta de la tavan fata de inaltimea unitatii interioare
Distance from ceiling relative to height of indoor unit
Tip MODEL Lungimea A (mm/inch) Lungimea H (mm/inch) Lungimea B (mm/inch)
Modele compacte
260/10.2 > 290/11.4 600/23.6
Tavan
(B)
Ventilator Ventilator Unitate
Unitate interioara
H
Tavan
Iluminare
＞150cm / 59.1"
＞150cm / 59.1"
＞200cm / 78.7"
(200cm / 78.7"
recommended)
＞400cm / 157.5"
>230cm / 90.6"
Sol
Tavan
Panou frontal
Panoul tavanului
B (Gaura tavanului)
Distanta de la tavan fata de inaltimea unitatii interioare
MODEL Lungimea A (mm/inch) Lungimea H (mm/inch) Lungimea B (mm/inch)
12-18 205/8.03 230/9.06 900/35.4
