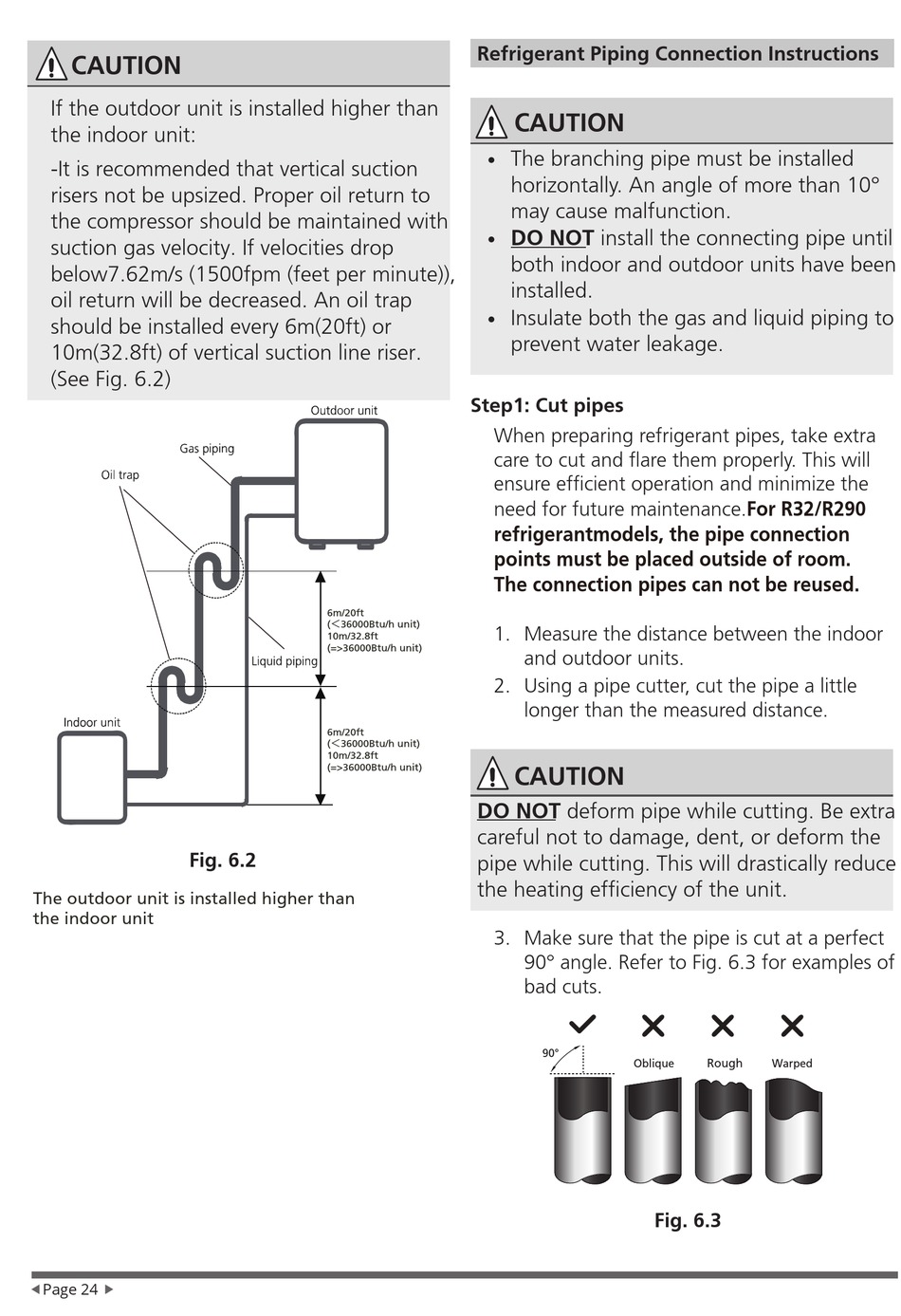

Refrigerant Piping Connection Instructions - INVENTOR LV6CI-12WiFiR Installationshandbuch

CAUTION
If the outdoor unit is installed higher than
the indoor unit:
-It is recommended that vertical suction
risers not be upsized. Proper oil return to
the compressor should be maintained with
suction gas velocity. If velocities drop
below7.62m/s (1500fpm (feet per minute)),
oil return will be decreased. An oil trap
should be installed every 6m(20ft) or
10m(32.8ft) of vertical suction line riser.
(See Fig. 6.2)
Fig. 6.2
The outdoor unit is installed higher than
the indoor unit
ƒPage 24
„
 Page 20 

Refrigerant Piping Connection Instructions

•
•
•
Step1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and flare them properly. This will
ensure efficient operation and minimize the
need for future maintenance.
refrigerantmodels, the pipe connection
points must be placed outside of room.
The connection pipes can not be reused.
6m/20ft
(＜36000Btu/h unit)
1. Measure the distance between the indoor
10m/32.8ft
(=>36000Btu/h unit)
2. Using a pipe cutter, cut the pipe a little
6m/20ft
(＜36000Btu/h unit)
10m/32.8ft
(=>36000Btu/h unit)
DO NOT deform pipe while cutting. Be extra
careful not to damage, dent, or deform the
pipe while cutting. This will drastically reduce
the heating efficiency of the unit.
3. Make sure that the pipe is cut at a perfect
CAUTION
The branching pipe must be installed
horizontally. An angle of more than 10°
may cause malfunction.
DO NOT install the connecting pipe until
both indoor and outdoor units have been
installed.
Insulate both the gas and liquid piping to
prevent water leakage.
and outdoor units.
longer than the measured distance.
CAUTION
90° angle. Refer to Fig. 6.3 for examples of
bad cuts.
90°
Oblique
Fig. 6.3
For R32/R290
Rough Warped
