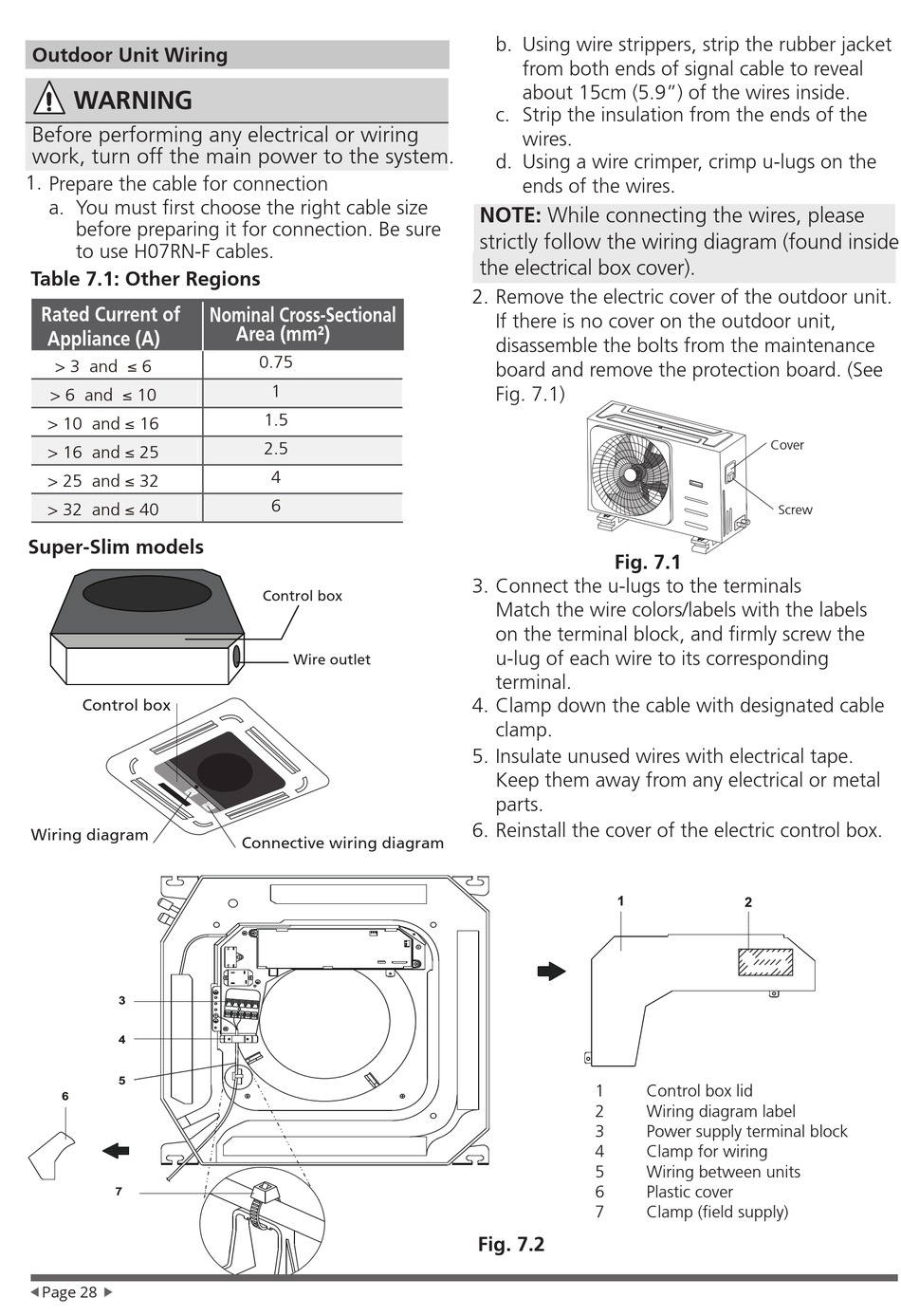

Outdoor Unit Wiring

WARNING
Before performing any electrical or wiring
work, turn off the main power to the system.
1. Prepare the cable for connection
a. You must first choose the right cable size
before preparing it for connection. Be sure
to use H07RN-F cables.
Table 7.1: Other Regions
Rated Current of
Appliance (A)
> 3 and ≤ 6
> 6 and ≤ 10
> 10 and ≤ 16
> 16 and ≤ 25
> 25 and ≤ 32
> 32 and ≤ 40
Super-Slim models
Control box
Wiring diagram
ƒPage 28
„
 Page 24 
Nominal Cross-Sectional
Area (mm²)
0.75
1
1.5
2.5
4
6
Control box
Wire outlet
Connective wiring diagram
b. Using wire strippers, strip the rubber jacket
from both ends of signal cable to reveal
about 15cm (5.9") of the wires inside.
c. Strip the insulation from the ends of the
wires.
d. Using a wire crimper, crimp u-lugs on the
ends of the wires.
NOTE: While connecting the wires, please
strictly follow the wiring diagram (found inside
the electrical box cover).
2. Remove the electric cover of the outdoor unit.
If there is no cover on the outdoor unit,
disassemble the bolts from the maintenance
board and remove the protection board. (See
Fig. 7.1)
Fig. 7.1
3. Connect the u-lugs to the terminals
Match the wire colors/labels with the labels
on the terminal block, and rmly screw the
u-lug of each wire to its corresponding
terminal.
4. Clamp down the cable with designated cable
clamp.
5. Insulate unused wires with electrical tape.
Keep them away from any electrical or metal
parts.
6. Reinstall the cover of the electric control box.
1
2
3
4
5
6
7
Fig. 7.2
Cover
Screw
Control box lid
Wiring diagram label
Power supply terminal block
Clamp for wiring
Wiring between units
Plastic cover
Clamp ( eld supply)
